| Prod Model: |
FY013 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
24VDC/12VDC |
| Load Capacity: |
8000n |
| Max Speed: |
4mm/S |
| Stroke: |
50-1000mm |
| Type Of Duty: |
S2-10min |
| Limit Switches: |
Inner |
| Operation Temperature: |
-26-65 |
| Protection Class: |
IP54 |
| Certification: |
Ce,RoHS,SGS |
Product Description

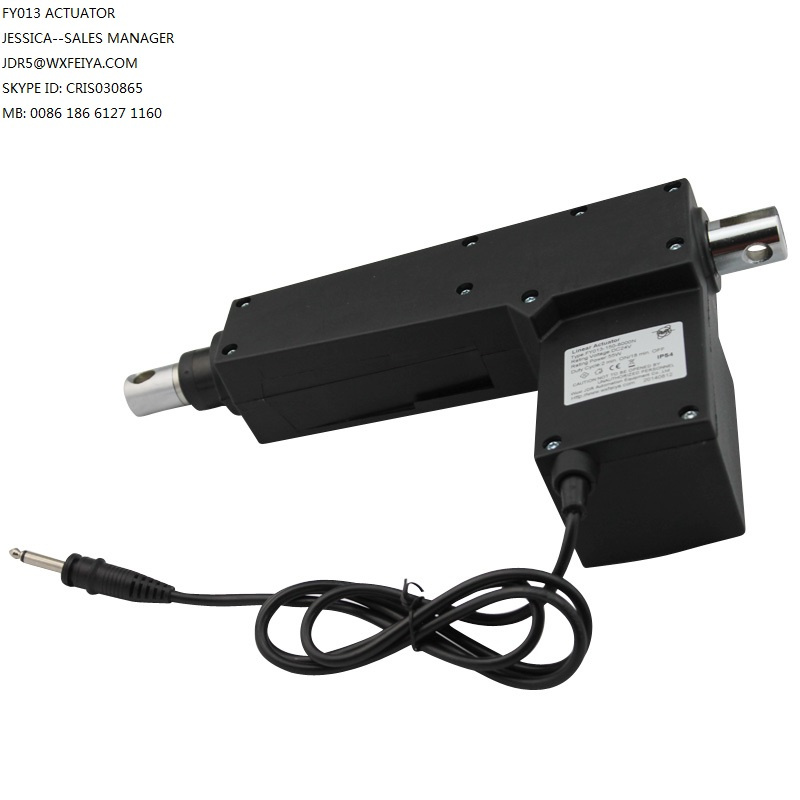

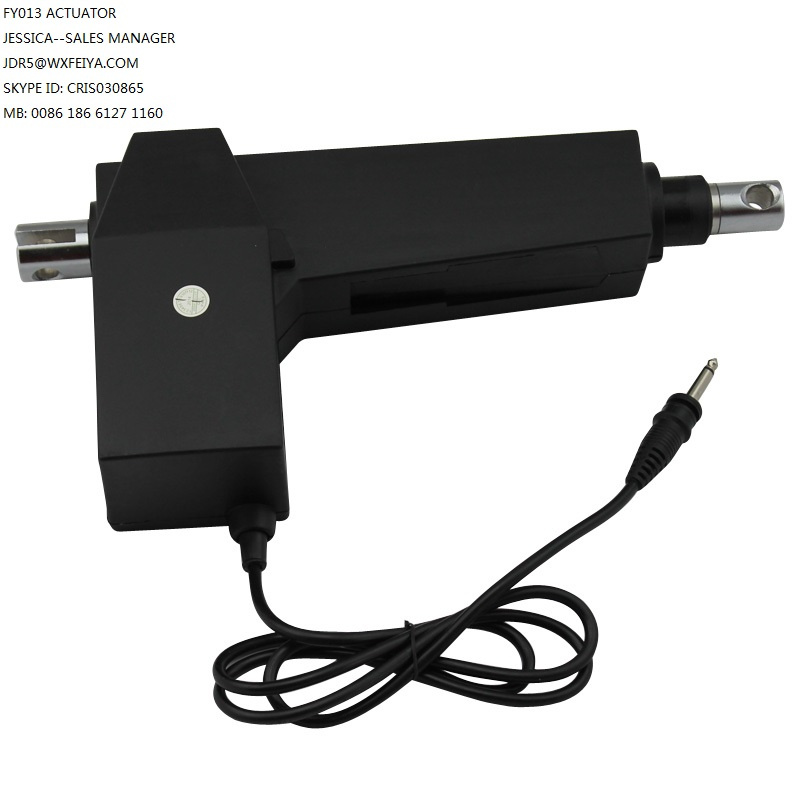

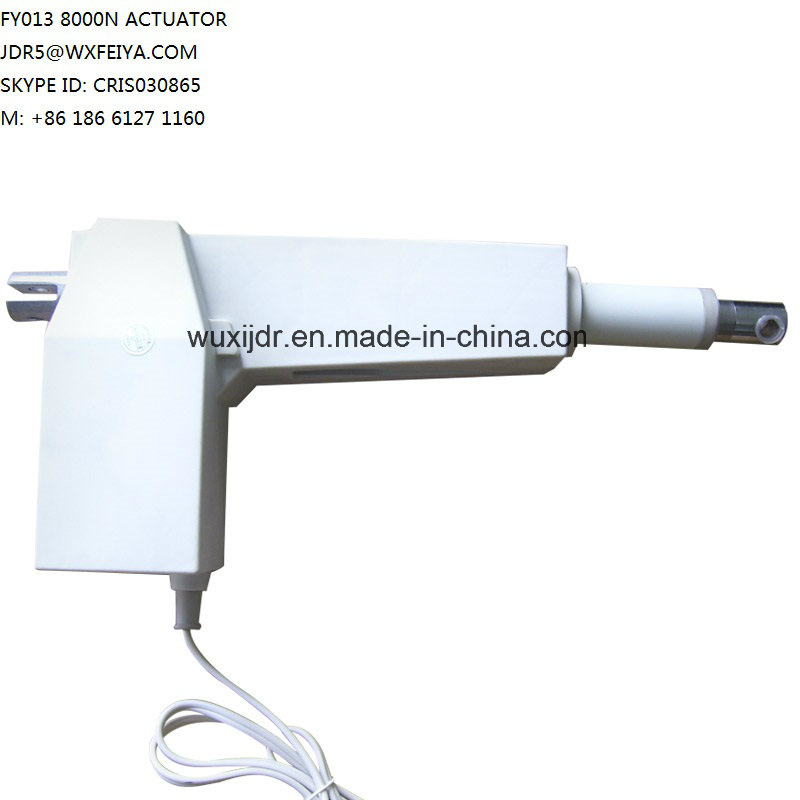

Linear Actuator Systems FY013 Stainless steel 8000N DC 12 or 24v
FY013 Linear Actuator is a quality product . By advantage of its suitable size and powerful comprehnsive funtion , it is popular in furniture ,medical equipmet, office and so on .
Products Specifications :
1) 24VDC/12VDC permanent magnet motor
2) Thrust up to 80000N in push , and up to 4000 N in pull
3) Elegant and compact design with small instanllation dimensions
4) Built-in limit switches ( not adjustable after leaving factory )
5) Stainless steel outer tube / inner tube
6) Steel back fixture
7) Standard protection class
8) Noise level < 50 db
9) Warranty : Two years
10) Duty cycle : 10%, or 2 munutes continous working followed by 18 minutes not in use
Technical specifications of FY013 Trailer Linear Actuator:
Model No.: FY013
Stroke: 50-1000mm
Installation dimension: stroke+175mm
Load capacity: 750N,1500N,4000N, 6000N,8000N
Free load speed: 8, 4mm/s
Input voltage: 24V DC / 12V DC
Limit switch: inner
Protection grade: IP54
Type of duty: S2-10min
Operation temperature: -26~65 centigrade
Features:
Material: Stailess steel
Color: black
Warranty: two years
Certification: CE/EMC+LVD
| Name: | Linear Actuator |
| Model: | FY013 |
| Usage: | Electric Nursing Bed, Electric Hospital Bed, Personal Care Bed, other Application use |
| Input Voltage: | 24v DC |
| Load Capacity: | 6000N, 8000N |
| Free Load Speed: | 4mm/s, 3mm/s |
| Standard Stroke: | 50 mm --- 1000mm (Optional) |
| Installation Dimension: | S + 175mm |
| Type of Duty: | S2 -- 10 min (2 minutes work, 18 minutes rest) |
| Limit Switch: | Builtin / Inner (can not be adjust after left factory) |
| Work Temp.: | -26 to 65 centigrade |
| Protection Grade: | IP54 |
| Certificate: | CE / EMC + LVD, RoHS |

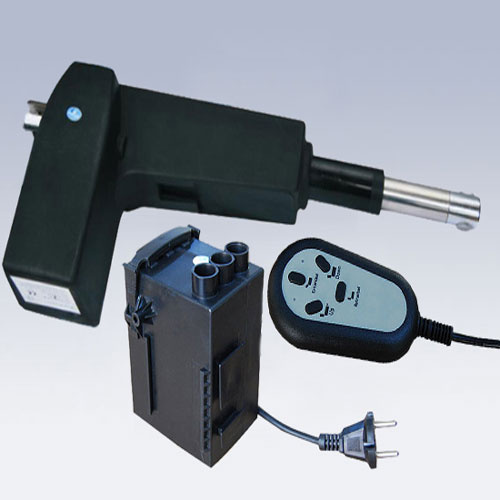

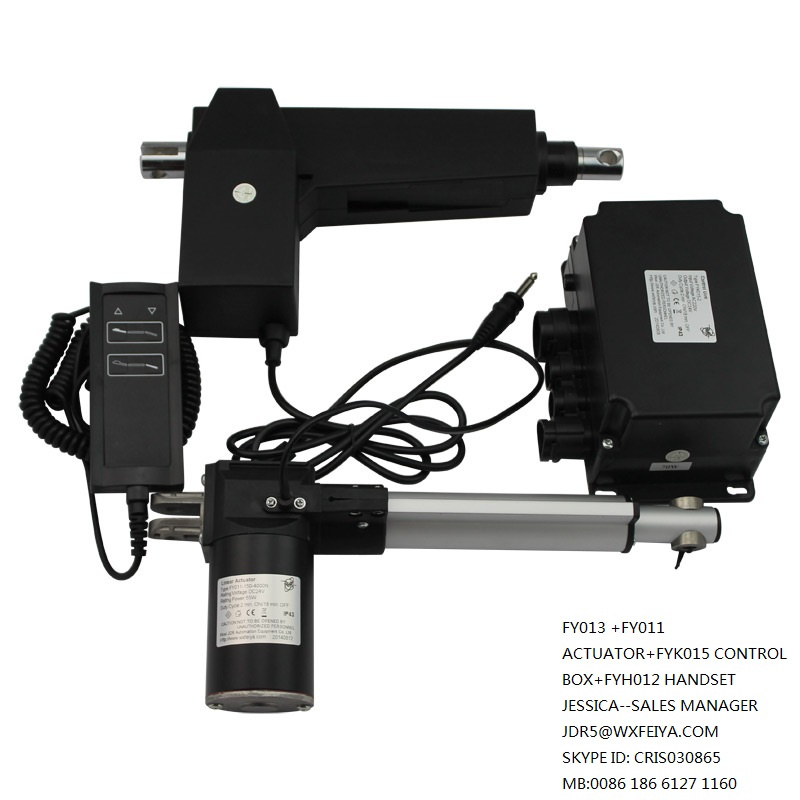

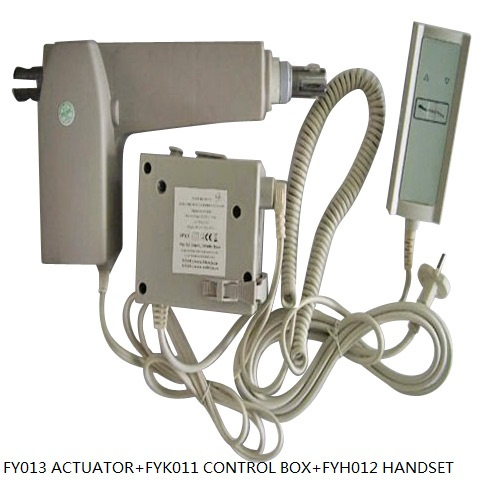

| Control Box Used: | Control 1 Linear Actuator: FYK011-1, FYK012-1, FYK015-1, FYK016-1, FYK017A |
| Control 2 Linear Actuators: FYK011-2, FYK012-2, FYK015-2, FYK016-2 |
| Control 3 Linear Actuators: FYK011-3, FYK012-3, FYK016-3 |
| Control 4 Linear Actuators: FYK012-4, FYK016-4 |
| Control 5 Linear Actuators: FYK012-5, FYK016-5 |
| Control 6 Linear Actuators: FYK016-6 |
| Handset Used: | All FYH Series Handset, Pls contact us for detail pictures. |
Wuxi JDR Automation Equipment Co., Ltd, established in 2008, . Is a professional manufacturer and trading unit integrating the research, production and marketing of DC linear actuator. JDR's predecessor is Wuxi Feiya Electronical Equipment Co., Ltd, which was established in 2004.
Our company owns several automatic production lines and enough experience in the production and research of linear actuators and controllers. Our products are popularized in many occasions when need to be implemented with rectilinear motion such as electrical nursing beds, operational beds, traction beds, massage chairs, dental chairs, electrical sofas and show-cases. These products can adjust heights, move between front and behind, as well as angle change, which take the place of gas springs as well as AC decelerators.
Dreams drive science, technology creates life. Based on domestic market and aiming at overseas market, JDR has gradually started to establish perfect marketing net both at home and abroad.
"Quality First, Customer Paramount" is our established guidelines. "Based on honesty, providing high quality products and innovative service, striving after perfection" is our management concept.
With over 80 people's efforts, JDR is becoming better and better. We have sound management system and very low stuff turnover, and every department cooperate greatly.
Now, we have successful foreign trading experience in South Europe, West Europe, North Europe, North America, South America, Middle East and Southeast Asia.
We, Wuxi JDR, sincerely welcome your advices, suggestions and inquiries.
