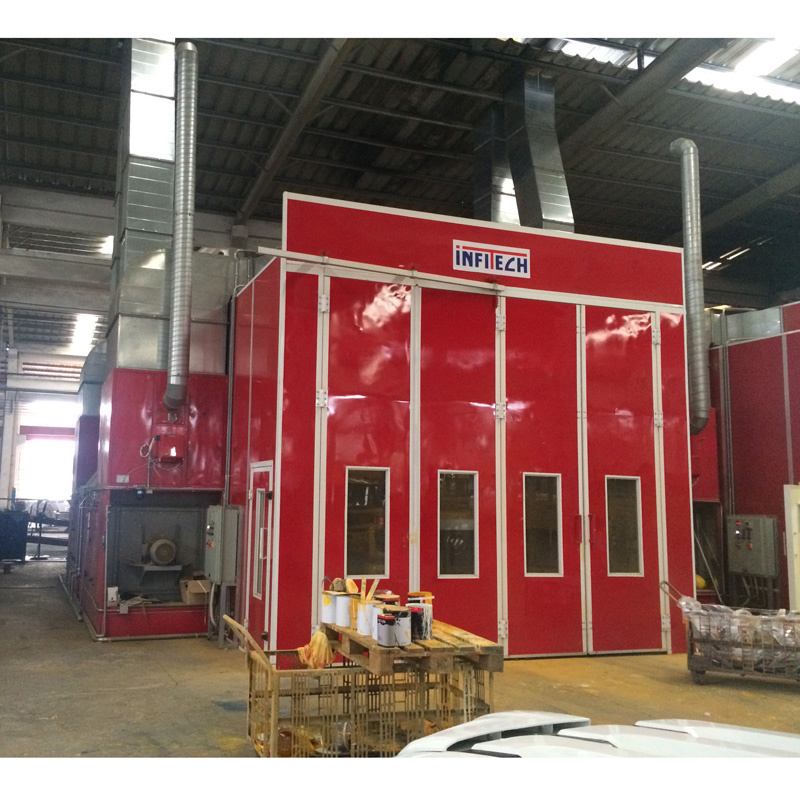

Custom-Made Truck Cabinet Spray Booth
| Price: |
US $ 53500/Set |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
Non-standard customization |
| Optional Colour: |
White, Blue, Orange and Red |
| Heating Exchange Capacity: |
232kw |
| Total Fan Capacity: |
70000m3/H |
| Brightness: |
>1500 Lux |
| Empty Loaded: |
+/- 0.32m |
| Service Time: |
Lifelong Maintenance |
| Motor Brand: |
Siemens |
| Light: |
Explosion-Proof |
| Air Exhaust: |
Optional |
| Voltage: |
380V/400V/415V, Your Special Voltages Are Accepted |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Infitech |
Product Description
Bus and Truck Paint Oven with High Quality
Certification: CE
Management Certification: ISO9001: 2000
Warranty Time: 2 Years
Parameter: | Airflow | Internal Size(mm) | External Size(mm) | Heating Modes | Inlet/Exhaust fan | Ceiling Lights | LED Side lights | Empty Loaded
Air Speed |
| Full downdraft | 13000X5000X4000 | 13160x6960x4660 | Oil | 4X11KW | 18 set/3X36W
IP65 | 22 set/2X36W
IP65 | 0.3 m/s |
Airflow
1.Downdraft for spray .
2.Innovative high efficient big impeller fan ,sparkproof design .
Entrance door
1.3+1structure, 4 observation windows with armoured glass 4300×3800 mm (W×H).
2.Safe door,observation windows with armoured glass,emergencylamp,door closer .
Cabin structure
1.Full grids, 900kg/ wheel.
2.75mm heat-resistant rock wood panel,base plate thickness:0.6mm.
3.600mmheight plenum chamber.
4.European bulge roof design.
Heating system
1.232KW high efficient , energy-saving heating exchanger
2.Cabin pressure self-adjusting
3.Double protection with over temperature
Control system
1.Invert energy saving system.
2.Water-based paint high efficient model

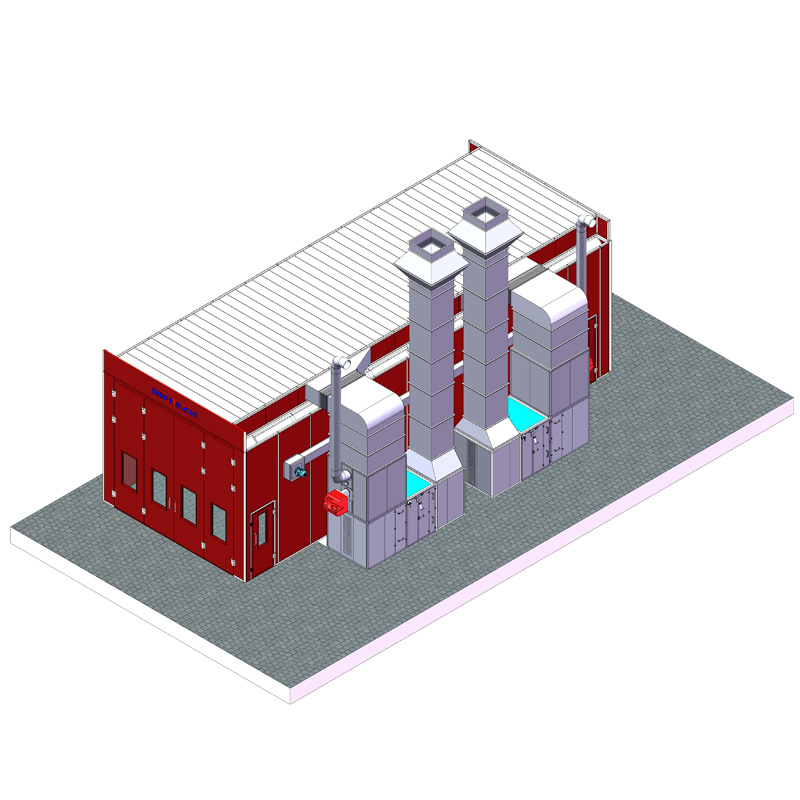

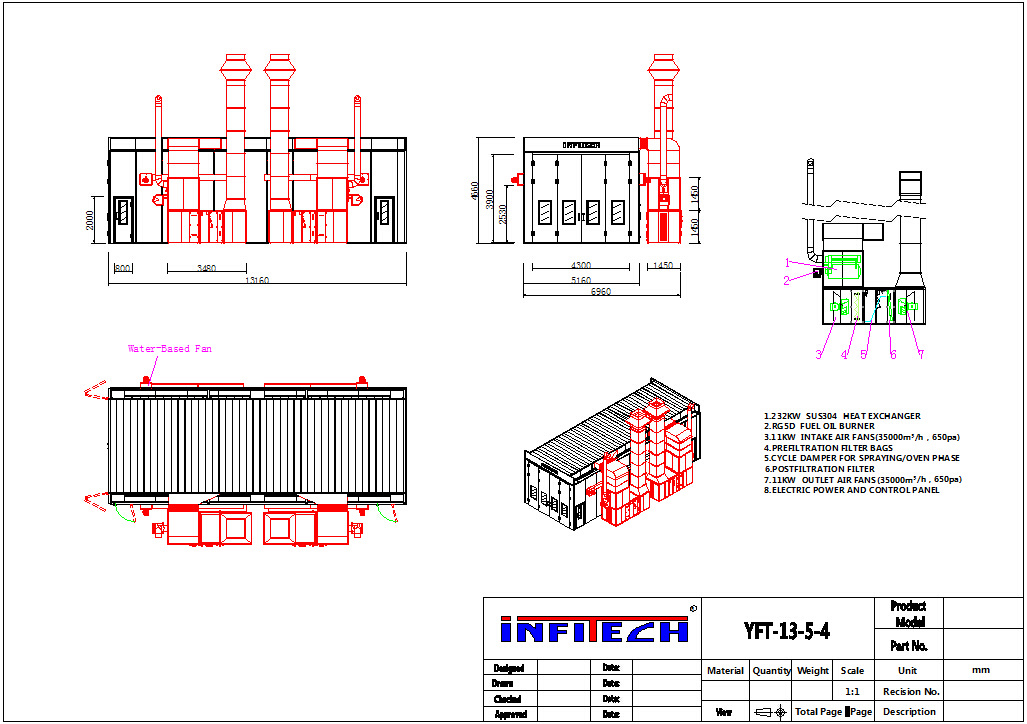

3.Painting, warm painting, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication. Design sketch

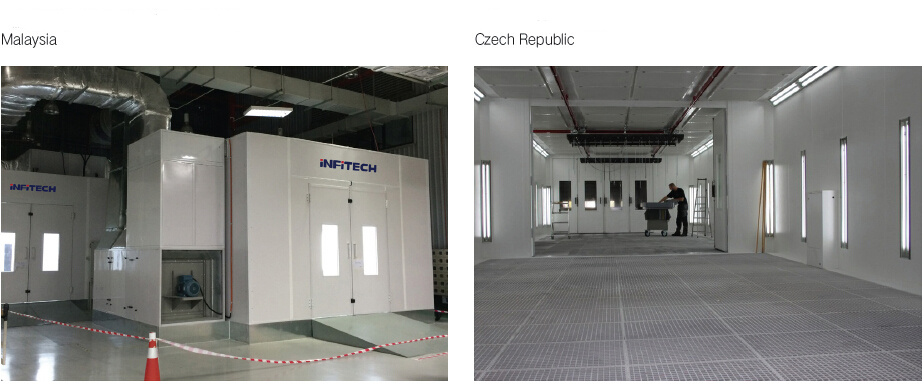

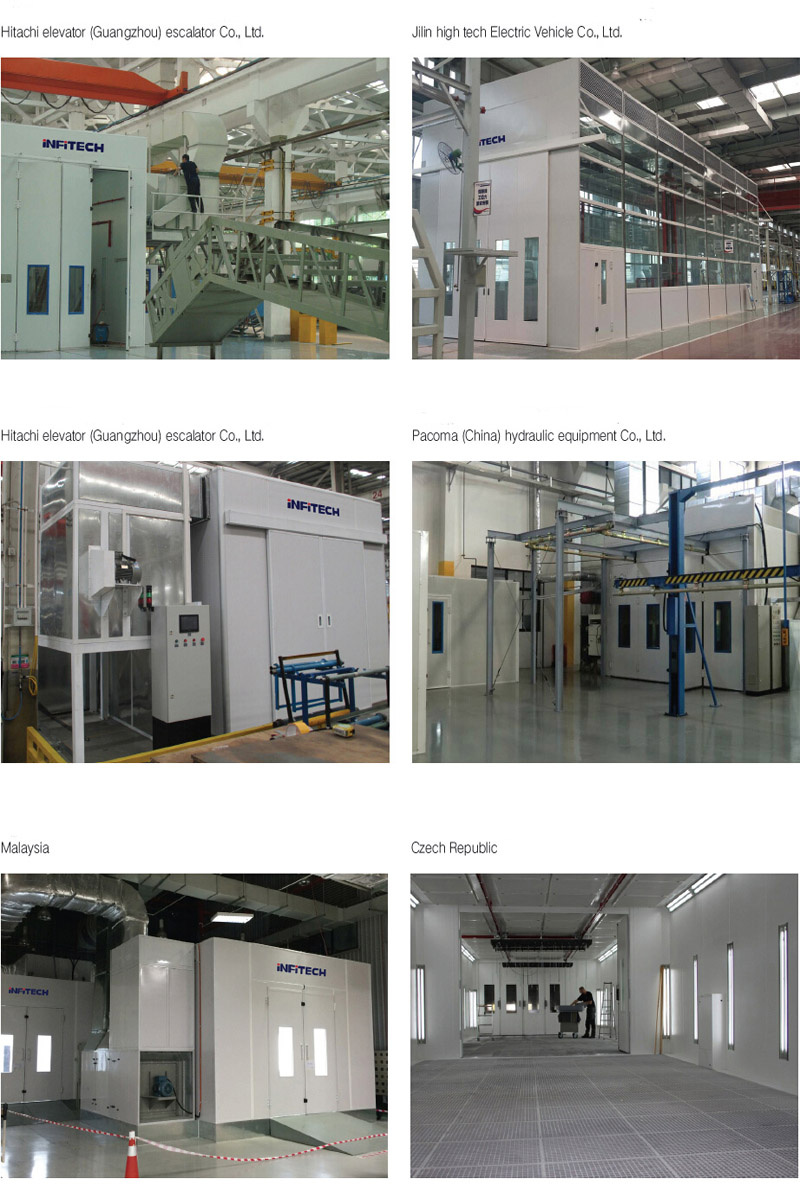

Successful stories
Why Choose Us
1.More than 10-year experience in Spray booth and car lift field.
2.Superb unique technology and Automatic production line.
3.Large order can be placed.
4.Advanced equipment and exquisite workmanship.
5.Durable and reliable.
6.Excellent pre-sales and after-sales service.Company Information
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. is a focus on industrial coating equipment research and development, design, manufacturing, technical consulting, sales, installation of high and new technology enterprise. We have a professional and experienced technical team, perennial exchanges and cooperation with design institutes, universities, undertake pretreatment, sandblasting, electrophoresis equipment; Grinding, drying equipment, dust removal, paint on the surface andDust-free spray and automatic spraying production line.
Products used in cars, buses, trucks, special automobile and auto parts production, elevator manufacturing, locomotives, construction machinery, military industry, machine tool, plastic spraying, and many other industries. Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. Adhering to the "continuous learning, continuous innovation, the pursuit of excellence, Shared success" business philosophy, to comply with the needs of modern industry of coating equipment products, carefully committed to the new technology, new material, the use of new technology, research and development and innovation, to ensure that provide customers with competitive solutions and high quality service.
