| Prod Model: |
ZJT-14041 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Raw Materials: |
Ceramics, The Slag |
| Quality Class: |
AAA Grade (Excellent) |
| Water Permeability: |
More Than 20mm/S |
| Inspection Standard: |
GB/T3810.11 & Internation Standard |
| Anti-Skid: |
65-85 Bpn |
| Resistance To Thermal Shock: |
Eligible |
| Resistance To Pollution: |
Eligible |
| Funtion: |
Non-Slip, Heat Insulation, Firebrick etc. |
| Sample Available: |
Yes |
| Service: |
Best After-Service |
| Type: |
Water Permeable Brick |
| Compressive Strength: |
MU30 |
| Refractoriness (℃): |
1770< Refractoriness< 2000 |
| Certification: |
CE, ISO9001, ISO14001, SGS |
| Feature: |
Heat Insulation, Solar LED, Firebrick, Non-Slip, Good Water Permeability, Acid Resistance |
| Material: |
Ceramic |
| Style: |
Natural |
| Usage: |
Floor |
| Color: |
Multicolor |
Product Description

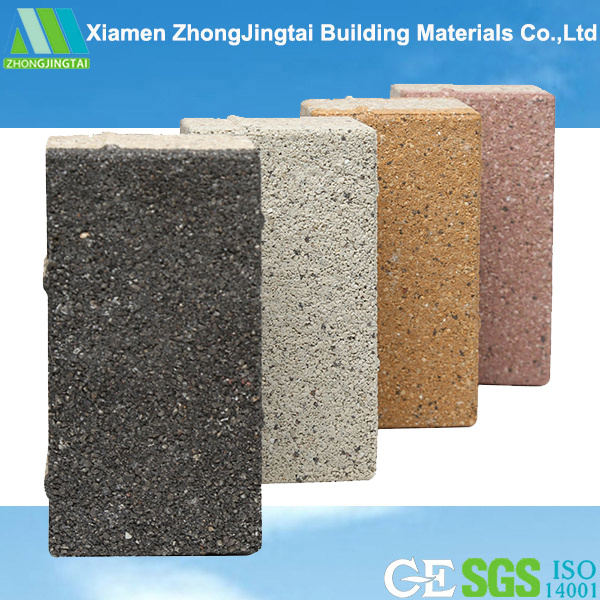

Paving Brick, Water Permeable Brick
1 ZJT Paving Brick Materials
1) The slag waste
2) The waste ceramics
This product uses the slag waste, waste ceramics as raw material. After two times of material molding, high temperature sintering, the environmental product is produced with characteristics of keeping the ground water permeability, preserving moisture, compression-resistant, slip-proof, high strength, cold resistance, weather resistance, noise reduction, sound absorption and reusability. ZJT ecological water permeable ceramic brick is the preferred product used to beautify the city, improve the quality of living environment.
2 ZJT Paving Brick Sizes and Colors
1) 300*300*55mm (50mm, 40mm, 30mm)
2) 150*300*55mm (50mm, 40mm, 30mm)
3) 200*200*55mm (50mm, 40mm, 30mm)
4) 200*100*55mm (50mm, 40mm, 30mm)
5) Brown, Pink, Yellow, Black, Grey, White
The sizes and colors also could be as per customers' requirements.
3 The Application of ZJT Paving Brick
1) City road
2) The parks road
3) Side walk
4) Residential quarters
5) Landscape
6) Garden decoration
7) Swimming pool
8) The plaza
9) The public Toliet
10) Subway
11) Station
12) Kitchen space
13) Villas
4 Advantages of ZJT Paving Brick
1) Good water permeability
Our brick has super high permeability function, more than 20mm/s which is two times of the standards of similar foreign products. It can handle 60mm/h rainfall, and the road and squares paved with it can make rainwater quickly penetrate down to prevent the occurrenced of city flood.
2) Water retention
When it rains, it absorbs and preserves moisture. It the sun, it can let the water slowly evaporate, so as to reduce the surface temperature, so that the vegetation is well watered and grow more lushly.
3) Skid resistance
Our brick has high skid resistance, because the rain water seeps into the ground, so there is no water. It keeps the ground clean, so walking on it causes no danger.
4) Noise reduction
The porous structure of our bricks can absorb a large amount of noise. It is the ideal sound-absorbing materials, which can not be done by other similar products.
5) Repeated use
If you use our bricks for pavement, because of the characteristics of product in the design, it can be used repeatedly, reducing waste in construction of city and the waste of various resources, and produce good economic benefit and social benefit.
6) Compression-resistant, Cold-resistant and Weathering-resistant
Because our brick is made by large tonnage press and high temperature firing. The compressive strength is >50MPa, suitable for use in the parking lots, common lanes. Its cold-resistance also reached the national standard, and frost resistance value is -25ºC. Even in colder places, the product quality will not change. In addition, our bricks are also resistant to weathering, even in the face of strong acid or alkali. Its quality will not change, and it is most suitable for seaport wharf.
5 About us
Xiamen Zhongjingtai Building Materials Co., Ltd is a large high-tech enterprise integrating scientific research, development, production and is currently the largest professional company in production, research and development of ecological water permeable ceramic bricks. ZJT ecological water permeable ceramic brick is developed by our company to solve the "Urban heat island effect" and increase surface hardening, to prevent city waterlogging and create high-quality natural environment as well as maintain ecological balance of the city.
6. Contact Us
Dear friend, if you are interested in our paving brick and any problem pls feel free to contact us, mail me or call +86-592-5216902, i will try my best to support you, thank you very much.
Contact Person: LycheeHu
Mobile Phone:8615080319173
| Test Data Sheet of Water Permeable Bricks |
| Items of test | Product performance |
| Water absorption rate(%) | Mean value≤0.5 |
| Water permeability(mm/s) | Mean value≥20 |
| Rupture modulus(Mpa) | Mean value≥35, single value≥32 |
| Anti-skid(BPN) | Mean value 65-85 |
| Frost resistance(c) | Mean value≥(-25) |
| Breaking strength(N) | Thickness≥7.5mm, mean value≥1300N |
| Side length deviation(%) | ±0.6 |
| Thickness deviation(%) | ±5 |
| Central curvature(%) | ±0.2 |
| Side straightness(%) | ±0.3 |
| RIGHT ANGLE | ±0.3 |
| SURFACE FLATNESS(%) | ±0.15 |
| SURFACE QUALITY | No visible defects judging from the point where is 80cm distance upright the tile |
| Wearing capacity(mm) | ≤140 |
| Resistance to thermal shock | Eligible |
| Resistance to clazing | Eligible |
| Resistance to pollution | Eligible |
| RESISTANCE TO HOUSEHOLD CHEMICAL REAGENT | Eligible |
| RESISTANCE TO SWIMMING POOL ALKALI | Eligible |
