| Prod Model: |
JZT2621A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tilting Air Flotation Table: |
Assembly Table |
| Manual Glass Cutting Table: |
Laminated Glass Cutting Table |
| Type: |
Glass Loading Machine |
| Certification: |
ISO |
| Control System: |
PLC |
Product Description

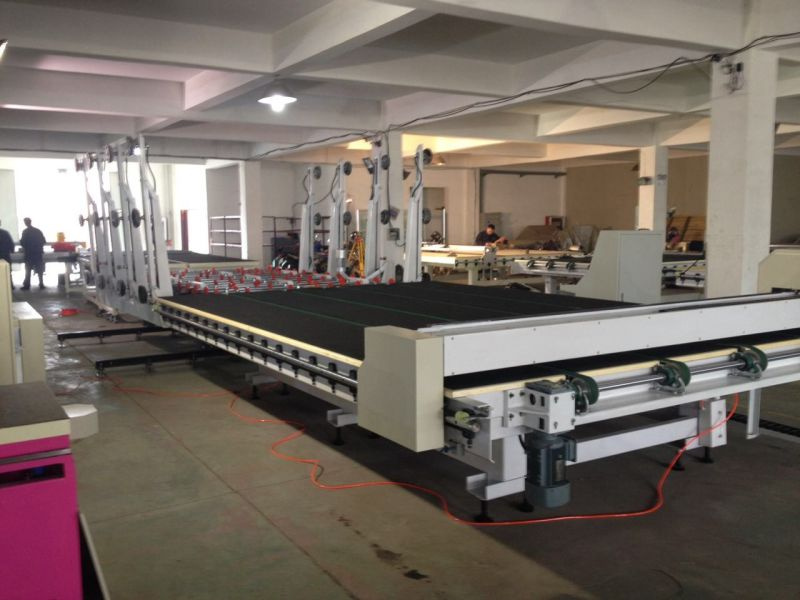

Automatic Glass Breaking Table- Automatic Float Glass Cutting TAble
Features
The glass tilting table is composed of air flotation table, "+" straight rod, air blower, air cylinder, hydraulic pressure station, electric cabinet, foot switch, etc. So it can tilt to pick up glass sheets from vertical position to horizontal position. On the working table, we can cut glass into pieces by hands. When splitting, put the cutting score of glass onto the middle part of the straight rod of the table, and close the air cushion, step the foot pedal down. The straight rod will be pushed upwards by the cylinder to break out the glass instantaneously. The table can break out glass in many positions, reducing the intensity of labor.
The machine has the function of Glass Loading, Glass Breaking, Glass Tilting.
Technique Parameter
Power supply: 380V 50Hz 3phase(adjustable)
Power rate: 4.5kw
Air Blower: 2PCS
Foot switch: 2PCS
Hydraulic Pressure Station: 1PC
Overall dimension: 1940*2550*760mm
Guarantee & Aftersales service
1. Guarantee the complete machine for one year, except the consumable parts.
2.24hour technical support by email or calling.
3. User-friendly English manual for machine using and maintaining.
Remarks
1. Pkg: Each PC In Wooden Cases
2. Terms: Freight On Board (FOB, Qingdao Port
3. From Qingdao, China To_______,
4. Delivery Time: During 30 Days After We Receive Your First Payment
5. Payment: Telex Transfer (T/T), 30% Be Paid After Confirming The Order and the rest 70% is effected while delivering the goods
6. Our Trademark: SUNNY
