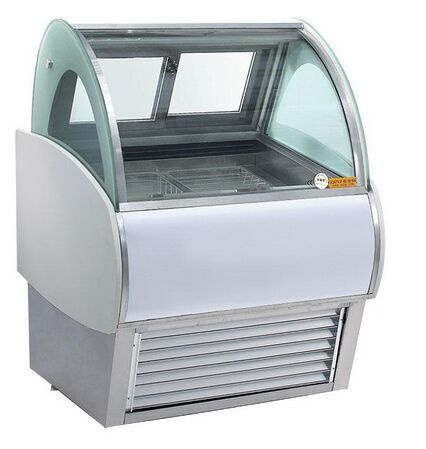

Cote d'Ivoire Ice Cream Display Cabinet B1
| Price: |
US $ 3180/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
XSFLG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Electricity: |
Must Need |
| Suit For: |
Ice Cream and Popsicle |
| Color And Logo: |
Can Be Customized |
| Back Door: |
Can Be Chosen |
| Compressor: |
Danfoss and Tecumseh |
| Gelato Tubs: |
Can Be Chosen |
| Certificate: |
Ce |
| Warranty: |
1 Year |
| Application: |
Popsicle |
| Customized: |
Customized |
Product Description
Feature:
*Double duct , make the ice cream more uniform
*Tested at +35° C in 70% relative humidity
*Temperature can be customized to -20~-24, -24~-28 degree/Temperature *Difference: About 4 degree
*Outer material: Stainless steel: #304/Inner material: Stainless steel: #304
*Automatically and quickly defrost by hot gas-Low noise level
*Insulation in polyurethane thickness 60 mm, guaranteeing minimal dispersion and greatly reduced running costs
*Tempered curved glass with defogging heating wires
*Climate Type: Ventilated/Air-cooling
Special "no frost" cooling system with forced-air ventilation provides a more stable and constant temperature, maintaining longer life & better tasting ice-creams.
Superior cabinets with raised container levels to ensure an "eye catching" product display. | Model | Dimension (L*W*H) | Temp. | Power Source | Power | Pans
(pcs) | Packing Dim. |
| B1-12 | 125x98x135 | -15~-20 | 220V /50Hz (specially made 220/60 and 110/60) | 700 | 6x2 | 136x129x164 |
| B1-14 | 150x98x135 | 900 | 7x2 | 166x129x164 |
| B1-16 | 165x98x135 | 1600 | 8x2 | 196x129x164 |
| B1-18 | 180x98x135 | 1800 | 9x2 | 216x129x164 |
Caution
1, enclosure ambient temperature should be lower than 32 ºC, is not subject to direct sun, or placed in between the use of oven.
2, cabinet space for at least leave behind more than 100MM are conducive to a well-ventilated cold suspect device in order to protect the device cooling effect.
3, freezer off and then start the wait for more than 2 minutes.
4, freezer defrost by the relay settings, freezer will defrost on their own to stop running into the state, the end defrost freezer cooling automatically run.
5, Food should not be placed too close to a vent, goods should be placed to retain the gap, so as not to affect the cold cycle.
Safety Precautions
1, do not direct the water splashed in the cupboard, or may cause short-circuit, an electric shock.
2, prohibits flammable, volatile materials on the cabinet, otherwise, might cause an explosion, fire and other accidents.
3, cut off the power plug must be hand-held wire and cable plugs to the front, pulling the core wire and pull wire may result in broken wires caused by fever, catch fire.
4, for storage when the first copy of their packaging, in order to maintain the freshness of food, or easy to make the quality of stored items dropped.
5, power supply, use the special socket, do not half-way to connect the power cord or use extension cords, and multiple sets of wiring, or may lead to electric shock, fever, fire and other accidents.
6, cleaning and removal of filters, do not touch the cold hand of suspected equipment directly to the fin, or may lead to cuts, burns.
7 to prohibit the fingers, insert the rod-like air-conditioner exports of goods, otherwise they will because the internal fan to adjust the rotation of causing bodily harm, and other incidents.
8, maintenance and inspection points, we must cut off the power supply circuit, or easily cause electrical shock or damage fan, and if the injury caused by heater
Equipment maintenance
1, Please do not pile up near the freezer items,
2, For 24 Hours using : Every 5 to 7 Days ,you may must stop the ice cream showcase for one night at least. Otherwise the refrigeration system will easily broken.
3, cold-suspect device after the filter to pull out of the regular cleaning, wash water radiators once a month to maintain a good cooling condition. (Note: To turn off the power flush, do not the water will to the electrical components in order to avoid electric shock accident.
4, frequently check the power socket is intact and, if charred black phenomenon should not be replaced immediately in order to avoid damage to electrical components due to poor contact
5, cabinet often use a neutral detergent scrub scrub reuse of water and finally dry with a clean rag. So as to avoid smelly cupboard.
6, cooling accessories and automation components, do not arbitrarily adjust and remove.
Common Faults and Maintenance
1, heat bad: too much dust and the ambient temperature is too high, clean radiator to maintain a well-ventilated.
2, cold-row ice: A, temperature adjustment is too low, re-transferred to 5 ºC stop; B, defrost cycle, incorrectly adjusted, re-transfer 2 hours of time; C, the lack of refrigerant, refrigerant, and check to increase leakage; D, stop when you pull the plug on cold-water wash row, so that complete melting of the ice
3, the upper temperatures are high: wind trough ahead will not be inclined to spend big cold wind blowing straight up, leveling air duct.
4, the compressor does not run: A, voltage at the end on 190V, strengthening the regulator to 220V; B, a bad start capacitor and the starter, replacement start capacitor and the starter; C, thermostat bad, replace the thermostat. D, compressor bad, replace the compressor.
5, lamp does not shine: A, check whether the loose tube 2; B, tube bad starter bad or a bad ballast replacement; C, voltage is lower than 180V, installed temperature and pressure device to 220V.
6, equipment glitch in the deal under the guidance of professionals, big trouble should the company's warranty, thank you!
Our company focus on ice cream equipment 10 years since 2003! We've our own factory as "XSFLG"!
Started from a small factory with only Gelato cases & cake display in Foshan city since 2003, XSFLG refrigeration equipment factory has now became a leading manufacturer in this field. During those years, we focus on innovating and designing new products with top-quality at competitive price, thus we have built good reputation all over the world. Up to now, most of our products have been exported to Asia, North America, Europe, Africa, Middle East, etc.
XSFLG specializes in providing high-quality refrigeration equipment, such as Gelato ice cream machine, cake/chocolate display case., gelato ice cream showcase, gelato ice cream pasteurize machines, gelato ice cream blast freezer, soft ice cream machine, commercial super market& kitchen equipments. You can contact us any time if you have any inquiry, we are looking for good and qualified local agents, it is our goal and great pleasure to have a win-win cooperation with you. As we believe our success rely on your success, so we will devote ourselves to supporting you with all my best. XSFLG has now built good reputation for excellent partnership with all our existing clients.
We consider quality and after-sales service as the enterprise life, thus we have a strict quality control system, now we have got CE for Europe and 3C for domestic China. Welcome to our factory to check and look forward to cooperating with you in near future.
