Continuous Fluid Bed Drying for Small Block Material, Animal Food
| Price: |
US $ 10000-200000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Material: |
SUS304/SUS316/Q235 |
| Usage: |
Salt,Granule,Small Block Material,Animal Food,Comp |
Product Description

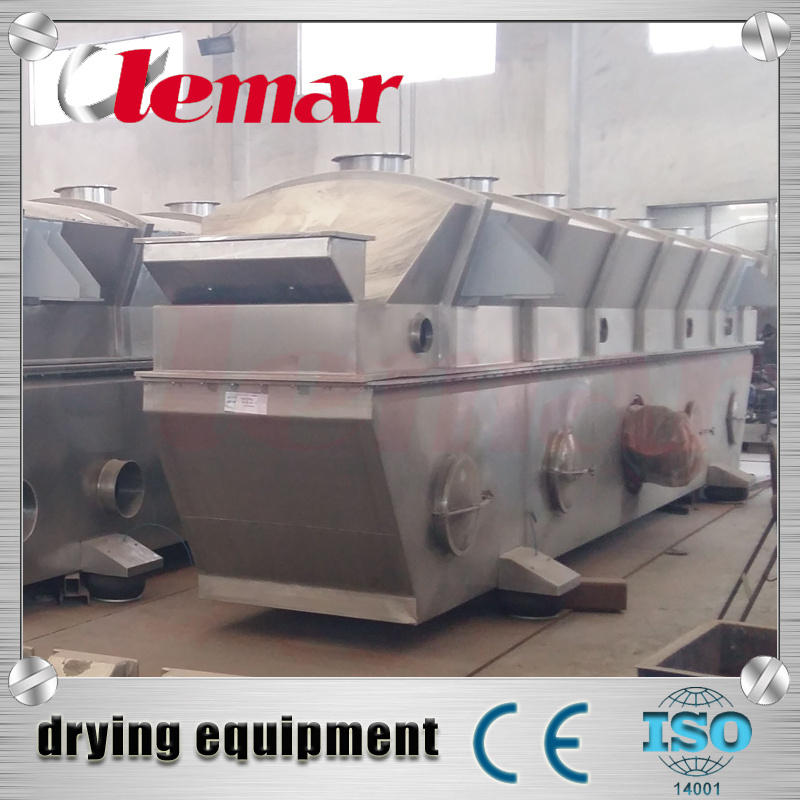

ZLG Vibrating Fluid Bed DryerI. Features of ZLG Vibrating Fluid Bed Dryer Quick-open structure will be adopted in it, the upper bed can be moved easily and it is convenient for cleaning.The bed board was made with laser punching technology, it effectively avoid deformation by common punching technology.The lower bed is supported by stainless steel seamless tube. It's more strong. Raw material is heated evenly and heat exchange is fully used and dry capacity is high. Compared with ordinary dryer ,the energy can be saved about 30%.The vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long life.
The fluidized state is stable and no dead angle and phenomenon of broken out.
It is good in regulation and wide in suitability. The thickness and moving speed in the machine and the amplitude change speed of the material can be steeples regulated.
It is small for damaging the surface of raw material. The machine can be used for drying materials that are easy broken. The drying effect can not be affected even materials gave anomalous shape.
It is effective to prevent from cross pollution between raw material and air because the equipment adopts fully closed structure. So that keeps the environment clean.
II. Work principle of ZLG Vibrating Fluid Bed Dryer Raw material is fed into the machine from the inlet and moves forward continuously along with the level of fluidized-bed under the action of vibration. The hot air passes through fluidized-bed and carries out heat exchanging with damp raw material. Then the damp air is exhausted out through cyclone separator and duster, and the dry raw material is discharged through discharge outlet. III. ApplicationFood industry
Milk powder, powdered coffee, instant coffee, cocoa powder, instant soups, tea, gelatines, hazelnuts, almonds, baby foods, coconut flakes etc.
Chemical industry, plastics, pharmaceuticals
Plastics granules (polyamide, polycarbonate, polyethylene etc.), rubber flakes, glass fibers, pharmaceutical intermediates, detergents, salts etc.
Other branches of industry

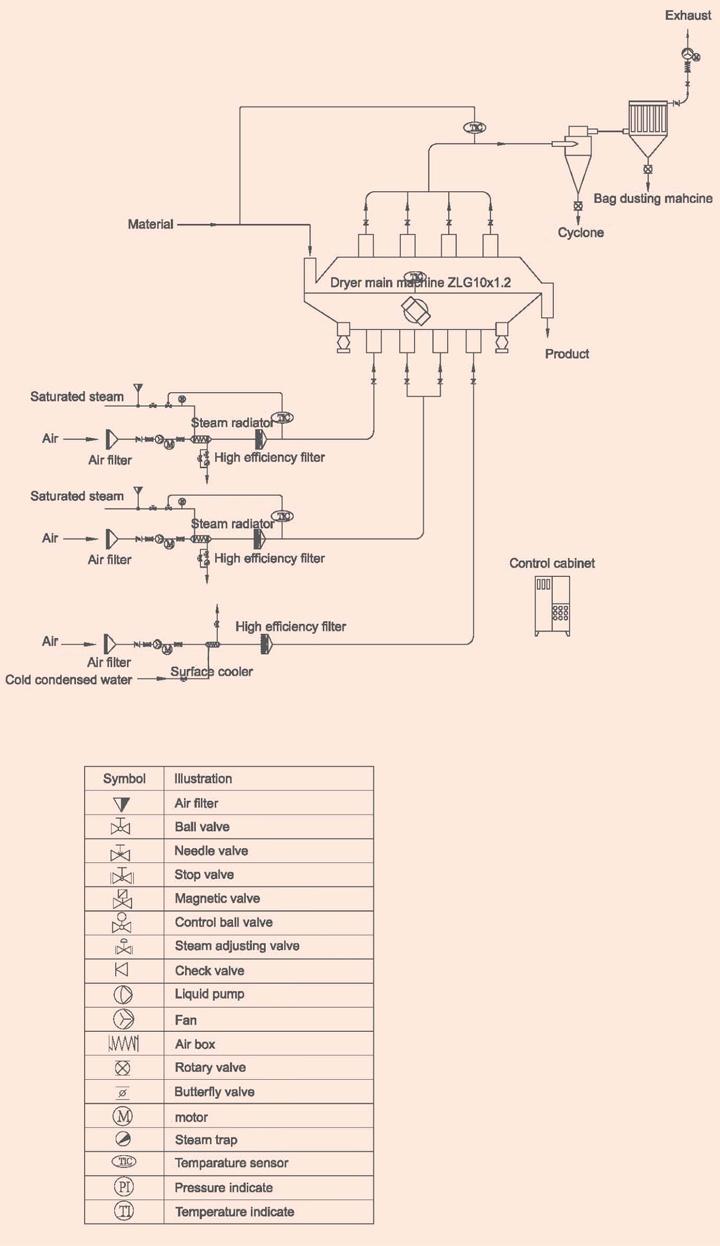

Expanded clay, sands, metal powder, plaster Flow chart
Technical parameters: | Type | Fluidized-bed
(M2) | Inlet air temperature(°C) | Outlet air temperature (°C) | Evaporate capacity
(kg/h) | Vibration motor | |
| Type | Power (kw) | |
| ZLG3×0.30 | 0.9 | 70-140 | 40-70 | 20-35 | ZDS31-6 | 0.8×2 |
| ZLG4.5×0.30 | 1.35 | 70-140 | 40-70 | 35-50 | ZDS31-6 | 0.8×2 | |
| ZLG4.5×0.45 | 2.025 | 70-140 | 40-70 | 50-70 | ZDS32-6 | 1.1×2 |
| ZLG4.5×0.60 | 2.7 | 70-140 | 40-70 | 70-90 | ZDS32-6 | 1.1×2 |
| ZLG6×0.45 | 2.7 | 70-140 | 40-70 | 80-100 | ZDS41-6 | 1.5×2 |
| ZLG6×0.60 | 3.6 | 70-140 | 40-70 | 100-130 | ZDS41-6 | 1.5×2 |
| ZLG6×0.75 | 4.5 | 70-140 | 40-70 | 120-140 | ZDS42-6 | 2.2×2 |
| ZLG6×0.9 | 5.4 | 70-140 | 40-70 | 140-170 | ZDS42-6 | 2.2×2 |
| ZLG7.5×0.6 | 4.5 | 70-140 | 40-70 | 130-150 | ZDS42-6 | 2.2×2 |
| ZLG7.5×0.75 | 5.625 | 70-140 | 40-70 | 150-180 | ZDS51-6 | 3.0×2 |
| ZLG7.5×0.9 | 6.75 | 70-140 | 40-70 | 160-210 | ZDS51-6 | 3.0×2 |
| ZLG7.5×1.2 | 9 | 70-140 | 40-70 | 200-260 | ZDS51 | 3.0×2 |

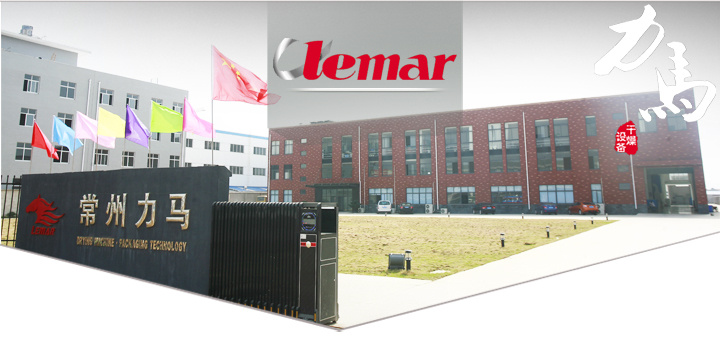

Changzhou Lemar Drying Technology Co., Ltd is located in Zhenglu Industrial Park, Changzhou, Jiangsu, China. It's only 3 kilometers from downtown and it tightly close to east-ring elevated road of Changzhou and Hengshan Exit of Shanghai-Nanjing Expressway. Our company undertakes large-scale drying technical engineering projects, design, manufacture and sale of drying equipments and industrial heat energy research. Now our products cover the field of drying equipments, granulating and coating equipments, crushing and mixing equipments and advantageous field of heat energy intensive device. The annual output for each kind of product reaches 500 sets.
