| Prod Model: |
XF2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Steel Structure |
| Usage: |
Workshop |
| Certification: |
BV |
| Customized: |
Customized |
Product Description
Steel framework
Material: Steel material Q234, thickness: 3.5mm, for top beam frame. Base beam frame and column.
Surface working: Epoxy painting, two bottom and two surface.
Fittings: 8 standard container corner mould fittings PVC standard rainwater pipe
Forklift openings: Size 100*250mm, distance is 1200mm
Floor
External wainscot: Flat galvanized color steel sheet, 0.5mm thickness
Floor structure: Girder made of 3.5mm steel. The purlin is C section steel. Dimension 60x40x1.5mm.
Warm proof Insulation layer: 75mm rock wool
18mm plywood
1.5mm PVC floor leather for living rooms floor;
Ceiling
Construction:
Roof exterior layer: 1.2mm steel plate with epoxy painting
Warm proof insulation filling: 75mm rockwool between C section purlins;
Inner wainscot: 8mm OSB board with 12mm PVC decoration board.
Roof water drain: 4 PVC rainwater pipes in the corner pillars, diameter 50mm
Walls
Panel width: 1150mm; Panel total thickness: 75mm, five panels fit into the long side and two panels fit into the short side.
Construction:
Common room wall: 75mm rockwool 0.4/0.4mm Galvanized
Steel on both side, Desity of Rockwool: 120Kg/m3
Galvanize window opening on the wall if needed.
Door
External door: Insulated with opening dimension 950*2100mm, furnished with lock
With 3keys. Inner door: Insulated steel door.
Windows
Window material: PVC window with fly screen. 5mm glass.
Electrical fittings option
Electrical wire, 2.5mm2 for lighting system, and 4mm2 for AC units.
Main outlet and input industrial socket with 32A.
3 pcs 16A five hole universal socket.
2 pc double tube fluorescent lamp, 220V, 50-60HZ
1 pc Single Switch, Honyar brand, with junction box
1 pc Electrical distribution box, box+breakers+earth leakage protective device
Optional Water system fittings
Water drain pipe, PPR pipe, dim 16-20mm, connection fittings are made of copper, life span over 10 years.
Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC
Sanitary ware:
Western Close tool: Ceramic, with pipes and installation fittings
Urinal: Ceramic, with pipes and installation fittings
Wash basin: Ceramic, with post, faucet, pipes and installation fittings
Shower head, Shower base, Water mixture
Here are basic two size of XF2 container house, one is 20 feet size big container house, another one is 40 feet size big container house, the type of window and door can be built as the customers' requirements. Also we can build the inner structure of container house according to customer's requirements.
There are several size for TYpe XF2 container house:
20 feet full size container house ( bulk shipment) demensions: 6058*2438*2591
20 feet normal size container house ( cargo delivery) demensions: 5800*2250*2560
40 feet full size container house ( bulk shipment) demension 12192*2438*2591
40 feet normal size container house ( cargo delivery) demensions: 1180*2250*2560
Wecheer House Group is specialized in designing, manufacturing, marketing and construction of the prefabricated house, steel structure. We took the lead to be certificated by ISO9001: 2008. We gain reputation for good faith and obtained the honor title of provincal-level"Contract Hornoring and Commercial Integrity trust-worthy Enterprise".
Headquartered in beautiful Sapphire County-Changle county in Shandong province, we are around 160km away from Qingdao Port and 480km from Tianjin Port. Our prominent capacity of reserch and development as well as advantages in technology, make our product branded "Weichang House", which include prefabricated houses, steel structure building and asssorted materials products.

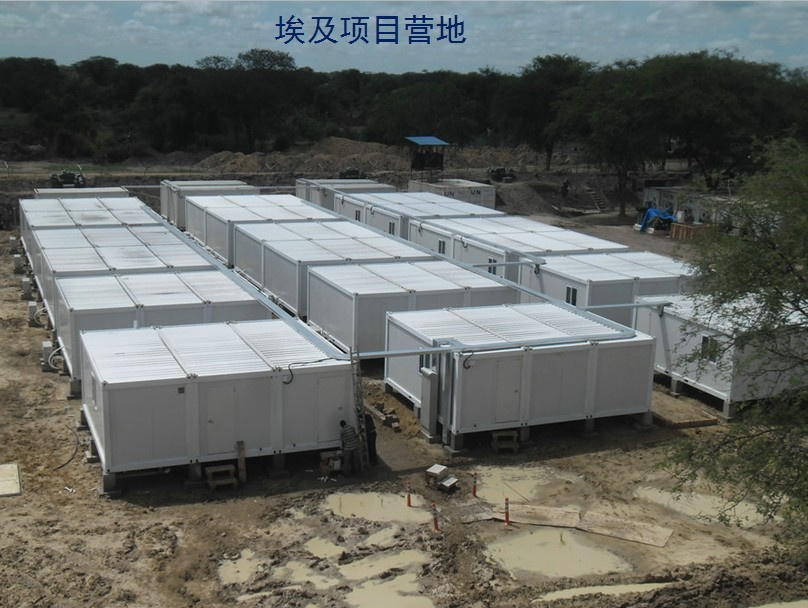

They are widely used in temporary offices and dormitories on the construction, temporary commercial housings in the cities and leisure villas, as well as tourist resort lodging houses and military forces' Temporary accommodation, etc.
Relying on advanced manufacturing techniques, perfected quality control system, and prominent sales and after service system, our business expand nationwide with the strategy of Collectivized Management, Regionalized Business. One after another, we provided products and services for State key projects such as Jinan Olympic Sports Center, National Day Parade Village, Yantai T-shaped cross-sea bridge, etc. And also we provided large quantity of prefab houses for Sichuan China earthquake relief projects in year 2008.
We have self-owned import & export rights authorized by Ministry of Commerce and expanded our bussiness overseas to South Africa, Vietnam, Laos, Russia, Australia, Guinea, Ethiopia and other countries and regions.
We' Ve always been a manufacturer, thus we are able to control everystep of our business including raw materials, production, warehousing, delivery and most importantly, quality. By managing effective that process, people and operation, we become very competitive on a whole scale. Witnessing the tremendous prosperity of construction industry, we are more than able to meet the booming market increasing contracting and the requirements of our clients' Specifications.
We are looking forward to cooperating with you for long-term business relationship and mutual benefit.
