| Prod Model: |
TGW180 |
| Thickness: |
1.2mm |
| Installation Type: |
Knock Down |
| Stainless Steel Material: |
SUS/Asis 201 304 |
| Surface Treatment: |
Polished |
Product Description

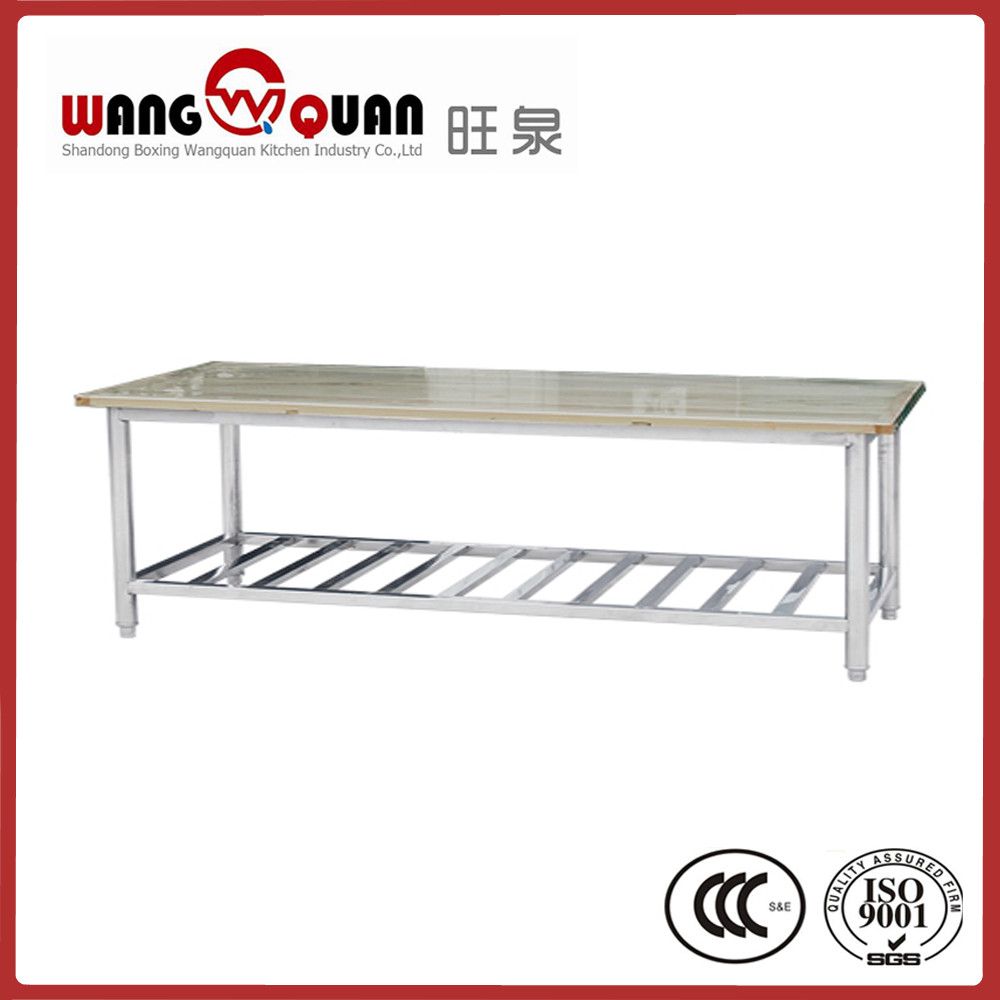

Commercial Kitchen Wooden overshelf / top board Stainless Steel Table
Wooden overshelf / top board Stainless Steel Table
| Model | Dimensions (mm) | N.W.(Kg) | Packing Size(mm) | G.W.(Kg) | CBM(m3) |
| TGW180 | 1800x800x800 | | | | |
Stainless Steel Table/Bench
Features:
1. 1.2mm thick stainless steel construction.
2. 304# are available, 201#,304# or 430# for your option.
3.Stainless Steel heavy duty top & undershelf.
4.Reinforced bars under top.
5.Round tubes legs with adjustable bullet feet.
6.Choice of Flat Packed or delivered upright and fully welded.
7.Optional drawers available separately.
8.upplied Flat Packed for easy self assembly.
9.Hygienic & easy to clean.
10.Size can be customerized.
11.Best quality, stronger structure with economic price.
12.Good Performance on Anti-Rust & Anti-Acid.
13.Polished to Hairline Finish.
14.Standardlised Accessories.
Description:
1.Sturdy stainless steel tables with satin polish finish for use in food preparation areas. Flat surface allows all-around use in the centre of rooms. Can be suited together easily.
2.Four-side Reinforce bar+middle part, which give the table strong enough to support heavy things(Weight capacity 150KG).
3.The height of each leg is adjustable, allowing the user to alter such that the table top may be leveled on uneven ground.
4.All units shipped knock-down for saving space. Standard exporting carton package.
Technical Parameters:
1.Thickness: 0.8mm,1.0mm,1.2mm,1.5mm.
2.Materials: 201 SUS/ASIS stainless steel, 304 SUS/ASIS stainless steel,430 SUS/ASIS stainless steel.
3.Installation: knock down, weld or according to customer's requirements.
4.Surface treatment: polishing, single side brushing, double side wire drawing frosting processing
5.Reinforced bar: Φ38 round tube or 38*25 square tube.
Specification & Detail:
1. Simple Stainless Steel Table:
1.2mm SUS304 stainless steel used in top deck/board. The undershlef, Reinforced bar and reinforced middle part adopt 1.2mm SUS304 stainless steel; The upstanding legs adopt SUS304 stainless steel pipe (diameter50mm, thickness 1.2mm), attached with adjustable stainless steel bullet feet.
2. Swing door worktable:
1.2mm SUS304 stainless steel used in top deck/board, door, inner sheet, undershelf, Reinforced bar and reinforced middle part. The upstanding legs adopt SUS304 stainless steel pipe (diameter50mm, thickness 1.2mm), attached with adjustable stainless steel bullet feet.
3.Surface treatment: Seamless welding, repeatedly grinding and polishing, store after cleaning with stainless steel maintenance fluid. Total body repeatedly grinded and polished, without any sharp corner.
4. After-sale assemble tools and accessories: Assembly type is attached with screw, nut, stainless steel gasket, six angle wrench. Both welded and assembly type are attached with adjustable bullet feet.
Packaging & Delivery
Packaging Details: strong carton packing with bubble wrap inside, or wooden crate outside, or according to customer's requirements
Delivery Detail: 15-25days after received receipt of T/T deposit.
