Ningbo Longtu Network Technology Co., Ltd. >> Comm Network Cabinet Single Section with 500mm Depth

Comm Network Cabinet Single Section with 500mm Depth

Comm Network Cabinet Single Section with 500mm Depth
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: TN-007
Markets: North America,South America,Eastern Europe,Southeast Asia,Western Europe
Packing: Assembled or Dis-Assembled
Logo: Silk Print, Aluminum Sticker, Rubber Sticker
Material: SPCC Cold Rolled Steel or Eg Steel
Static Loading: 60kgs
Type: Network Cabinet
Usage: Network Integration System
Installation: Wall-Mounted Cabinet
Certification: SGS
Condition: New
Fan Number: Optional
Capacity: 4u to 27u

Product Description

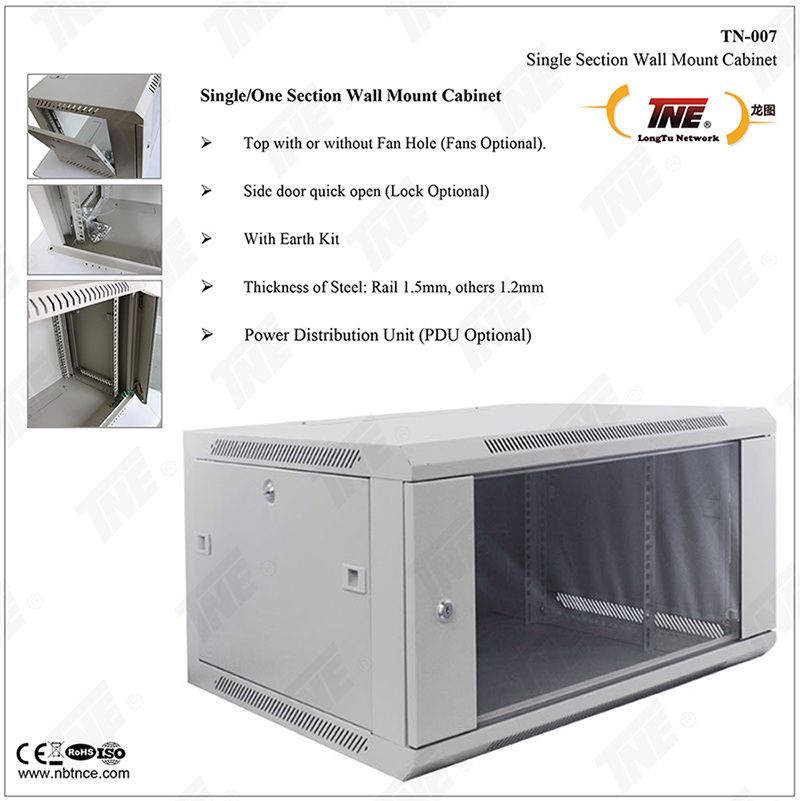

Comm Network Cabinet Single Section with 500mm Depth

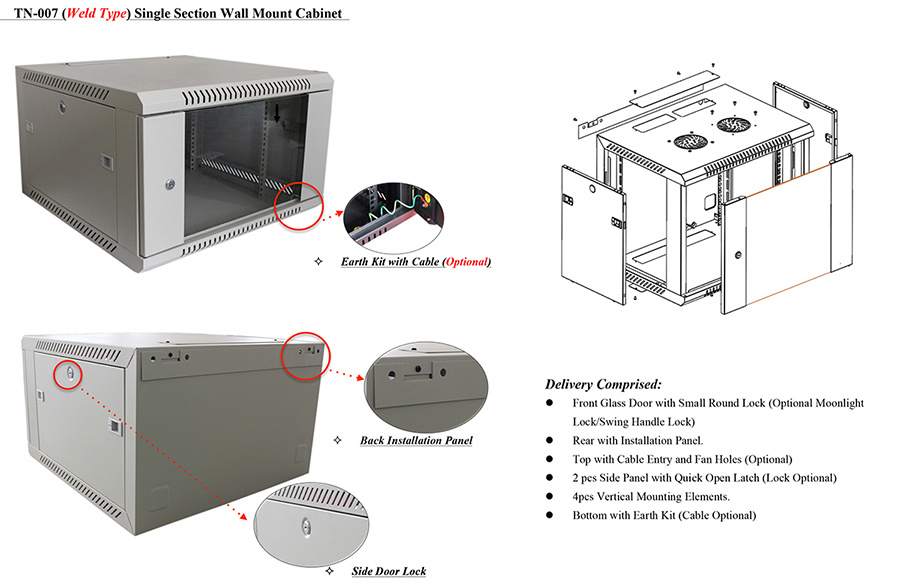

*One Section/ Single Section Wall Mount Cabinet
*Welded frame, reliable structure
*Standing or wall mounting installation
*Adjustable feet and heavy duty castors are optional
*Removable side panels, side locks optional
*Cable entry on both of top cover and bottom panel
*120mm fan available (220V or 110V)
*Turning angle of front door is over 180 degrees.

Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard

Material:
High grade cold rolled steel.

Thickness:
Mounting profile: 1.50mm others: 1.2mm

Loading Capacity:
Static Loading: 60kgs

Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting

Degree of Protection:
IP20.

Body Color:
RAL7035, RAL7044, RAL9004 etc.







Optional Accessory:

Fixed/cantilever shelf, sliding shelf, for 450mm, 600mm depth cabinet
1U, 2U support board
19'' Power distribution unit(PDU)
19'' Blanking plate 1U, 2U, 4U
Optional lock for side panels
Earth kit
And so on...

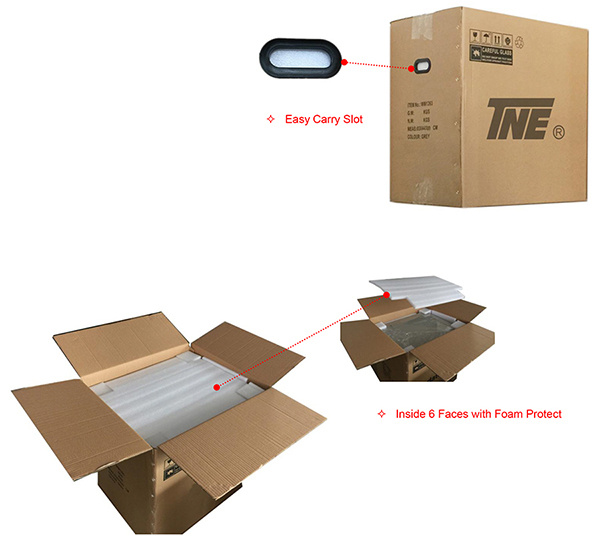

High Quality Packing Way




Model No.

Capacity(U)Width(mm)Depth(mm)Height(mm)

TN-007

4U600mm450mm/600mm279mm

TN-007

6U600mm450mm/600mm368mm

TN-007

9U600mm 450mm/600mm501mm

TN-007

12U600mm450mm/600mm635mm

TN-007

15U600mm450mm/600mm769mm

TN-007

18U 600mm450mm/600mm901mm

TN-007

22U600mm450mm/600mm1082mm

TN-007

27U 600mm450mm/600mm
1304mm


FAQ

1)    What is your Payment term?
---T/T, L/C, Western Union could be accepted.

2)    What is your Trade term?
---EXW, FOB, CNF, CIF is also ok.

3)    What is the Loading Port?
--- Ningbo or Shanghai port.

4)    What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.

5)    What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market,  international safety standard certificate is also be provided.

Ningbo Longtu Network Technology Co., Ltd. ( Formly named Ningbo Taina Electronics Compay) own a Brand of "TNE" Mainly offer 19'' network cabinets, 19'' server racks, wall mount cabinet and customized Products, built for your specific requirement.

> Year 2003 TNE Founded

> Year 2006 TNE gains Export and Import Right

> Year 2010 TNE Moved the factory to Guanhaiwei East Industrial Zone, Ocupy 6066 Square Meter.

> Year 2014 TNE Changed the name from NINGBO TAINA ELECTRONICS COMPANY to NINGBO LONGTU NETWORK TECHNOLOGY Co., Ltd. Pure Producing Network Cabinet.

TNE have some stable partner From USA, UK, France, Austrial, Egypt, and So on.

TNE mainly Products as below:

Network cabinet

Server Rack

Wall Mount Cabinet

Open Frames

PDU...

TNE Machinery:

CNC Punching Machine: 4 sets

Laser Cutting Machine: 2 sets

Bending Machine: 11 sets

And other small Machines...

TNE owned Painting Line with Environment evaluation certificate

Welcome to contact with us to start the business in Year 2016! !
