| Prod Model: |
TN-002 |
| Color: |
Orange |
| Logo: |
Silk Print, Aluminum Sticker, Rubber Sticker |
| Packing Style: |
Assembled or Dis-Assembled |
| Shipping: |
Sea, Air, Train, Truck |
| Material: |
SPCC Cold Rolled Steel |
| Certificate: |
Ce. RoHS. SGS |
| Type: |
Server Cabinet |
| Usage: |
Network Integration System |
| Installation: |
Vertical |
| Fan Number: |
Two |
| Condition: |
Used |
| Capacity: |
12u~48u |
Product Description

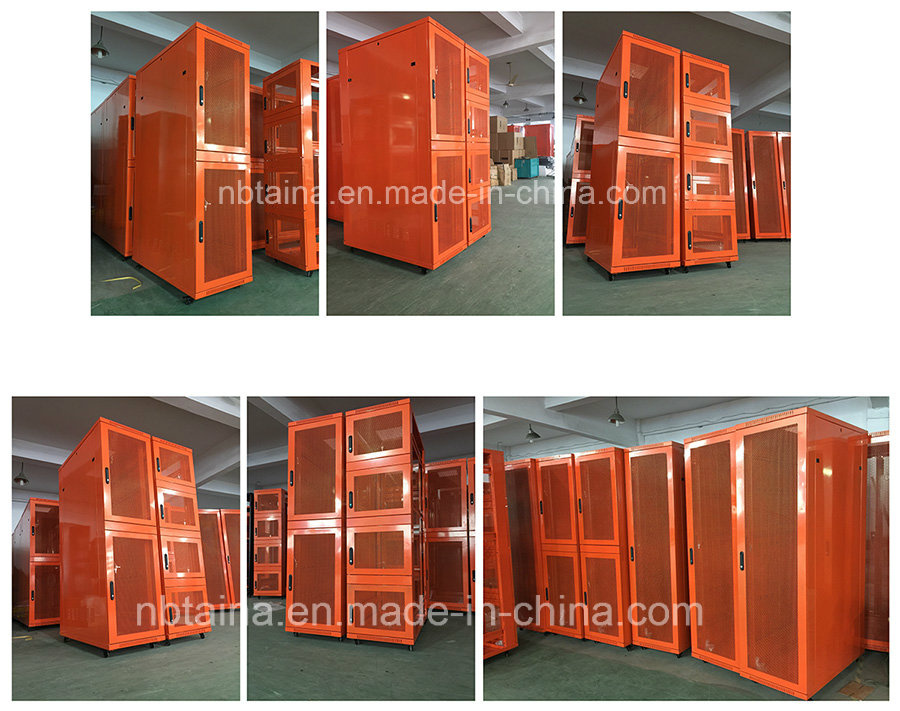

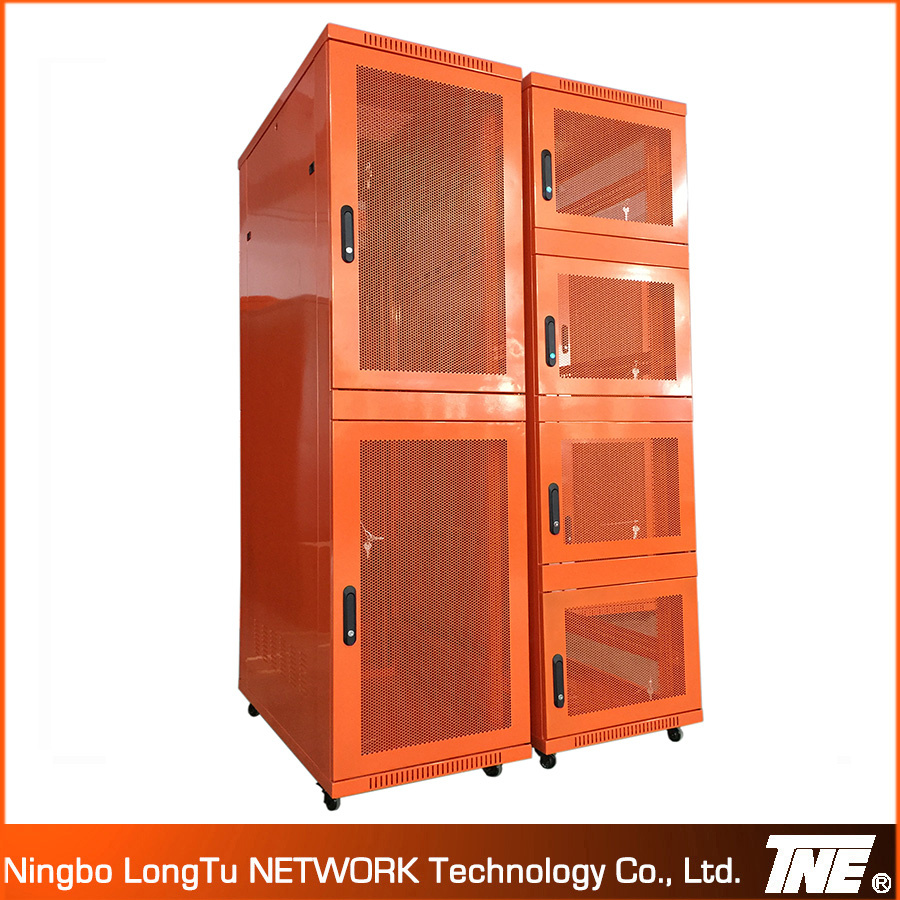

Colorful Network Cabinet with 2sections or 4sectionsFeathures

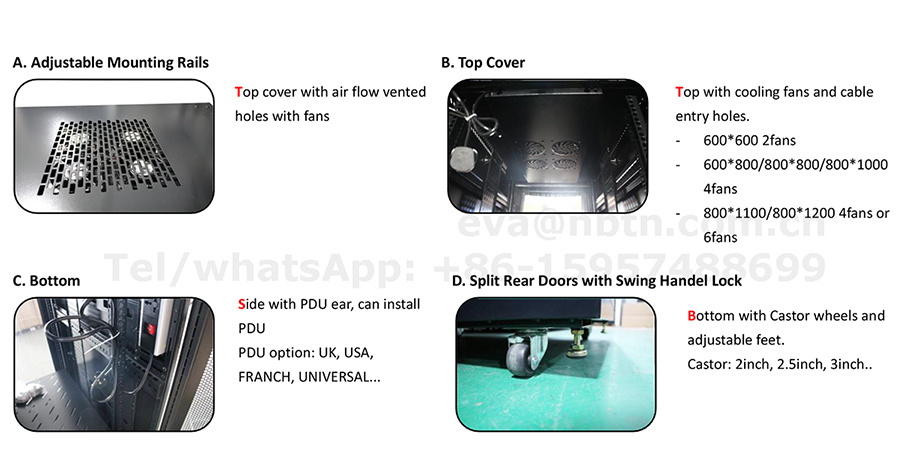

> Front door with 2/4 sections doors with swing handle lock
> Rear Double Mesh Door
> Side door with quick open latch
> Fully adjustable vertical mounting rails;
> Swiveling wheels and legs can be jointly installed to withstand up to 800kg maximum static load;
> Several lockable wiring holes on top/bottom, size of the large hole at the bottom adjustable;
Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard
Material:
High grade cold rolled steel.
Thickness:
Mounting profile: 2.00mm others: 1.2--1.5mm
Loading Capacity:
Static Loading: 800kgs
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
Degree of Protection:
IP20
Body Color:
RAL7035, RAL9004 etc.
Optional Accessory
= Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
= 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
= 1U, 2U support board
= Vertical Cable manager
= 19'' Power distribution unit(PDU)
= 19'' Blanking plate 1U, 2U, 4U
= Heavy duty castor, Heavy duty castor with braker
= Optional lock for side panels
= Earth kit
And so on...

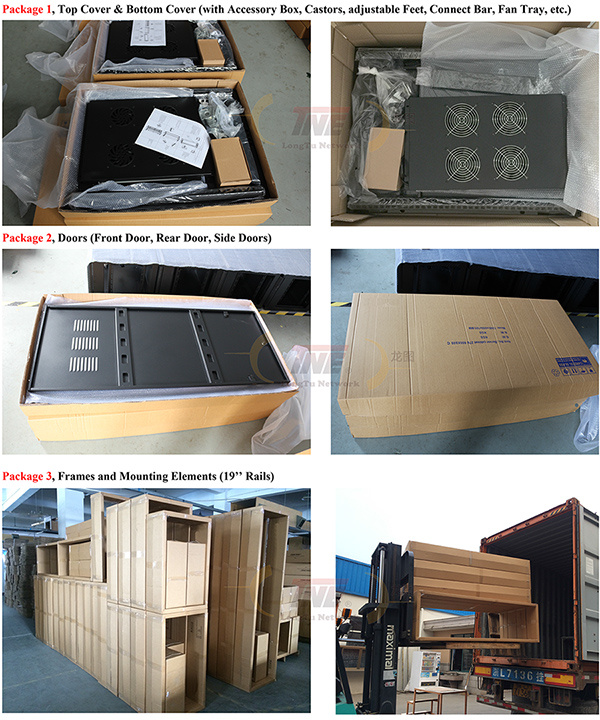

Flat Packing Way as Below:
|
| NO. | Item | 600 wide | 800wide | Materials | Treatment | Note |
| 1 | Frame | 2 | 2 | 1.5mm SPCC steel | Powder coating |
|
| 2 | Front Door | 1 | 1 | 1.2mm SPCC steel | Powder coating |
|
| 3 | Side Door | 4 | 4 | 1.2mm SPCC steel | Powder coating | Removable |
| 4 | Back Door | 2 | 2 | 1.2mm SPCC steel | Powder coating |
|
| 5 | Lock | 2 | 2 | \ | \ | Spring Lock |
| 6 | Top cover | 1 | 1 | 1.2mm SPCC steel | Powder coating |
|
| 7 | Fan unit | 1 | 1 | 1.2mm SPCC steel | Powder coating |
|
| 8 | Ac fan | 2 or 4 | 2 or 4 | \ | \ | D>800,4 pcs |
| 9 | Relese fastener | \ | 6 or 12 | SPCC T=1.2 | Powder coating | H≤27U, 6pcs |
| 10 | Fan power cord | 1 | 1 | \ | \ | L=1.5 to 2.0M |
| 11 | Bottom panel | 1 | 1 | SPCC T=1.2 | Powder coating |
|
| 12 | Mounting angle | 6 | 6 | SPCC T=1.5 | Powder coating | H≤27U, 4pcs |
| 13 | Mounting profile | 4 | 4 | SPCC T=2.0 | Zinc plated |
|
| 14 | Horizontal bracing | 6 | 6 | \ | \ | Sometime more |
| 15 | Castors | 4 | 4 | \ | \ | W.W/O brake |
| 16 | M12 feet | 4 | 4 | Steel | Brass plated |
|
Size Form | Model No. | Capacity(U) | Width(mm) | Depth(mm) | Height(mm) |
TN-002
| 18U | 600mm/800mm | 600mm/800mm/1000mm | 988mm |
TN-002
| 22U | 600mm/800mm | 600mm/800mm/1000mm | 1166mm |
TN-002
| 27U | 600mm/800mm | 600mm/800mm/1000mm | 1388mm |
TN-002
| 32U | 600mm/800mm | 600mm/800mm/1000mm | 1610mm |
TN-002
| 37U | 600mm/800mm | 600mm/800mm/1000mm | 1833mm |
TN-002
| 42U | 600mm/800mm | 600mm/800mm/1000mm | 2055mm |
TN-002
| 45U | 600mm/800mm | 600mm/800mm/1000mm | 2188mm |
TN-002
| 47U | 600mm/800mm | 600mm/800mm/1000mm | 2277mm |
