Prod Model: |
RBJ-16A |
Material: |
ABS |
Type: |
Optical Fiber Distribution Box |
Wiring Devices: |
ODF |
Certification: |
ISO |
Condition: |
New |
Product Description

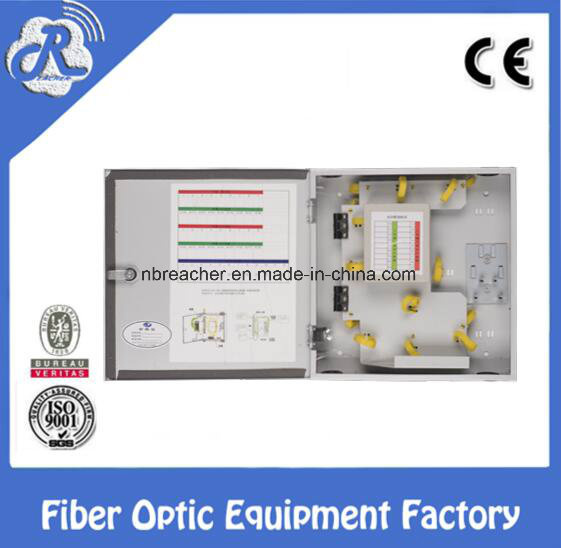

Cold Rolled Steel Fiber Distribution Cabinet Box RBJ-16AProduct DescriptionProduct Name | Cold Rolled Steel Fiber Distribution Cabinet Box RBJ-16A |
Material | ABS |
Weight | 1-3.2(kgs) |
Dimension | 330**230*90 |
IP rate | IP65 |
Cable Entrances | Waterproof connector |
Installation | Wall/ Pole mounting fiber optic distribution box |
Specification
1.Environmental Requirement
Working temperature: -40ºC~+85ºC
Relative humidity:≤85%(+30ºC)
Atmosphere pressure:70Kpa~106Kpa
2.Main Technique Data
Insertion loss:≤0.2dB
UPC return loss:≥50dB
APC return loss: ≥60dB
Life of insertion and extraction: >1000 times
3.Thunder-proof Technique Data
The grounding device is isolated with the cabinet, isolation resistance is less than 2x104MΩ/500V(DC); Insulation Resistance≥2x104MΩ/500V.
The withstand voltage between grounding device and cabinet is no less than 3000V (DC)/min, no puncture, no flash-over; U≥ 3000V. Features
- SMC material used ensures the body stronger than normal ABS..
- Wet-proof, water-proof, dust-proof, anti-aging
- Easy installations: Ready for wall mount - installation kits provided
- Space saving: Double-layer design for easier installation and maintenances
- Ready for splitters: designed space for adding splitters.
- Protection level up to IP55
- Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
- Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
- Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC adapt or installation, easy maintenance.…

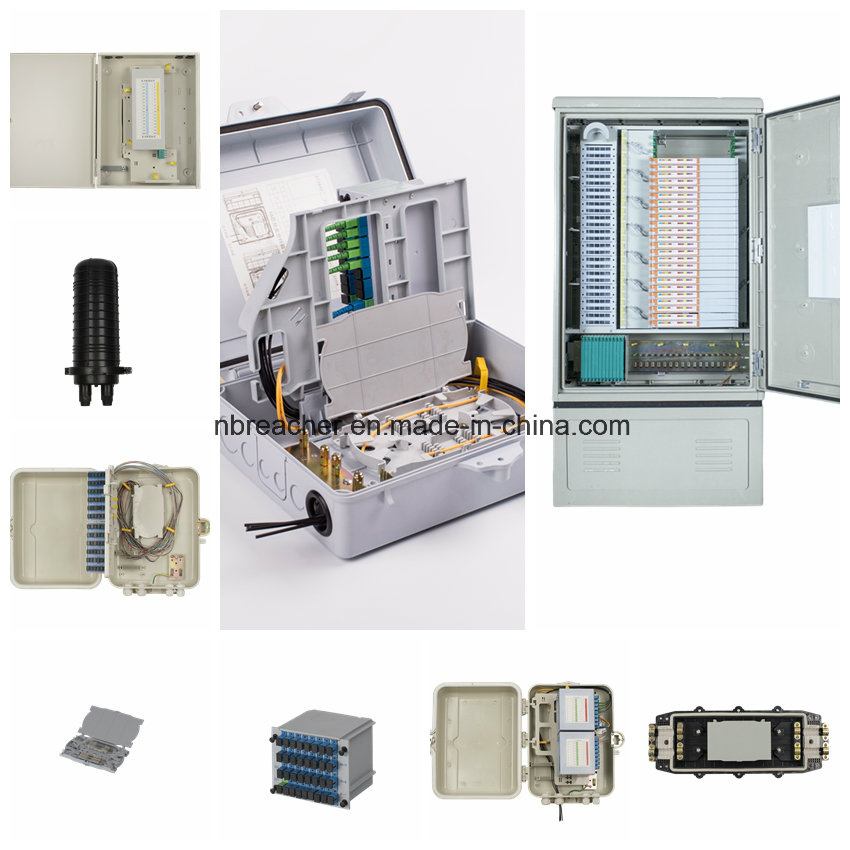

More Products
--------------------------------------------
