| Prod Model: |

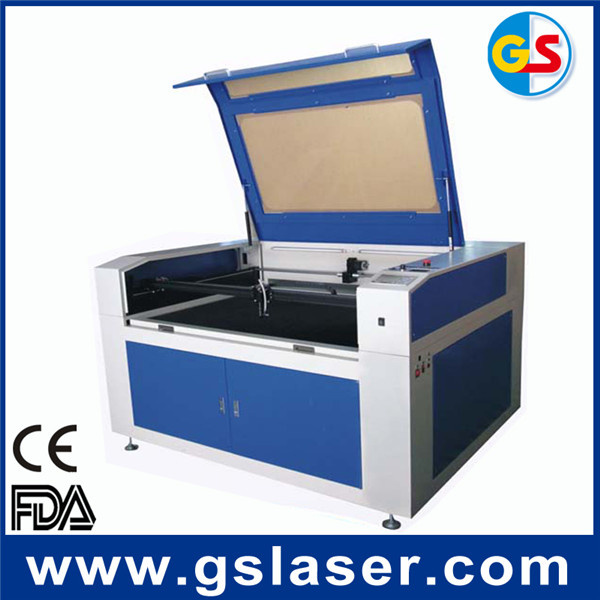

GS-9060 80w up dpwn table |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Usage: |
Plastic |
| Power: |
Small Power |
| Drive Type: |
Stepper Drive |
| Certification: |
GS, SGS, CE, ISO 9001 |
| Laser Type: |
CO2 |
| Control: |
Automatic |
Product Description
Laser cutting machine for acrylic ,plastic .non-metal material for 80w /100w /120w /150w
Part 1, Advantage for our laser tube: Puri Laser Tube/Power product
Carbon dioxide co2 laser tube and laser power supply, located in located in Shanghai Pudong New District. Combining the support of Shanghai laser instrument Institute, and Shanghai Aoshi Industry and Trade Co., Ltd. of years of research and development and production experience, we has over 10 years of experience in co2 laser tube. The present Puri Laser can produce 25W, 40W, 50W, 60W, 80W, 130W, 160W, 200W, 300W CO2 co2 laser tube, at the same time to produce the perfect 25W ~ 300W laser power
Puri Laser tube is using a special process, from the co2 laser tube firing patch inflatable process of scientific and comprehensive quality control methods which enables Puri co2 laser tube have power spot.......
Part 2 laser engraving and cutting machine Technical parameter
Laser type:Hermetic and detached CO2 laser tube
Laser-wavelength:10600nm
Laser power: 40-400W
Working area: According to machine working size
Engraving speed ≤1200mms
Cutting speed: 0-4000mm/min
Repeat accuracy ≤0.01mm
Location precision <0.01mm
Shooting mode: CO2 LASER CUTTING MACHINE
Control system: QC controlling units
Working table: Thicker honeycomb working table/ Triangular aluminum working table for your reference
Graphic format: HPGL\PLT\BMP\JPEG\TIFF\TGA\DST\DXP\DXF\DWG\COK
Power supply: 220V/50HZ+-10%
whole power <1250W
Cooling system: air-cooling and protection system
Auxiliary equipments: Exhaust-fans, air-exhaust pipe and so on
Machine dimension: According to different model
laser engraving and cutting machine Specification:
Model | GS9060 | GS1280 | GS1612 | GS1280D | GS1612D |
| Laser power (W) | 60/80 | 60/80/100 | 60/80/100 | 60/80/100 | 60/80/100 |
| Engraving size | 900*600mm |
1200*800mm |
1600*1200mm |
1200*800mm | 1600*1200mm |
| Engraving speed | 72000mm/min. | 72000mm/min. | 72000mm/min. | 56000mm/min | 56000mm/min |
| Dimension | 1430*1060* 1080 mm |
1730*1060* 1080mm |
2130*1760* 1080mm |
1730*1160* 1080mm |
2130*1760* 1080mm |
| Resolution ratio | 0.025mm | 0.025mm | 0.025mm | 0.025mm | 0.025mm |
| Resetting positioning accuracy | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| image format | AI,Plt,Cdr, Dxf Dst,Nc, Bmp,Jpg | AI,Plt,Cdr, Dxf Dst,Nc, Bmp,Jpg | AI,Plt,Cdr, Dxf Dst,Nc, Bmp,Jpg | AI,Plt,Cdr, Dxf Dst,Nc, Bmp,Jpg | AI,Plt,Cdr, Dxf Dst,Nc, Bmp,Jpg |
| Mininum shaping characters | English Letter: 1mm*1mm | English Letter: 1mm*1mm | English Letter: 1mm*1mm | English Letter: 1mm*1mm | English Letter: 1mm*1mm |
| Power supply | 220V/50Hz (+-10%) | 220V/50Hz (+-10%) | 220V/50Hz (+-10%) | 220V/50Hz (+-10%) | 220V/50Hz (+-10%) |
| Gross Power | < 1000W | < 1000W | < 1000W | < 1250W | < 1250W |
| Operating temperature | 0C°~45C° | 0C°~45C° | 0C°~45C° | 0C°~45C° | 0C°~45C° |
