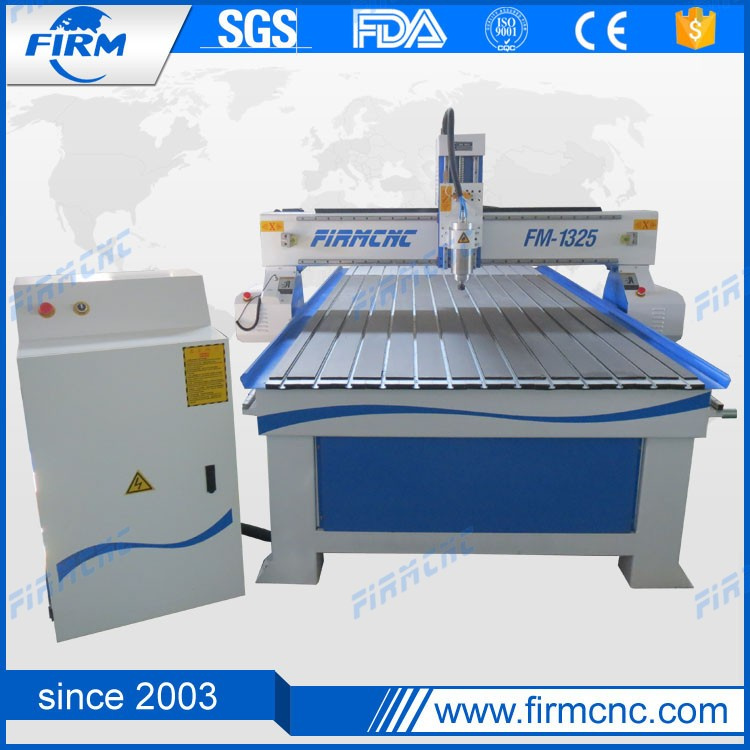

CNC Wood Router Cheap CNC Cutting Machine for Acrylic Leather
| Price: |
US $ 3000-5000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
FM1325 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Table Size(Mm): |
1600*3100 |
| Engraving Area: |
1300*2500*200 |
| Spindle Power: |
3.0kw Water Cooling Spindle |
| Spindle Rotate(Rpm): |
6000~24000 |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
Product Description
CNC Wood Router Cheap CNC Cutting Machine for Acrylic LeatherFM-1325 is the main products of Jinan Firm CNC Equipment Co., Ltd and widely used in furniture, industrial equipment parts, decoration, building models, advertisement...It can cutting and engraving materials including MDF, wood to make the cabinet door, solid wooden door, computer desk, assembling desk, it also can engrave on the HDF, wood board, acrylic, plan cutting, 3D embossment...

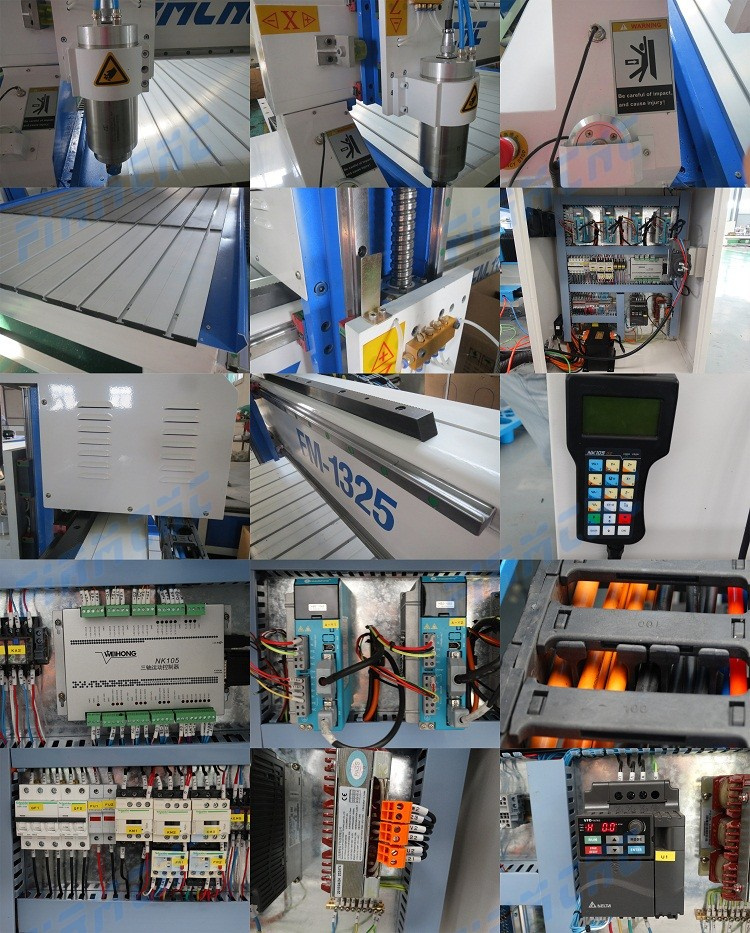

Features
1. Lathe bed is of high quality by cast steel, after re-treatment, much stronger and more stable.
2. Powerful stepper motor driver, Imported linear guide rails, running smoothly, high accuracy, long time service.
3. Gear wheel/ rack transmission, high precision, could engrave 1mm letter clearly.
4. Water cooling spindle (24000rpm), apply to long time processing of wood products.
5. The advanced professional control system compatible with many instruction format, may achieve process function in interruption of power supply, breakpoint and next day which is more convenient and save labor.
6. All the spare parts are provided by most famous brand, with stable high quality.
7. It can do three-dimensional processing fast, smoothly, engraving or cutting.
8. Our software is compatible with type3/artcam/castmate/weitai and so on.
9. Through the CE quality authentication.
Technical specification| Brand | Firm |
| Model | FM-1325 |
Machine Size
(mm)(W*L*thickness) | 1900*3100*1800 |
| Table size(mm) | 1600*3100 |
Engraving area
(W*L*thickness)(mm) |
1300*2500*200 |
| Working Form | Full-automatic |
| Spindle Power | 3.0KW water cooling spindle |
| Spindle Rotate(rpm) | 6000~24000 |
| Motor Driver | Stepper motor (Chinese servo motor or imported
servo motor is optional) |
| Tool Diameter(mm) | Ø3.175,Ø4,Ø6, Ø12.7mm |
| Machine Structure | Industry square tube structure |
| Transmission System | Imported ball screw or high accuracy gear rack |
| X,Y,Z Rail | Imported square rail |
| Mechanical Accuracy | <0.03/300mm |
| Engraving Speed(mm/min) | 8000~12000mm/min |
| Feeding Speed | manual |
| Data Transmission | PC connect |
| Support Format | G code or HPGL |
| Working Voltage | AC220V/50Hz or 380V/50Hz |
| Support Format | G Code or HPGL |
| Range of Application | Woodworking relief engrave ,Cutting , Hollow |
| Machine Net Weight | 1200Kg |
Applications:
Widely used in antique furniture with relief carving, wood carving, furniture- processing, in
Struments making 3D light box making, making, aluminum composite panel, funding mound
Decorative doors and windows processing etc.
Special configurations;
It can be customized more large format and special models, and it can be optional standard configuration spindle or importing, auto-change tool system, oil lubrication system,
Vacuum inhaling and dust collect etc.
Guarantee & After Sales Service:
1. One year quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge when problems happened during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5.12 hours on line service each day, free technical support.
