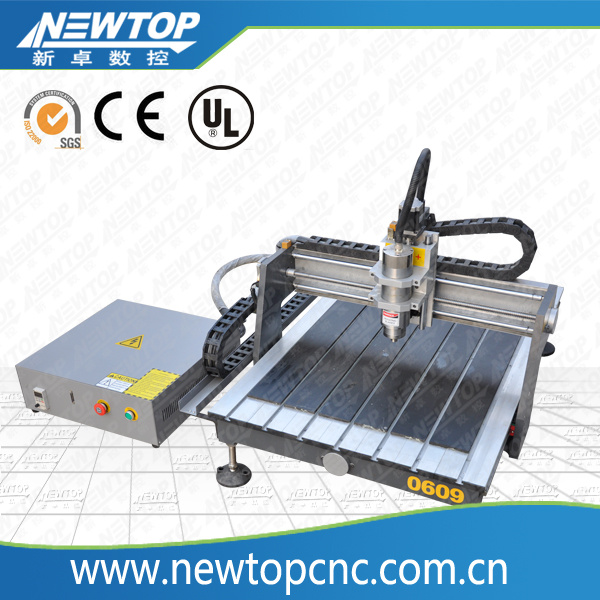

CNC Router Woodworking Machine, CNC Router Machine0609s

CNC Router Woodworking Machine, CNC Router Machine0609s
Price: US $ 1500-5000/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T,D/P,Western Union
Prod Model: 0609S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Xyz Working Area: 600*900*100
Resolutiong: 0.03
Max Consume Power: 3kw
Spindle Power: 1.5
Spindle Layout: Spindle Over
Spindle Number: Single-Spindle
Feed Mode: Mechanical
Controlling Mode: CNC
Certification: SGS

Product Description

Specifications

Advance tech, high quality product, competitive price, CE Certification and best service



Advertising CNC Router
1.5kw spindle
Ballscrew transmission


Mini CNC Router

It is good choice for small piese woodworking, with dust hood on all three axies, it can stop dust away from the rails and ball screws, and to keep the machine working longer time.
We use accuracy LM linear (HIWIN) for all three axis, with options like water slot, mist spray system...Etc.
The machine can work on wood, plastics, acrylic, even metal.
With T-slot table, holding the materials with clamps, High precision, you can do many jobs for sign mading, wood artwork...
All meterials for Sign making, even for wood working, molding.

China mini 3d cnc router price 0609

Main Features

1. Classical Mahogany Furniture Relief Engraver MD0609 style is an unique mini cnc router which is designed for 3D basso-relieve in mahogany, classical furniture. And it has high precision, fast speed, it can meet the needs of cutting flowers completely.

2. Three axises are dustproof, the lathe bed is cast wholly. It is stable, durable, no deformation, high precision location.

3. International advanced DSP handle (Hcwy system optional, Welding system optional), a way to break memory, produce on accident (break) or next day.

4. Germany ball screw rod and hiwin guide rail, original screw nut, imported linear and square rail. Air cooled 1.5KW spindle motor.

Applicable Industries

1. Wooden areas: Main used in redwood classical and antique furniture, wood carving, gifts wooden box, redwood jewelry boxes, ink-stone cutting, decorative products sculpture, fine jewelry carving.

2. Advertising: Used in producing all models. Such as company plate, sings, building models, emblem, badge, display panels, fair signs, building numbers, signs of decoration, furniture and other decoration.

3. Others: The machine is also can be used in portraits, landscapes, calligraphy lettering, seal carving and other plane surface carving, basso-relieve.
Model Mini CNC ROUTER A0609
ItemDescriptionParameter
1X, Y, Z working area600*900*120mm
2Table size780*1316mm
3Resolution± 0.03/300mm
4Repeatability± 0.02mm
5Lathe structureCast steel with stand
6X structureBall screw, shaft rails
7Y structureBall screw, linear rails
8Z structureBall screw, shaft rails
9Max. consume power3kw
10Max. rapid0-6000mm/min
11Max. working speed0-3000mm/min
12Spindle power motor1.5kw chinese self-coolant spindle, ER16
13Spindle speed0-24000RPM
14Working modeStepper motor
15Working voltageSingle phase AC220V/50HZ/60Hz
16Command codeG Code(*uoo,*nc,*mmg, *plt)
17Operating SystemDSP system or Mach3 system
18InterfacePrinter port 50pins or USB
19System memory128M (or pen driver)
20ColletER16
21X, Y working delicacy<0.01mm
22SoftwareType3 software, ucancam software, copy artcam software
23Running circumstanceTemperature: 0°C~45°C
relative humidity: 30%~75%
24Packing size910*880*8300mm
25Net weight110KG
26Gross weight1700KG


Jinan NewTop CNC Machine Co., Ltd. is professional manufacturer as a leader in high-speed CNC Router, engraving machine, CNC router machine, foam cutting machine, CNC Machining Center, laser cutting machine, laser engraving machine, laser machine, laser marking machine, plasma cutting machine; Our mission is to provide the best quality CNC routers to our customers. The main products are CNC routers for woodworking, sign making, cutting plastics, making molds, marble, metal and other uses.

We can offer standard/custom CNC Router for customers. One our great strengths is in our capability to engineer, manufacture and deliver CNC Router in delivery times that are the shortest in the industry. Meanwhile we have a professional sale team and engineer team with more than 10 years experience. So we can supply good training to customers and supply service perfectly. Our high quality machines and good service have earned us good reputation in the world market.

We can establish a long term business relations with all the customers and enjoy the benefits.
