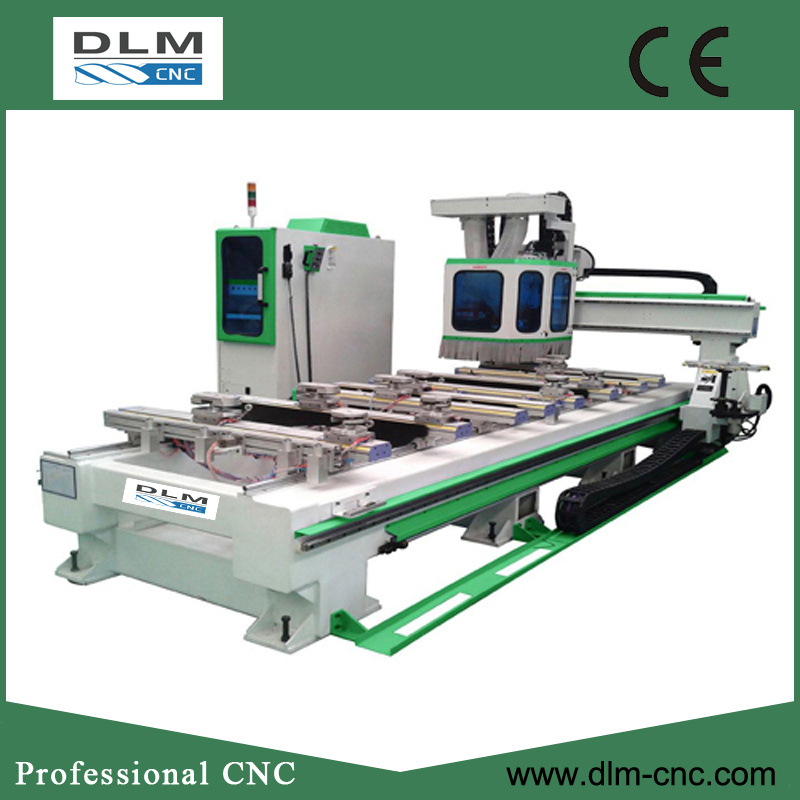

CNC Router Moving Bridge Ptp Table PA-3713
| Price: |
US $ 45500-65500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
PA-3713 |
| Working Area: |
3700mm*1300mm |
| Controller: |
Taiwan Syntec / Delta |
| Spindle: |
9kw / 12kw / Atc |
| Drilling Head: |
9V2h2s |
| Electrics: |
Schneider |
Product Description
CNC Machining Center PTP PA-3713
Product Features:
1.Centralized automatic lubrication system.
2. Centralized dust collection control system
3. Tool automatic compensation system.
4. Automatic backlash preloading mechanism.
5. Refrigeration and air conditioning electric control box.
6. Two Z axes rise and descend mechanism
7. High rigidity design.
8. Taiwan HIWIN ball screw and rail guide.
9. Taiwan precise spiral rack transmission.

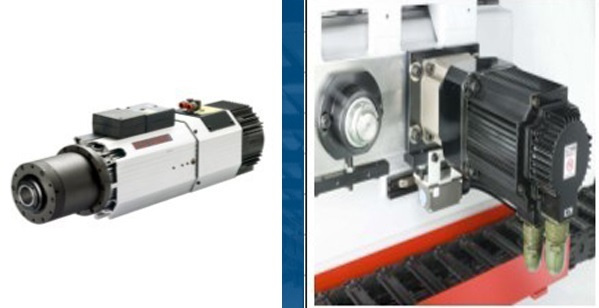

10. Italy HSD auto tool changing high frequency spindle.
11. Japan YASKAWA servo motor and driver.
12. Taiwan planetary type reducer.

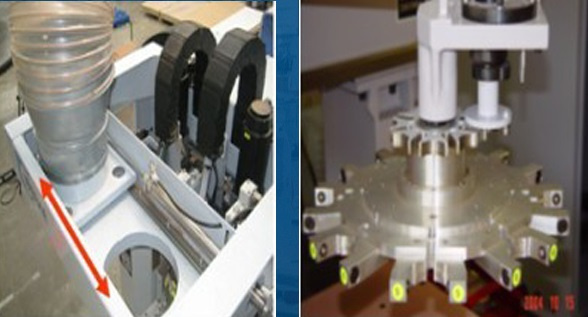

13. Drum type aluminum alloy tool changer with 8 tools.
14. Italian OSIA-PC control system.
15. Italian 7 vertical and 2 horizontal pneumatic line boring head
Applicable Applications:
Processing of solid wood combination door components can be finished at one time, processing time of 7 components combination door is about 10 minutes.
Production process of milling, sawing, drilling can finish inside molding, hole mortising, door core double sides processing, etc. at the same time.
Break through traditional processing mode, meanwhile, replace six traditional processing equipments and significantly shorten the production process and processing time.
Specializing in the production of solid wood combination doors, solid wood arch doors and solid wood decoration frames, etc.
Ideal for processing OA office desk, audiovisual cabinet, central control and monitor console, display counter etc.
Parameters:
| - Rails | 1300mm |

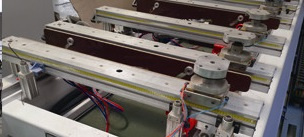

| - Pads | 135x135x50mm-Fixed |
| 135x100x50mm-Fixed |
| 135x75x50mm-Rotary |
| 135x50x50mm-Rotary |
| - Positioning air cylinder | 65mm-Fixed |
| 65mm-Movable |
| - Pneumatic clamp set | 40~75mm |
| - Panel lifting blades | 55mm |
| - Max. working Area | 3700×1300mm |
| - Stroke | X&Xg Axis | 4000mm |
| Y Axis | 1700mm |
| Z1&Z2 Axis | 300mm |
| - Working height | 200 mm |
| - Rapid speed | X&Y Axis | 80 M/min. |
| Z Axis | 20 M/min. |
| - Tool change mode&capacity | DRUM type ATC, 8 tools |
| Aluminum Alloy |
| - Spindle power | 16 HP (12kw)/HSK-63F |
| - Spindle speed | 1000-24000rpm/min |
| - Vacuum pump power | 7.5HP(5.5kw)-160m³/h |
| - CNC controller | OSAI-PC |
| - Boring head | 7V2H |
Sample
Technical Parameters: | Vacuum Table | Table Size(mm) | 1300x10pcs | Rapid Speed | X&Y(M/Min) | 80 |
| Max.working stroke | X(mm) | 4000mm | Z(M/Min) | 20 |
| Y(mm) | 1700mm | Main Power | Spindle Power | 12kw-HSK-63F |
| Z1&Z2(mm) | 300mm | Vacuum Pump | 7.5kw-250m3/h |
| Working Height(mm) | 200mm | Pneumatic Line Boring Head | 7V2H-2.2kw |
| Working area(mm) | 3700x1300 | Dimensions | Area(mm) | 4700x3200x2300mm |
| Distance Between Spindles | | Net Weight(kg) | 4200kg |
