CNC Plasma Cutting Table

Prod Model:	DTCN
Optional:	Foot Switch, Chuck
Color:	as Per Customers' Requirements
Delivery Time:	Timely
Export Markets:	Global
Voltage:	as Per Customers' Requirements
Cutting Speed:	50-1000 mm/Min(No Grade Timing )
Back Speed:	6000 mm/Min
Cutting Thickness:	6-100 mm(Single Cutting Torch 100mm)
Cutting Precision:	±0.5 M/M
Product Name:	CNC Plasma Cutting Table

Product Description

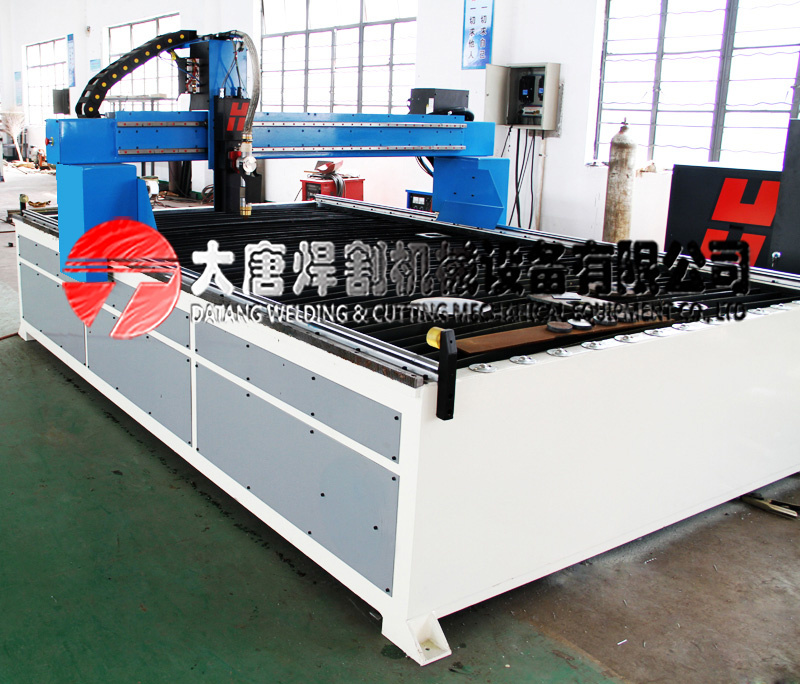

CNC Plasma cutting table
This series of cutting machine is of gantry structure. All the structure members are annealed, shot-blasted integrally and painted. Guide-rails on the frame are treated with high-frequency quenching, then ground and paneled together.
The advantage is: Good rigidity, high precision, stable structure and so on. Linear triple-torch, infinite-revolving triple torch and plasma torch can be equipped based on customer requirement. Torch elevation unit is adopted with ball-bearing guide-way, which can elevate automatically or manually. Also auto-ignition function is available. Based on customer choice, tube and cable arrangement can be hanging-type or drag-chain type.

Main technical parameter

Specification	DTCN-4000	DTCN-4500	DTCN-5000	DTCN-5500	DTCN-6000
Rail distance	4000 mm	4500 mm	5000 mm	5500 mm	6000 mm
Cutting width	3200 mm	3700 mm	4200 mm	4700 mm	5200 mm
Rail length	15000 mm (can be designed as required)
Valid cutting length	12500 mm (can be designed as required)
Cutting speed	50-1000 mm/min(no grade timing )
Back speed	6000 mm/min
Cutting thickness	6-100 mm(Single cutting torch 100mm)
Cutting precision	±0.5 m/m
Roughness of surface	Ra12.5-25
Cutting gas source	Oxygen and Acetylene or propane
Power	Three phase 380V±10%,50Hz,3KVA

Our services:
1,Customer first
2,Sincere cooperation
3,Mutually beneficial
4,Joint development

Company information:
Our company is a high-tech company,which specialize in auto welding equipment and H-beam production line.The products are applied to construction industry,such as pressure vessel,oil and chemical,power station,heavy duty mechanical equipment,ship,steel struvture equipment and so on.And we also can design special equipments according to clients' requirement.The products are sold at home and abroad,like southeastern Asia,Middle East,Europe and America etc.

FAQ:
1,Customer:Can your  machines be customized?
        We: Yes,we have a professional design team.If you have any special requirements,we can                        customize for you.
2,Customer:What about the packing ?
       We:Usually we use wooden case,container or as per customers' requirements.
3,Customer:What about the transportation?
      We:We usually take seaway because it is convenient and cheap.Also we can take train,it is
      up to the destination.
4,Customer:What about the warranty?
      We:Our company's machines are all of high-quality.And our products' warranty is 1 year.
