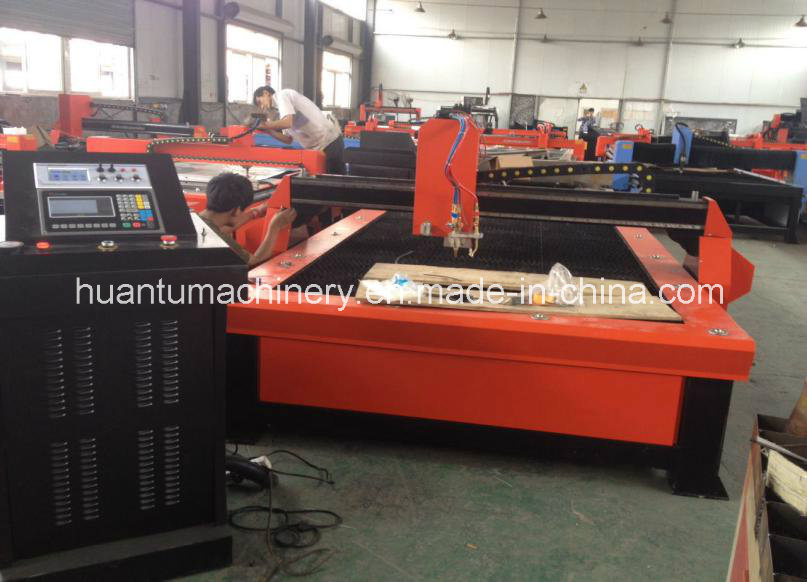

CNC Plasma and Flame Cutting Machine Table Type
Price: |
US $ 1-10000/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
Flame Cutting Machine |
Product Description
CNC Plasma and Flame Cutting Machine Table Type
Product features 1) Machine tool and beam are of good quality aluminum alloy which is anti-deformed, durable, economical and decent after the disposal of stress relieving and surface oxidation.
2) The combination of the T-bar and tailored track with dual drive acquires zero-noise, high-intensity, high-speed and high-precision features.
3) Equipped with two movable bodies which is convenient and practical.
4) Cutting Objects: carbon steel, stainless steel and non-ferrous metal plate.
5) With the function of cutting metal plates into any shapes.
6) With two cutting modes: Flame Cutting & Plasma Cutting.
7) Chinese, English, French, and Portuguese are ready to use.
8) Can automatically memorize and restore when power is off.
9) Can choose Plasma THC ( torch height control) device.
10) Plasma high frequency proofed which guarantees the safety of the plasma cutting. Project
Model | CNCUT-4009G-SE(heavy gantry) |
Power input | AC 220V±10% 50/60Hz |
Cutting style | Plasma + Flame |
Tracks space between mm | 4000 |
Track length mm | 9000 |
Effective cutting range mm | 3200×7000mm |
Torch lift range mm | ≤90 |
Moveable body | 2 sets |
Torch number | Plasma torch holder with THC: 1 set Flame torch with THC : 1 set |
Cutting thickness mm | Mild steel: piercing capacity 32mm/ edge start: 75mm Stainless steel: piercing capacity 25mm/ edge start: 64mm Aluminum: piercing capacity 32mm/ edge start: 75mm |
Maximum speed | Servo motors 0-10000mm/min |
Cutting speed | Servo motors 0-10000mm/min |
Driver | Lengthways Drive:2 sets Panasonic servo motors + reduction gears, dual drive Crosswise Drive:1 set Panasonic servo motor + reduction gears |
Control system | FLSK 2100B |
Remote-control unit | 100 meters unwire remote control 0set |
THC | Plasma THC: 1 set Flame THC: 1 set |
Flame device and auto igniter | 2 sets |
Other equipment | Lengthways and crosswise drag chain, Valve group |
Software | Australian FASTCAM standard version 1 set |
Cutting table | 0 sets |
Plasma generator | HYPERTHERM MAXPRO 200 |
Packing | Wooden case BOX1: 4830*1330*1460mm 1000kgs BOX2: 2550*640*210mm 400kgs BOX3: 2550*640*210mm 400kgs BOX4: |
Documents and device with machine
1. Software manual:1 set
2. Control system manual:1 set
3. Remote-control unite manual: 1 set
3. THC manual:1 set
4. Hypertherm plasma generator operation manual: 1 set
5. Kingston 4G USB flash driver (within all electronic version documents): 1 set
6. Packing list: 1 set
7. Certification: 1 set
