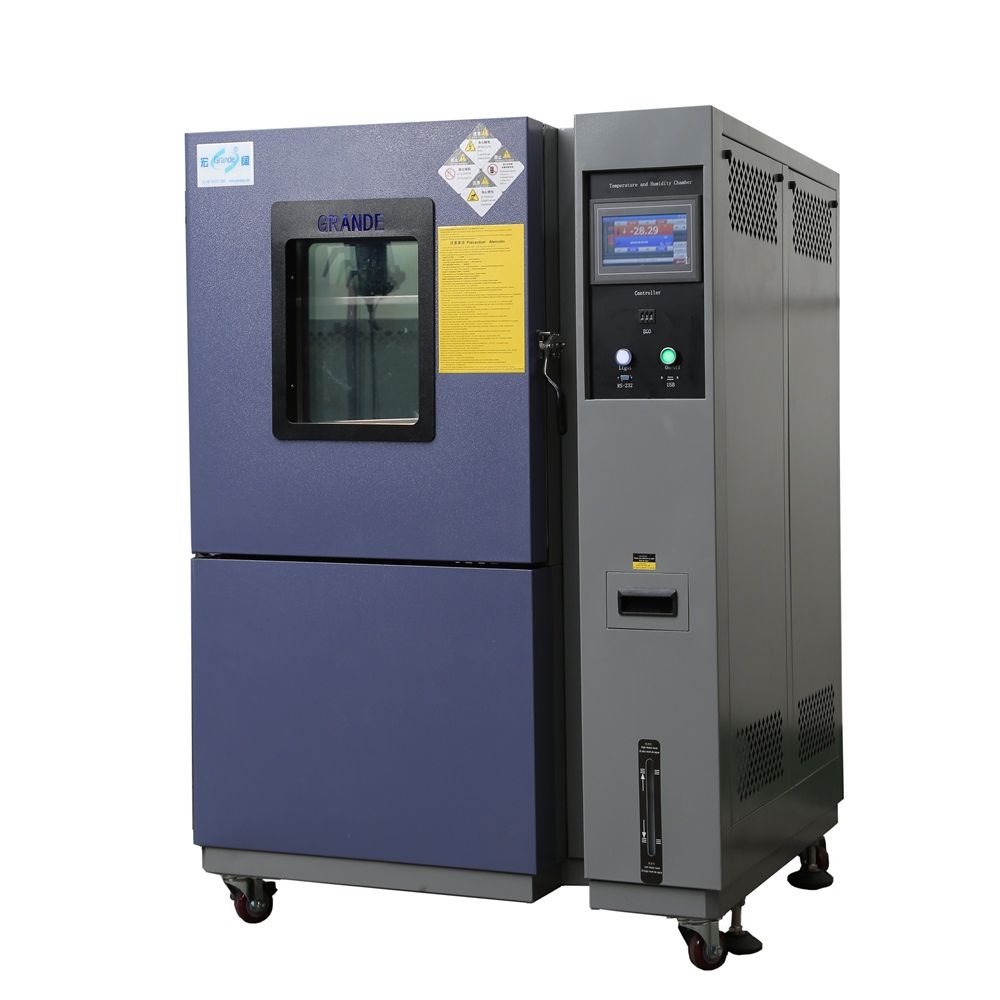

Climatic Cycling Stability Testing Chamber Temperature Humidity Cabinet
| Price: |
US $ 4000-8000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
GTH-150 |
| Inner Chamber Size(W*H*D): |
500*600*500mm |
| Temperature Range: |
-70 Degrees to 180 Degrees |
| Humidity Range: |
20%~98%Rh |
| Temp. & Humidity Fluctuation: |
±0.2°c, ±0.5%Rh |
| Temp.&Humidity Resolution: |
0.01°c,0.1%Rh |
| Exterior Chamber Material: |
Stainless Steel Plate + Powder Coated |
| Interior Chamber Material: |
SUS#304 Stainless Steel Plate |
| Certificate: |
Ce Certificate, Pass SGS&TUV&BV Audit |
| Type: |
Universal Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC380V |
Product Description

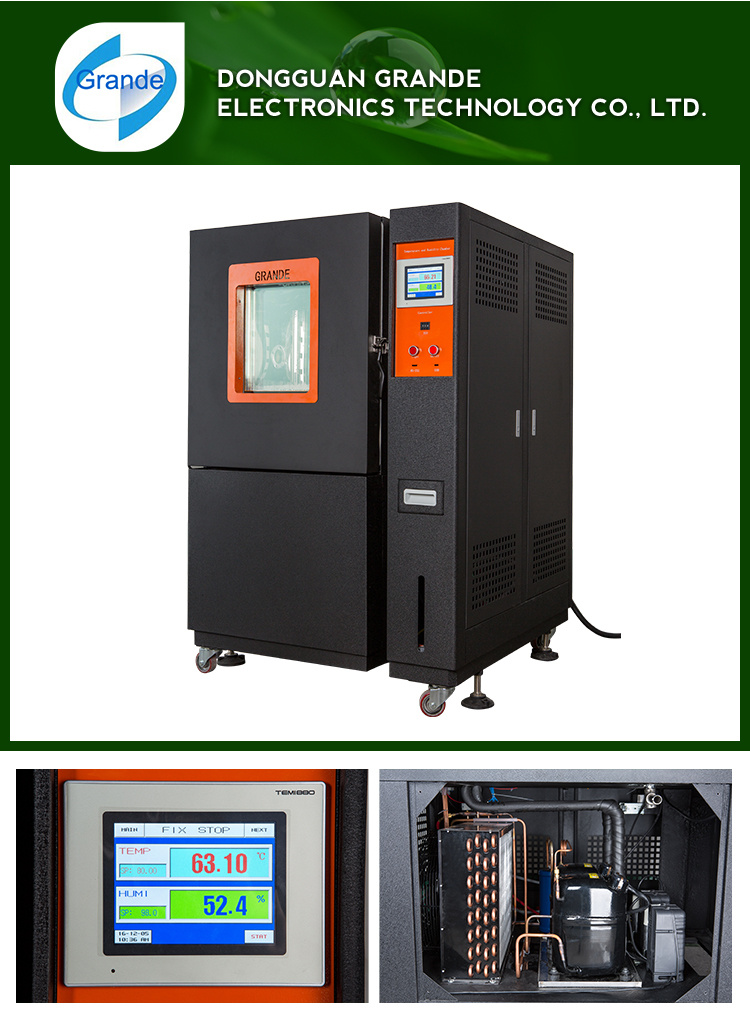

Programmable Temperature and Humidity Test ChambersTemperature and Humidity Test Chambers provides an economical and space-saving solution for a variety of testing requirements. It can simulate different climatic conditions, such as heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, which defines the performance of material. By testing the product under different climatic conditions to see whether its performance can meet the intended requirements. It is widely applied in the industries of electron, electrical equipment, vehicle, metal, food, chemistry, building materials, luggage, adhesion tape, printing, packaging, and other product components and materials.The programmer includes a temperature alarm as just one part of Grande's Three-tiered over-temperature protection system. A thermal fuse and a user-set independent limit are also included. In addition, a specimen power terminal allows the user to safely operate powered equipment inside or with the chamber.Corresponding Standard of the Temperature and Humidity Test Chamber:1.GB11158 high-temperature testing condition2.GB10589-89 low-temperature testing condition3.GB10592-89 high-low-temperature testing condition4.GB/T10586-89 humidity testing condition5.GB/T2423.1-2001 low-temperature testing condition6.GB/T2423.2-2001 high-temperature testing condition7.GB/T2423.3-93 humidity testing condition8.GB/T2423.4-93 alternating temperature testing machine9.GB/T2423.22-2001 temperature testing method10.IEC60068-2-1.1990 low-temperature testing method11.IEC60068-2-2.1974 high-temperature testing method12.GJB150.3 high-temperature test13.GJB150.4 low-temperture test14.GJB150.9 humidity test Grande Expertise in Humidity Control
Controlling humidity in a small environmental chamber can be especially challenging. Grande expertise in humidity control brings intelligent design that is carefully integrated into the Criterion chambers. The humidity subsystems are designed for reliability, convenience, and performance:- An external steam generator allows expanded range and is easy to maintain.
- A separate de-humidification coil improves low humidity control and range.
- Wet-bulb humidity sensor is a "primary measurement method" for accuracy. It is also economical, easy to maintain, and reliable because it has no risk of failure due to over-saturation. (Read why analog is preferred over digital.)
- Direct water supply connection is standard, with options for water filtering and recirculating water tank.
Features- High performance and quiet operation (65 dBa)
- Space-saving footprint, designed for flush installation to wall
- Stainless steel exterior
- Full thermal break around doorframe
- One 50mm (2") diameter cable port on left, with flexible silicone plug
- Three levels of overheat protection, plus overcool protection
- Easy lift-off service panels, electrical access on left
- Detachable eight-foot power cord with plug
- Direct water supply connection for continuous operation (supply tank optional)
- Over-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp.
Touch-screen programmer/controller with Ethernet
- Watlow F4T with touch-screen and Ethernet port standard
- Save 120 profiles with up to 1200 steps each (ramp, soak, jump, auto-start, end)
- One event relay for external device control, plus specimen power interlock relay for safety
- Grande exclusive options include: Web Controller for full remote access; Chamber Connect software for basic data logging and monitoring. USB,RS-232 and RS-485 ports available, as well.
Technical parameters:| Model No | GTH-080 | GTH-150 | GTH-225 | GTH-408 | GTH-800 | GTH-1000 |
| Working room(L) | 80 | 150 | 225 | 408 | 800 | 1000 |
| Inner chamber size(mm)W*H*D | 400*500*400 | 500*600*500 | 500*750*600 | 600*850*800 | 1000*1000*800 | 1000*1000*1000 |
| Exterior chamber size(mm)W*H*D | 900*900*1500 | 950*1500*1050 | 950*1650*1150 | 1050*1750*1350 | 1450*1900*1350 | 1450*1900*1550 |
| Packaging volume(CBM) | 2 | 3 | 3.5 | 4.5 | 5.5 | 6 |
| G.W.(KGs) | 300 | 320 | 350 | 400 | 600 | 700 |
| Performance | Temperature range | -80ºC,-73ºC,-60ºC,-40ºC,-20ºC,0ºC,+150ºC,+180ºC,+200ºC |
| Humidity range | 20%RH ~98%RH(10%RH ~98%RH or 5%RH ~98%RH) |
| Temp.&Humi fluctuation | ±0.2°C, ±0.5%RH |
| Temp.Humi.Uniformity | ±1.5°C; ±2.5%RH(RH≤75%),±4%RH(RH>75%) No-load operation,After stead state 30 min. |
| Temp.humi resolution | 0.01°C; 0.1%RH |
| Heating up time | °C | 100 150 |
| Min | 30 40 | 30 40 | 30 45 | 30 45 | 30 45 | 30 45 |
| Cooling down time | °C | 0 -20 -40 -60 -70 |
| Min | 25 40 50 70 80 |
| Heating rate | ≥3°C/min |
| Cooling rate | ≥1°C/min |
| Material | Inner chamber material | SUS#304 stainless steel plate |
| Exterior chamber material | SUS304 Stainless steel plate+ powder coated |
| Insulation Material | PU & Fiberglass wool |
| System | Air circulation system | Cooling fan |
| Fan | Sirocco fan |
| Heating System | SUS#304 stainless steel high-speed heater |
| Air flow | Forced Air Circulation(It enters at bottom and leaves at top) |
| Humidification system | Surface evaporation system |
| Refrigeration system | Imported compressor,Tecumseh compressor,finned type evaporator,air(Water)-cooling condenser |
| Refrigerating fluid | R23/ R404A USA Honeywell. |
| Condensation | Air(Water)-cooling condenser |
| Dehumidifying system | ADP critical dew point cooling/dehumidifying method |
| Controlling system | PID Digital electronic indicators+S.S.R.With PID automatic calculation capability |
| Operation interface | Grande Expertise in Temperature & Humidity Controller,Chinese-English Shift. |
| Controller | Programmable capability | Save 120 profiles with up to 1200 steps each |
| Setting range | Temperature:-100ºC+300ºC |
| Reading accuracy | Temperature:0.01ºC |
| Input | PT100 or T Sensor |
| Control | PID control |
| Communication interface | Equipped with standard communication interface devices USB,RS-232 and RS-485,enable the test chamber to be connected with personal computer(PC),to achieve multi-machine control and management at the same time.Standard: USB external memory port.Optional: RS-232, RS-485, GP-IB, Ethernet |
| Print function | Japan Yokogawa Temperature Recorder(Optional accessories) |
| Auxiliary | Limit Alarm,Self Diagnosis,Alarm Display(Failure Cause),Timing device(Automatic Switch) |
| Accessories | Multi-layer vacuum glass observation window,Cable port(50mm),Controlling status indicator lamp,Chamber light,Specimen loading shelf(2pcs,position adjustable),Guaze 5pcs,Operation manual 1 set. |
| Safety protection device | Over-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp. |
| Power supply | AC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz |
| Customized service | Welcome to Non-standard,Specail requirements,OEM/ODM orders. |
| The technical information will be subjected to change without notice |
Optional accessories1,Low Humidity and Dehumidifying sytstem.2,Inner glass door with manual operating ports.3,Temp./Humi.Recorder.4,Pure water treatment device5,RS-485 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.6,Liquid nitrogen(LN2)/Liquid Carbon Dioxide(LCO2) fast cooling-down system.7,Temperature change rate on average without load(Linear heating up and cooling down);5ºC/min,10ºC/min,15ºC/min,15ºC/min,20ºC/min,25ºC/min,RAMP function.

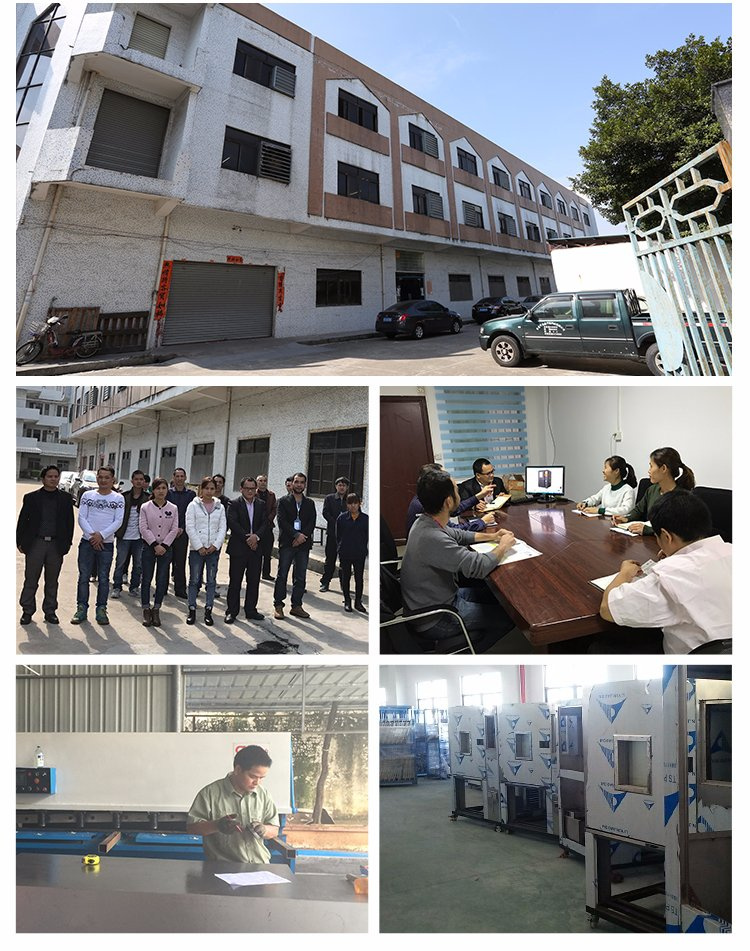

Dongguan Grande Electronics Technology Co., Ltd is professional R&D, manufacture, sales service, maintenance, after-sales service, manufacturer of environmental test chamber. We established our own factory in 2012, which has become an important manufacturer of environmentally friendly test chambers.
To help our customers improving the testing requirements, Grande has established strategic cooperative partnership with first-class Universities, whose Cryogenics and Test Centers possess the world's leading and domestic first-class inspection techniques, cryogenics inspection equipment and instruments.

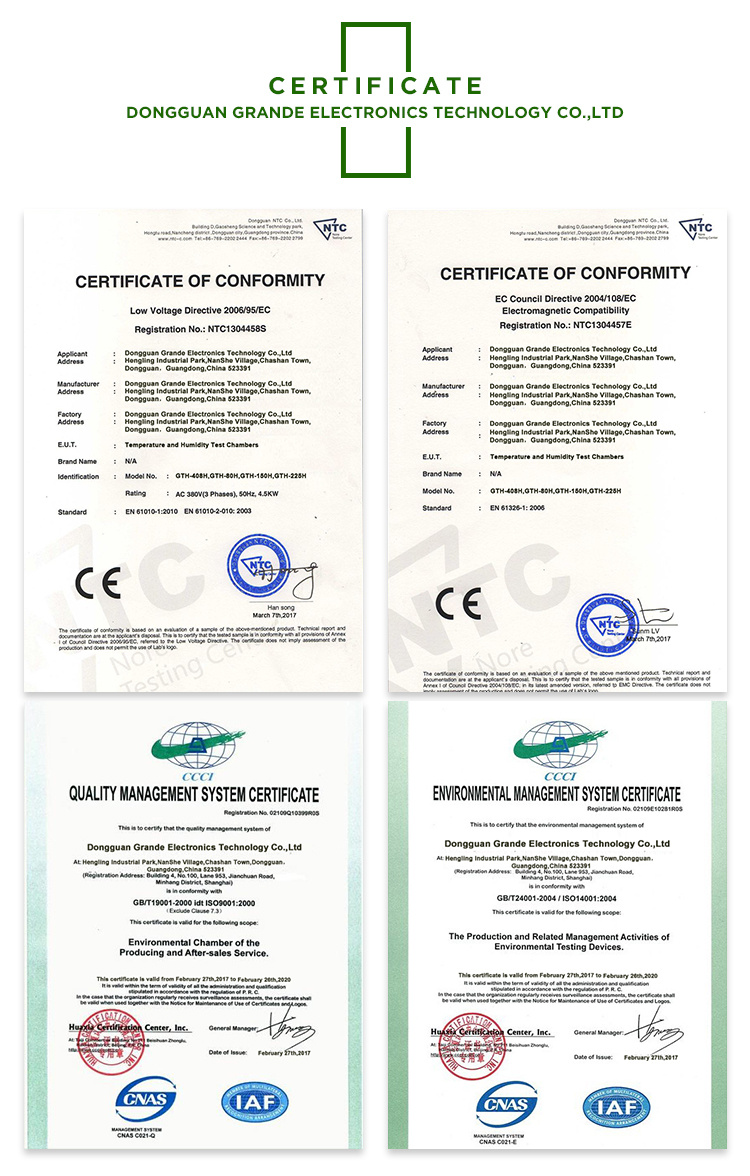

As an enterprise responsible for society, environment and safety, the company has initially built ISO9001: 2000 Quality Management System, ISO14001: 2004 Environmental Management System and GB/T28001-2001 Occupation & Health Safety Management System in their industries. Besides, it adheres to the operation principle of "The best quality environmental test chamber manufacturer in China. Quality is not just a word".
