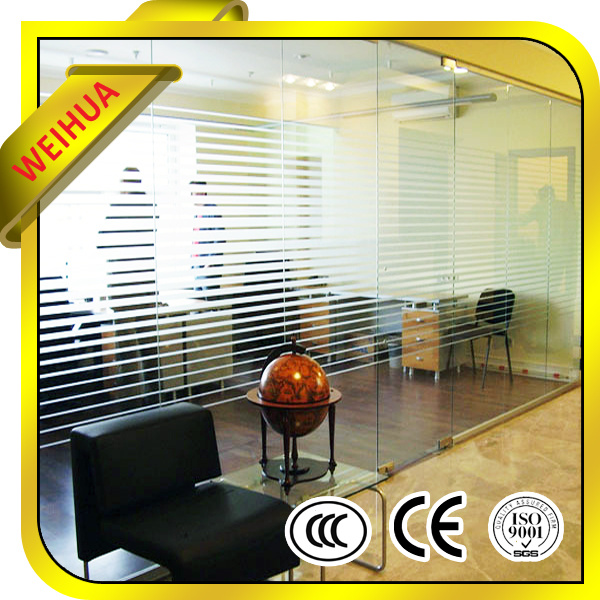

Clear Laminated Glass Partition for Office Wall

Prod Model:	WH-Ma-LG2021
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sheet Glass Thickness:	3-19mm
Laminated Glass Thickness:	6.38-42.3mm
PVB Thickness:	0.38-3.04mm
PVB Color:	Clear Black Milky Red Ect
Minimum Size:	300mm*500mm
Maximum Size:	2440mm*3600mm
Type:	Float Glass
Structure:	Solid
Layer Type:	Bullet-Resistant Glass
Function:	Decorative
Melting Point:	High Temperature
Production:	Dry Laminated Glass
Usage:	Window
Shape:	Flat or Curved
Intermediate Film:	PVB
Color:	Clear, Black, Milky, Red, etc.
Appearance:	Flat or Curved

Product Description

Clear Laminated Glass Partition for Office Wall
Laminated Glass Information

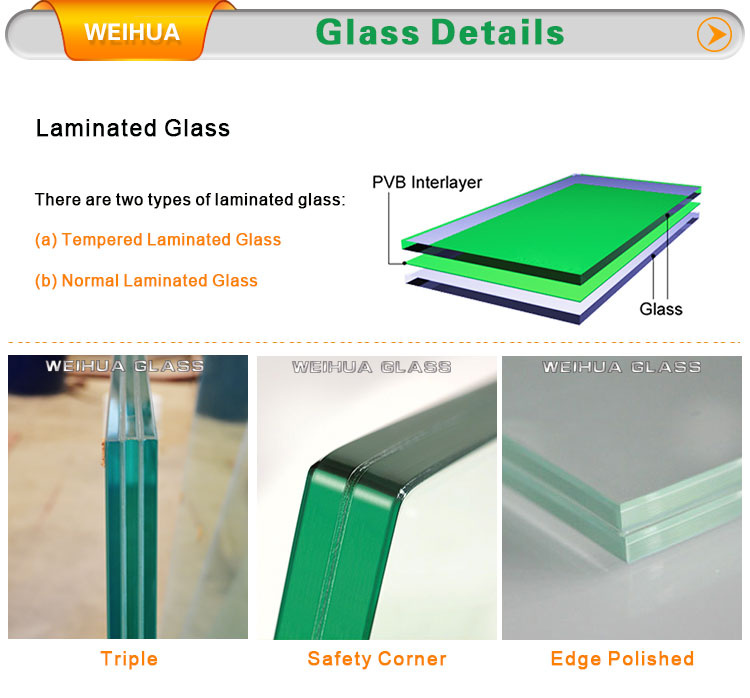

Laminated glass is made by sandwiching a layer of polyvinyl butyral (PVB) between two pieces of glass. The glass and the PVB are sealed by a series of pressure rollers and then heated. This combination of pressure and heat chemically and mechanically bonds the PVB to the glass.

Product Name		Laminated Glass
Place of Origin		Weifang, Shandong, China
Laminated Glass Thickness		3+0.38+3mm, 5+0.76+5mm, 6+0.76+6mm, 6+1.14+6mm, 8+1.52+8mm, 10+1.52+10mm, etc.
PVB Thickness		0.38mm, 0.76mm, 1.14mm, 1.52mm, 2.28mm,etc.
Color		Clear, Ultra Clear, Euro grey, Milky White, F-green, Bronze, Ford Blue, Customized
Size	Minimum Size	100*100mm
	Maximum Size	2440*3600mm
Quality Standard		CE, SGS, CCC, ISO9001
Other Services		Tempered, Polished, Sandblasting, Holes, Notches, Logos, Bent, etc.
Note: Weihua glass can be customized according to the given specifications and colors from clients.

Laminated Glass Advantages
Laminated glass has a protective vinyl layer of material inside of two pieces of glass. There are several advantages to using laminated glass in your home.
(1)Safety: Laminated glass reduces the risk of being cut by shattered glass. When laminated glass is broken, its vinyl inner layer keeps the shards from scattering, additional break-in protection is provided since the glass cannot be cut from outside, making glass cutters useless for entering your home.
(2)Sound Reduction: Noise is reduced further when two panes are used in each window, with an airspace between the panes. The airspace increases the sound proofing quality of the laminated glass.
(3)Reduced UV Fading: UV rays from the sun are blocked up to 95 percent by the film in laminated glass. Visible light comes in, while UV light is blocked.
(4)Impact Resistance: In the cases of storms such as hurricanes, tornadoes and large thunderstorms, laminated glass windows provide the strongest layer of protection possible

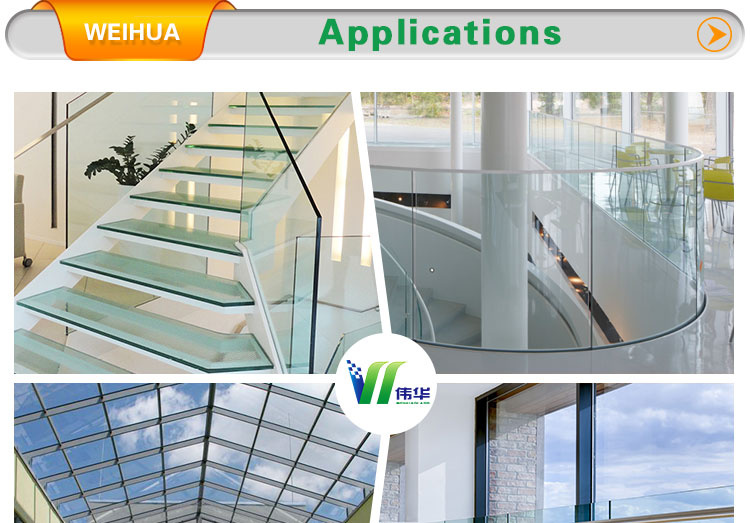

Application of laminated glass
Windows and Doors, Skylights, Railings, Balcony, Floor, Canopy, Glass Partition, Pool Fence, Long Corridor, etc..

Factory Overview

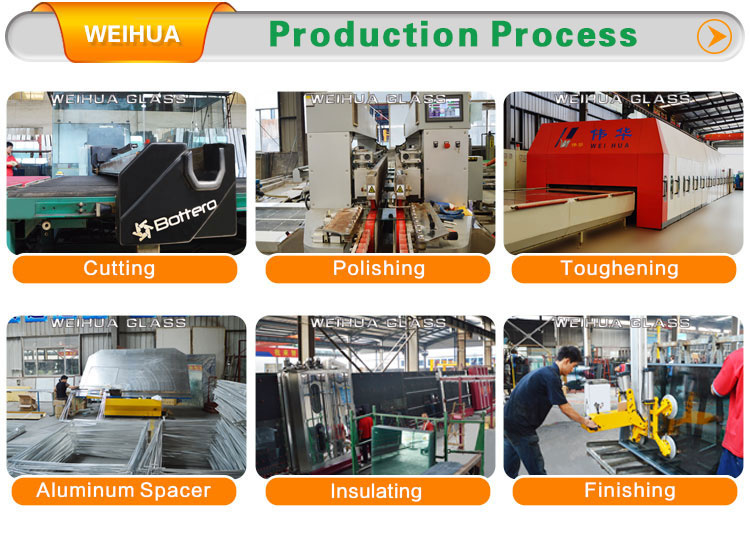

Existing production lines and major equipment are as below:
2 forced convention tempering lines, with annual output is 2.4 million m2;
1 full automatic glass cutting line, with annual output is 1.6 million m2;
3 automatic insulating glass production lines, with annual output is 0.75 million m2;
1 laminated glass production line, with annual output is 0.2 million m2;
1 fireproof glass production line, with annual output is 0.6 million m2;
5 automatic bilateral edge grinding machines, with annual output is 2.6 million m2.

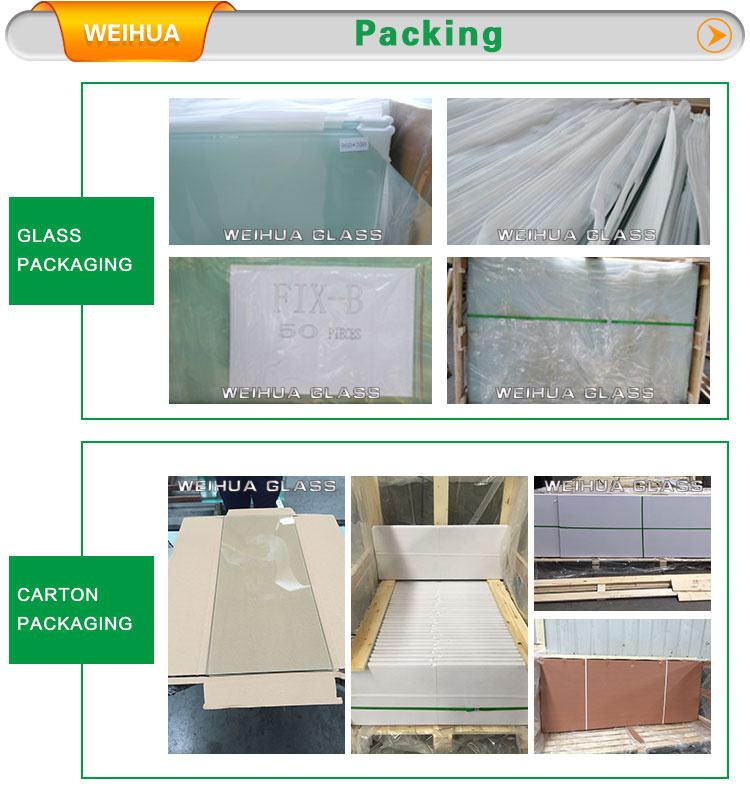

Interlay paper or plastic between two sheets, Seaworthy wooden crates, Iron belt for consolidation.

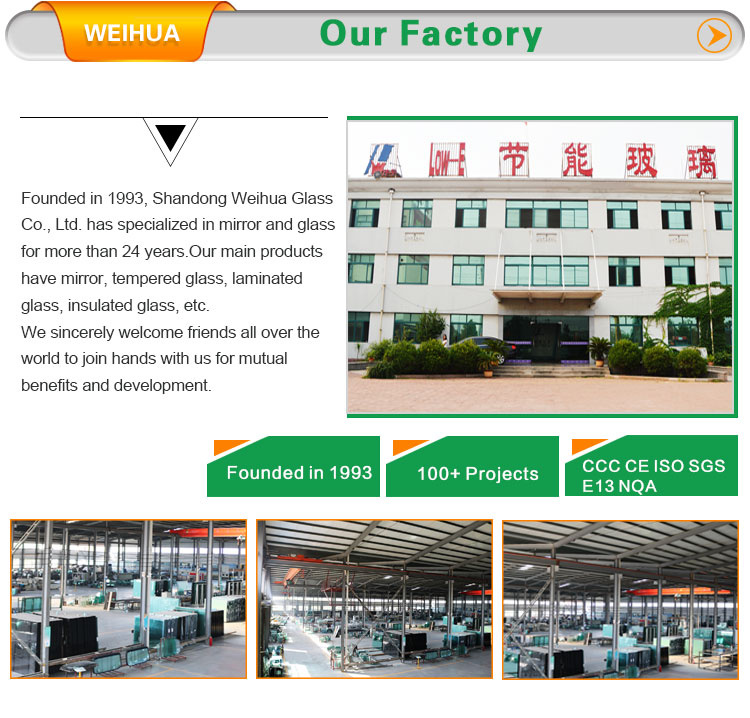

Since 1993, Shandong Weihua Glass Co., Ltd. has been in the glass deep processing industry for 24 years.Equipment configurationfirst-class, advanced production technology.Our laminated glass and other glass products,The company has passed ISO9001: 2008 qualitysystem certification, the EU standard certification (CE),SGS field certification and the national security glass certification certification (CCC) .After 20 years of development,Weihua glass not only creates the brand, it is high-end quality, through continuous adhereness and innovation,Weihua glass to become the industry leader. But also with many outstanding enterprises work together to develop.

FAQ:
1.Do you provide Laminated Glass samples?
Yes, we give you free samples. Any customized size samples are acceptable.

2.How long time we can get the Laminated Glass sample?
We send the samples in 3 - 5 days after you confirm

3.How long for delivery time after pay deposit?
 Within 15 days after received deposit

4.What is about your payment?
Our payment term is T/T 30% in advance ,70% after get the copy of B/L .
You can payment  By L/C, T/T,  Western Union and company bank account
contact us
Welcome to inquire our products- Laminated Glass
Please tell me your requirements about the Laminated Glass ,such as size ,thickness ,and how many pieces you need. Of course, we also support custom, if custom, please give us your drawings or digital model,Once received your inquiry, we will provide you with our quotation as soon as possible.
