| Prod Model: |
pig nursery bed |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Base Material: |
Carbon Steel Pipe |
| Surface Finished: |
Hot DIP Galvanized |
| Dimension(mm): |
2.1 X 1.8/3.6meters or According to Requirement |
| Usage/Application: |
Piglet Nursery Bed |
| Accessory: |
Feeder and Drinker |
| Usage: |
Pig |
Product Description

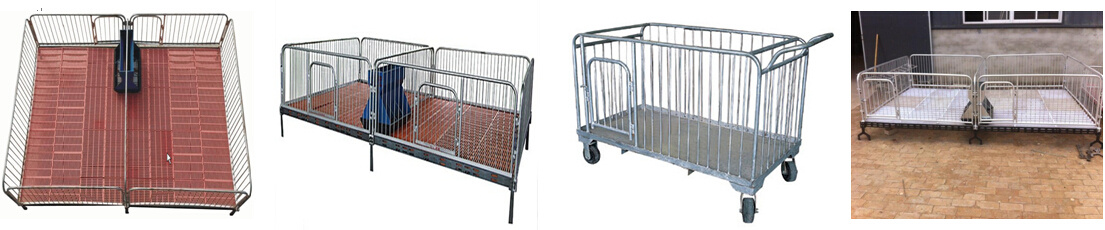

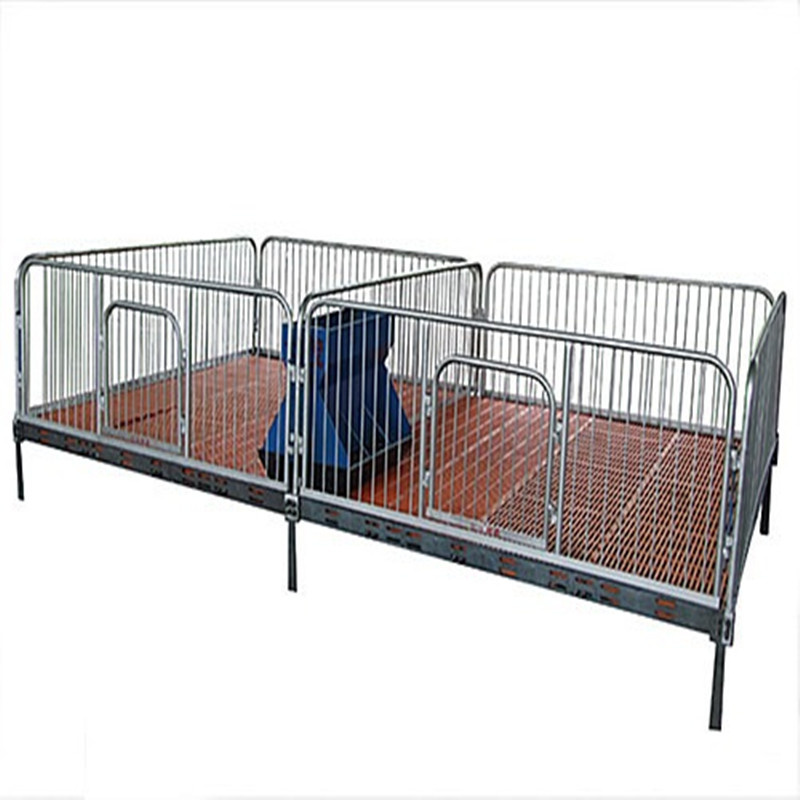

Sow obstetric bed/ Piglet nursery bed/ nursery bed /piglet care beds
Conservation bed size: 2.1 * 1.8 m (one set of ) 2.1 * 3.6 meters (2 sets of)
Conservation bed configuration:
Beam: ductile iron girder (weight 6.5kg)
Vertical beams: ductile iron girder (weight 8kg)

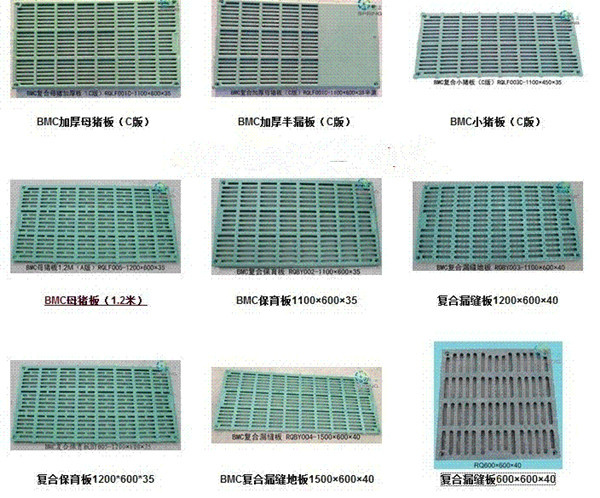

Floor: high strength composite plastic fecal leakage floor monolith
specifications: 60 * 70cm (weight 2.8kg)
Support legs: ductile iron foot
Pig fence: Frame: galvanized tube OD20mm, wall thickness 2mm, lined with 10mm
diameter hot-dip galvanized zinc bar, round bar spacing 65mm, all welded
joints brushed antirust lacquer 2 times for anti-rust treatment, to ensure that no
rust.
Other configurations: with cast iron double-sided tin bottom Aberdeen Fertility chute (can also be upgraded with stainless steel or stainless steel double-sided wet trough manger), and brand stainless steel pig drinking,
Curb Weight: 200kg 2 in groups
Real materials, quality assurance! Each part of our accessories are to undergo a rigorous quality inspection before assembly on the conservation, life is more than double the ordinary care bed.
Provide customized services, customers can provide the size, technology, material specifications, configuration requirements, customized production
Materials used:
- Carbon steel pipe ,Galvanized Steel ,Aluminum, Steel, Stainless Steel, Copper
- Goods dimension: according to drawings
- Processing machine: CNC punching, CNC bending, CNC forming, laser cutting,
TIG/MIG welding, assembly.
-Surface Finishing: polishing,Hot dip galvanizing, Powder coating,
painting, plating, anodizing, Sandblasting, etc.(Thickness of the tubes of different sizes can be customized navigation bar according to customer needs)| Hot Dip Galvanized Piglet nursery bed |
| Material | Carbon Steel Pipe ø20mm and ø14mm |
| Finish | Hot Deep Galvanised |
| Size | 2.1*1.8meters / 2.1*3.6meters |
| Accessory | Feeder and Drinker |
| Weight | 200kgs |
| 40 HQ |
|
