| Prod Model: |
SK005-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Hosptial ICU Bed |
| Certifications: |
Ce/FDA/ISO |
| Factory Type: |
Over 13 Years Manufacturer |
| Sample: |
Available |
| OEM: |
Available |
| User's Manual: |
Available |
| Spare Parts: |
1% Free |
| Warranty: |
2 Years |
| Service: |
Lifetime |
| Factory Location: |
2 Hours Driving From Shanghai |
| Material: |
Metal |
| Type Of Hospital Bed: |
Electric Bed |
| Folded: |
Unfolded |
| Using Ambient: |
Hospital |
| Numbers Of Function: |
Five-function |
| Certification: |
ISO9001 |
Product Description

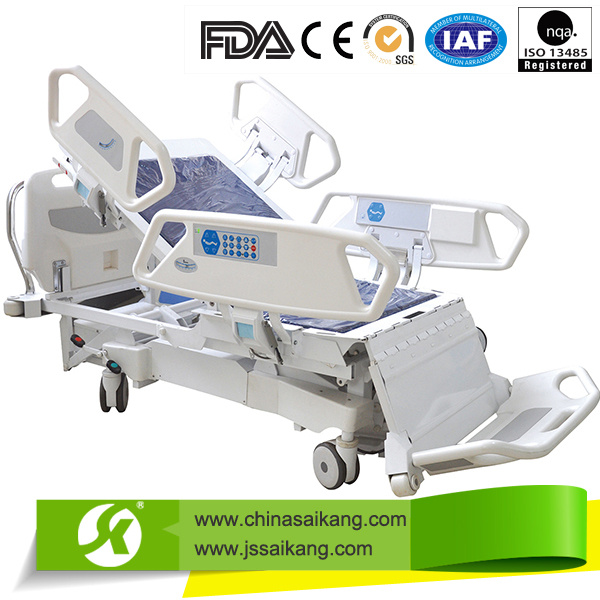

SK005-1 China Supplier Detachable Hosptial ICU Bed[Introduction]
High-end electric bed, can be used in ICU room
This bed is with FDA, CE approval
[Standard Parameter]
Model | SK005-1 |

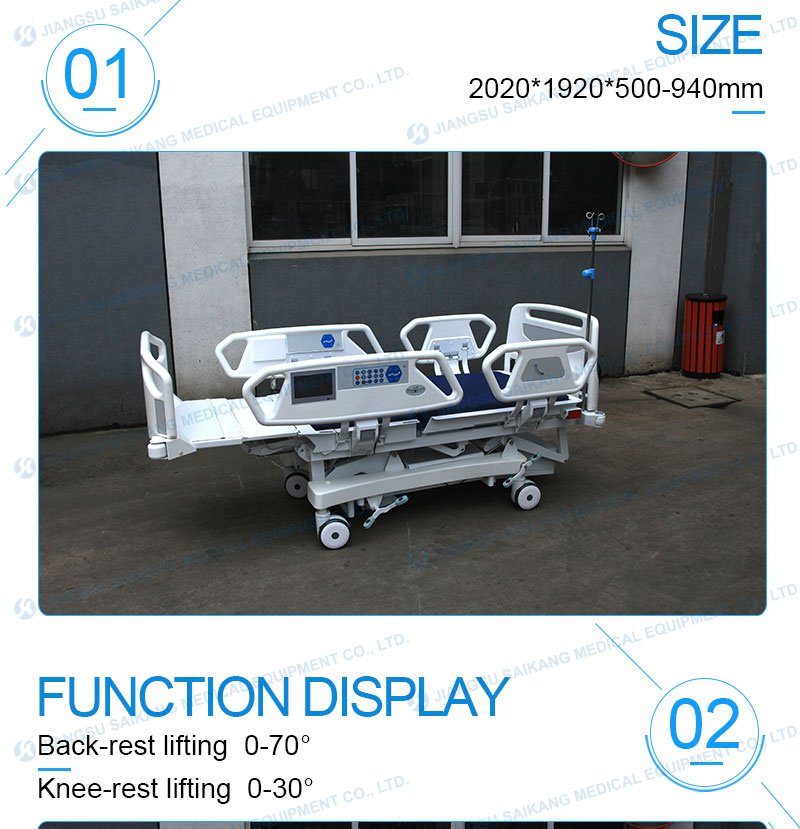

Overall length (extended) | 2020mm |
Overall length (not extended) | 1920mm |
Overall width | 995mm |
Patient platform length (extended) | 1920mm |
Patient platform length (not extended) | 1820mm |
Patient platform width | 820mm |
Maximum safe load | 250kg |
Back-rest adjustment | 0°-70° |
Knee-rest adjustment | 0°-30° |

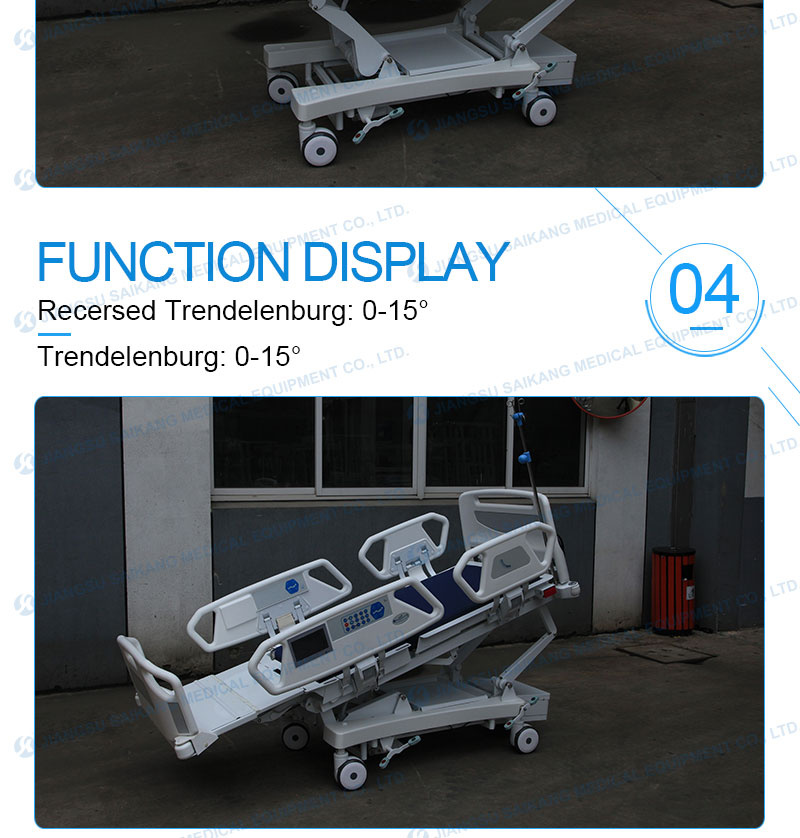

Trendelenburg / Reverse trendelenburg | 0°-15° |

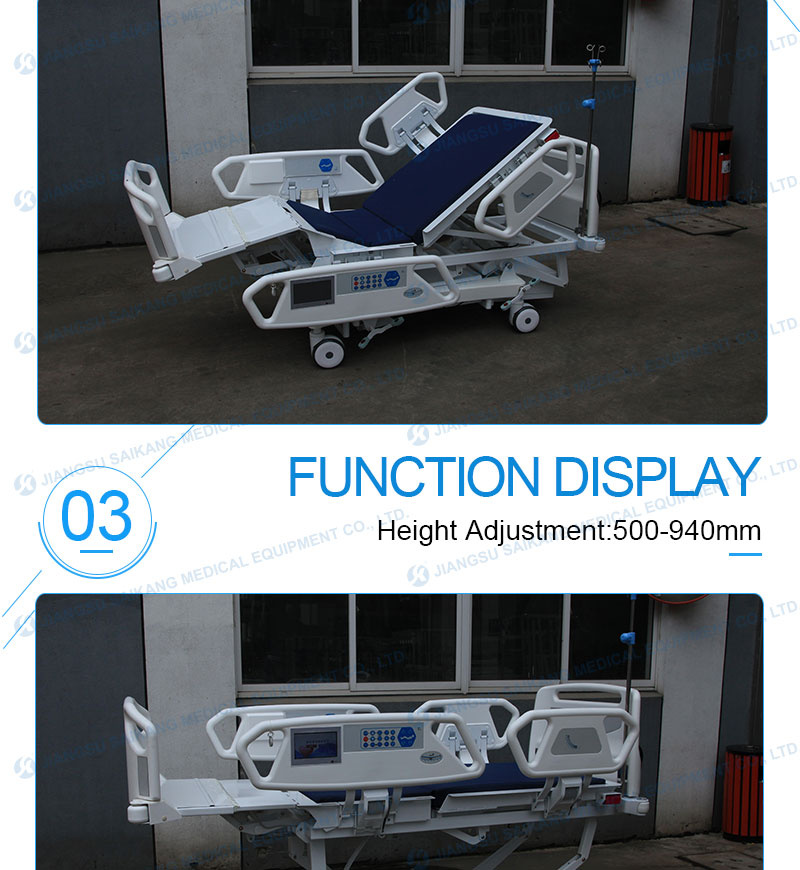

Height adjustment | 500-940mm |
Foot-part decline | 0°-90° |
Caster diameter | 150mm |
The length of the Railing | L985mm (Big) L630mm (Small) |
The Height of the railing from the platform | H370mm |
The Size of the Head Board | H530mm*W840mm Thickness: 38mm |
The Size of the Foot Board | H385mm*W840mm Thickness: 38mm |
The Diameter of the bumper wheel | Dia. 73.77mm |
The Diameter of the big knob ( For I.V. pole) | Dia. 43.6mm |
The thickness of bed platform | 2.2mm |
The thickness of bed structure | 2.8mm |

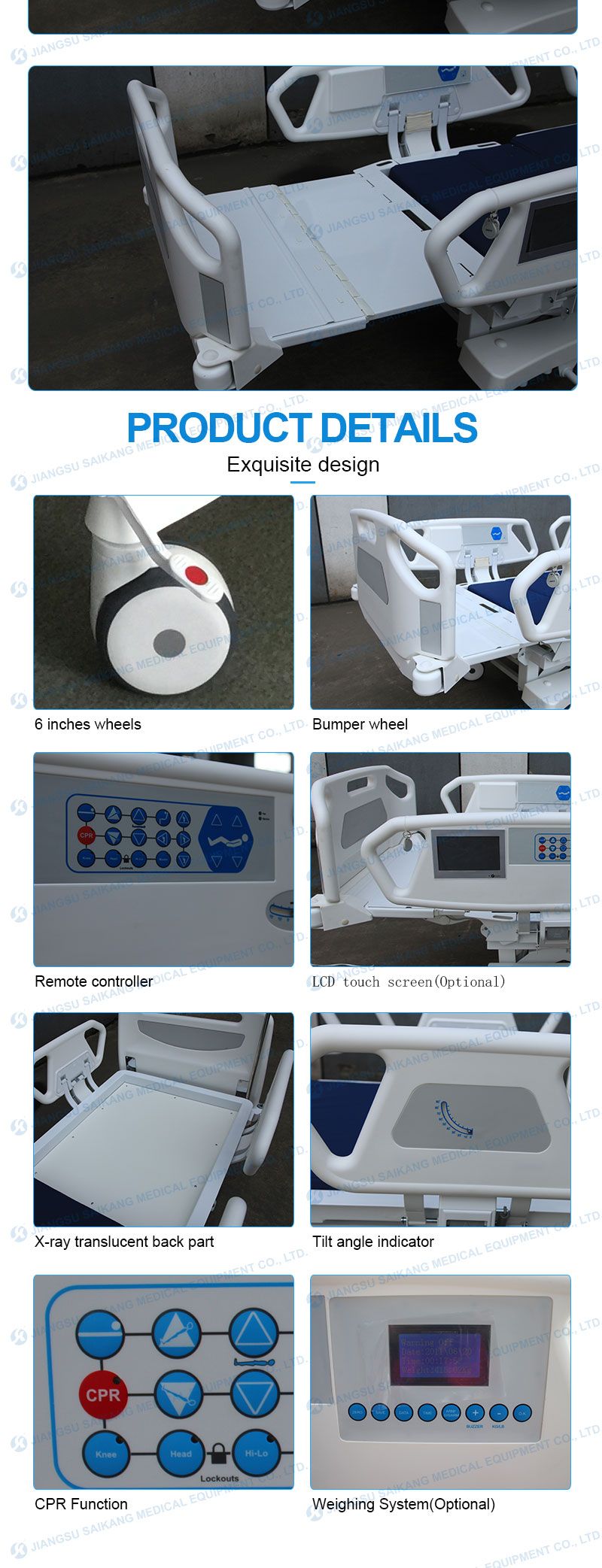

[Standard Function]
- Linak motor and control box
- Supplied with back-up battery switch
- Detachable head and foot board -- quick/easy one step for CPR
- CPR handle, dual side, with clear red mark.
- Electric CPR-Instant release of back part
- Manual CPR-All functions go back to origin
- Remote controller built in railing, both side: inside for patient easy controlOutside for nurse control
- Bed light button at the patient control panel
- Title angle indicator in railing: one for backrest, one for trendelenburg
- Two lights in the railing: one indicate the" power", one indicate the "brake not set"

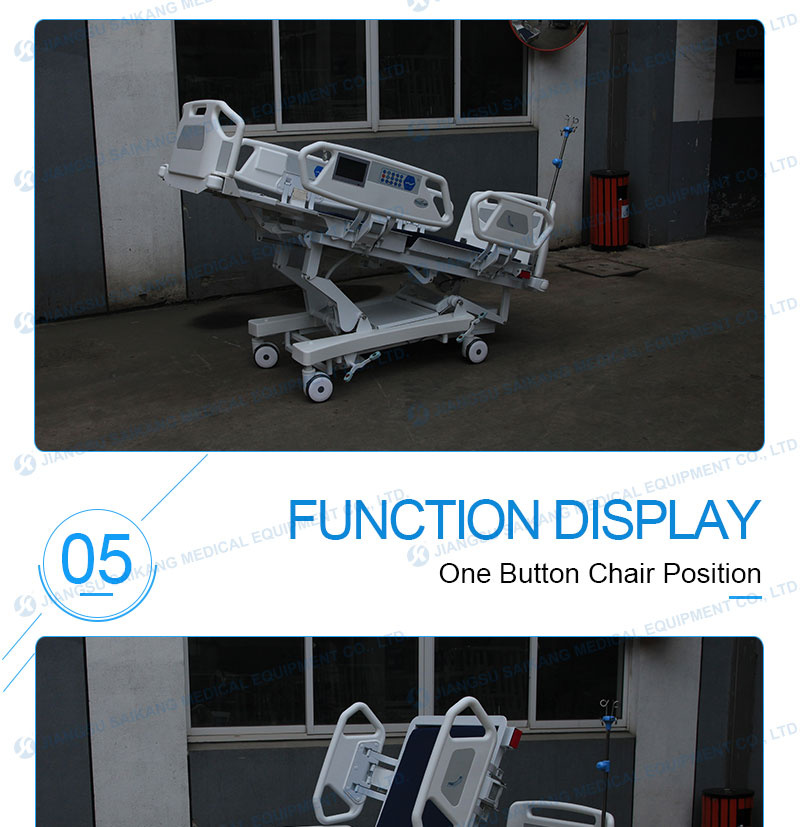

- One button chair position

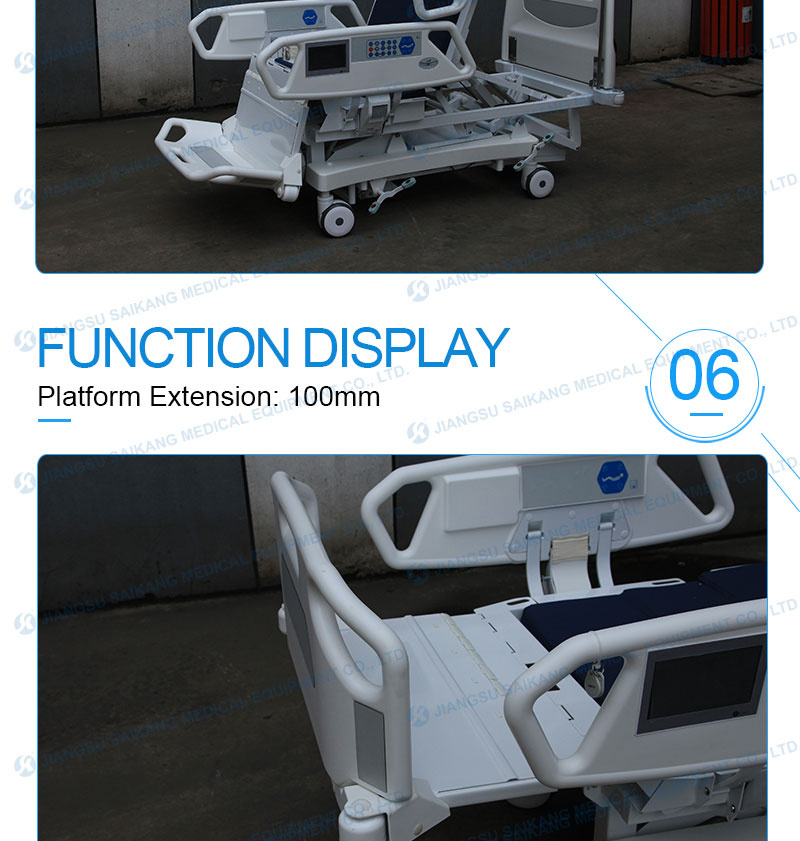

- Bed length can be extended when needed
- Chrome plating push handle, 2 position adjustable
- With Bumper wheels,
- With I.V. pole, stainless steel grade 304, Height adjustment from 660mm-1315mm (from platform to hook), big lock knob 43.6mm dia. Four prevision for I.V. pole
- With Drainage bag hooks on both sides
- Central brake system with 6" wheels
- Integrated base with all cable and motor inside, the bed can be washed
- X-ray translucent back part, C-arm function available.
- ABS railing is below bed platform when folded down, 2.5cm height difference
- Brake panel below head board, marked red mean: lock, marked green mean: release
- Plastic cabs cover each nut
Weighing System: Its in-bed scale system increase efficiencies by taking accurate weight readings with the patient in any position. Weight readings system, LCD display on side railing
