| Prod Model: |
THR-IC-528B ICU Bed |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| ICU Bed Dimension: |
L2330mm * W1050mm * H530mm-710mm |
| ICU Bed Board Size: |
1955mm*900mm |
| ICU Bed Load Capacity: |
250kg at Max |
| ICU Bed Material: |
Steel Framework, ABS& PP |
| ICU Bed Packing Size: |
2080mm*1060mm*610mm |
| ICU Bed Head & Foot Board: |
Detachable, in PP Plastic Material |
| ICU Bed Side Rails: |
Foldable, PP Material |
| ICU Bed Board: |
with Soft Connection |
| ICU Bed Castor: |
150mm Dia. Swivel with Central Locking System |
| I.V Pole Stand: |
1PC Stainless Steel |
| Material: |
Metal |
| Type Of Hospital Bed: |
Electric Bed |
| Folded: |
Unfolded |
| Using Ambient: |
Hospital |
| Certification: |
CE |
Product Description

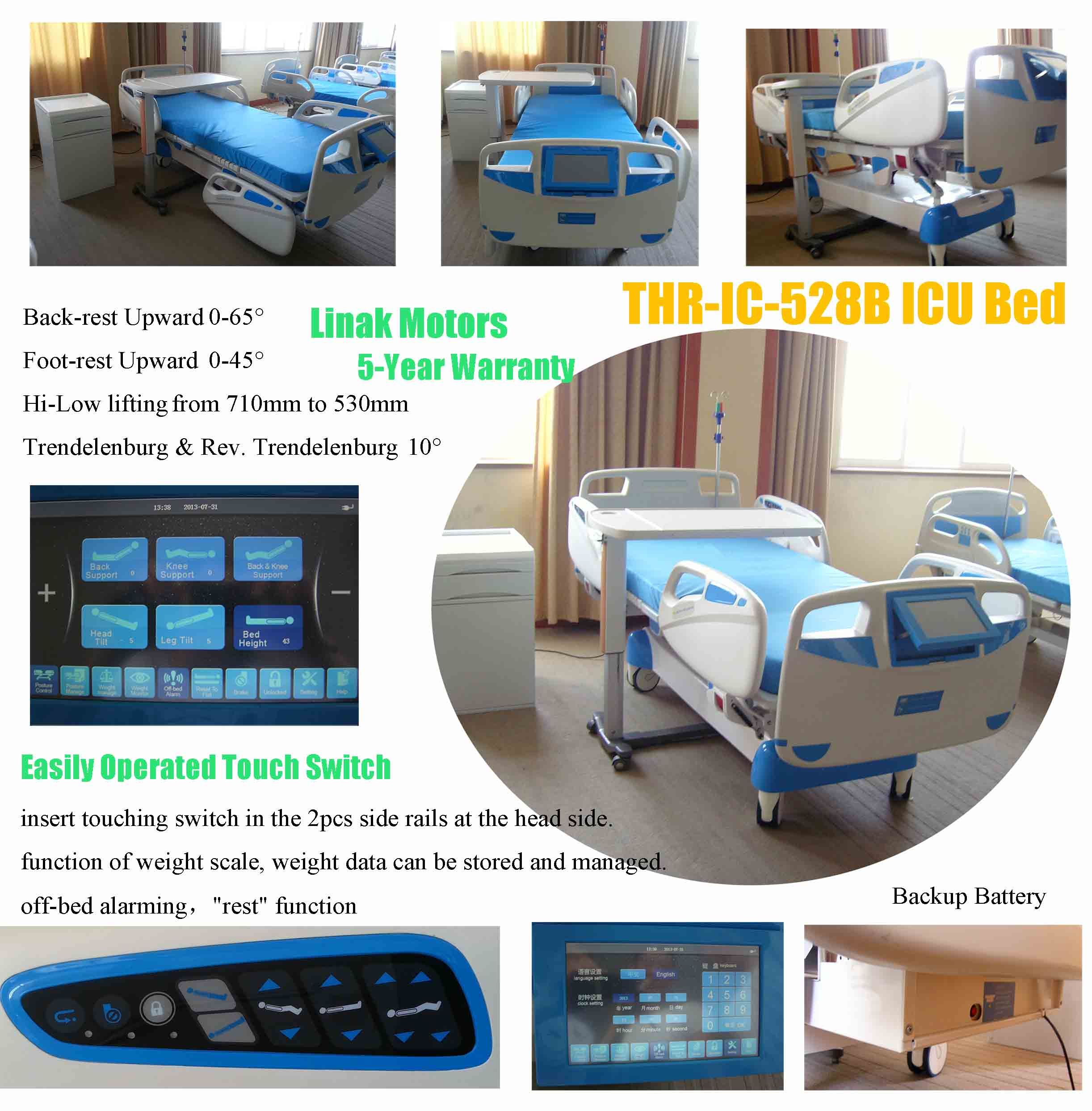

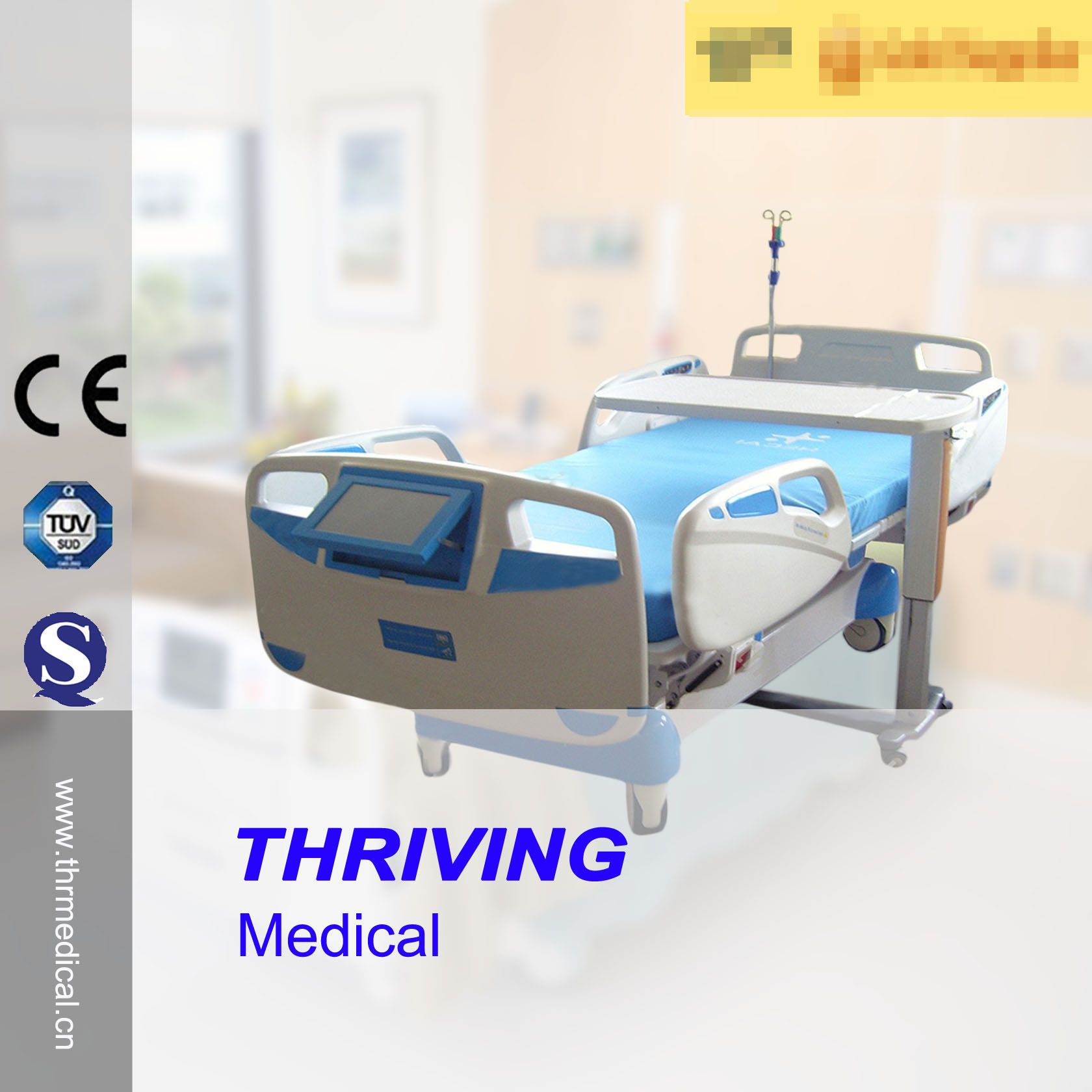

THR-IC-528B Professional Electric ICU Bed
with Weight Scale, Multi-function available, with imported Linak motors, enjoying 5-year warranty.
this ICU bed height lifting and down, ICU bed back-rest & leg-rest are adjustable too. with touch screen controller to control all function easily. Your idea choice for hospital ICU Bed.
THR Advantage:
1, Original Manufacturer, the producing workshop more than 40000 Square Meters;
2, All parts are produced by our factory, professional in ICU bed, trolley, Stretcher, Medical Equipment and Funeral products etc.;
3, Strict Material Inspection & Quality Controlling;
4, ISO9001, ISO13485(SGS) Quality Management System;
5, More than 10 years producing and engineering experience;
6, CE (SGS) Certificate;
7, Exported to more than 30 countries
THR Medical,
Welcome you to Contact Us Everytime!our business line:
Hospital Bed, Emergency Cart, Stretcher etc. those Hospital Furniture;
Sterilizer, Ultrasound Scanner, Patient Monitor, Anesthesia Machine etc. those Medical Equipment.
| ICU Bed Dimension: | L2330mm * W1050mm * H530mm-710mm |
| ICU Bed board: | 1955mm*900mm |
| Net Weight: | 158kg |
| Load Capacity: | 250kg at max |
| Packing | 2080mm*1060mm*610mm |
| ICU Bed Material: | steel framework, ABS & PP for plastic part |
| Head & Foot Board | detachable, in PP plastic material, can be fixed when assembled |
| Side Rails | 4pcs foldable PP material, controlledy by gas spring |
| ICU Bed board: | with soft connection, make the bending of the bed board more smooth to let the patient more comfortable |
| Castor | 150mm dia. Swivel with central locking system controlled by electric |
| I. V Pole | Reserving I.V pole mount bracket, at 4 corners of the bed frame |
| | |
| Back-rest Upward | 0-65° |
| Foot-rest Upward | 0-45° |
| Hi-Low lifting | from 710mm to 530mm |
| Trendelenburg | 10° |
| Rev. Trendelenburg | 10° |
| all achieved by electrically controlled,with indicator light to show the work status. |
| | |
| Touching Switch | with easily operated touching switch, solve the problem of limited service life of mechanical keypad and keypad invalid due to constantly operating. |
| Patient Switch System | insert in the 2pcs head side rails,for patient adjust bed position easily |
| Nurse Switch System | a 10.2" touching switch system at the bed foot board, display all the bed position figures, with patient lock-out system, for nursing person's operation. |
| "Reset" Function | bed can back to " Zero" position quickly |
| Backup Battery | for emergency power failure |
| off-bed alarming | Yes |
| Weight Scale Function | weight data can be stored and managed |
| Memory Function | bed position data can be stored and callout |
| ICU Bed Mattress: | Optional |

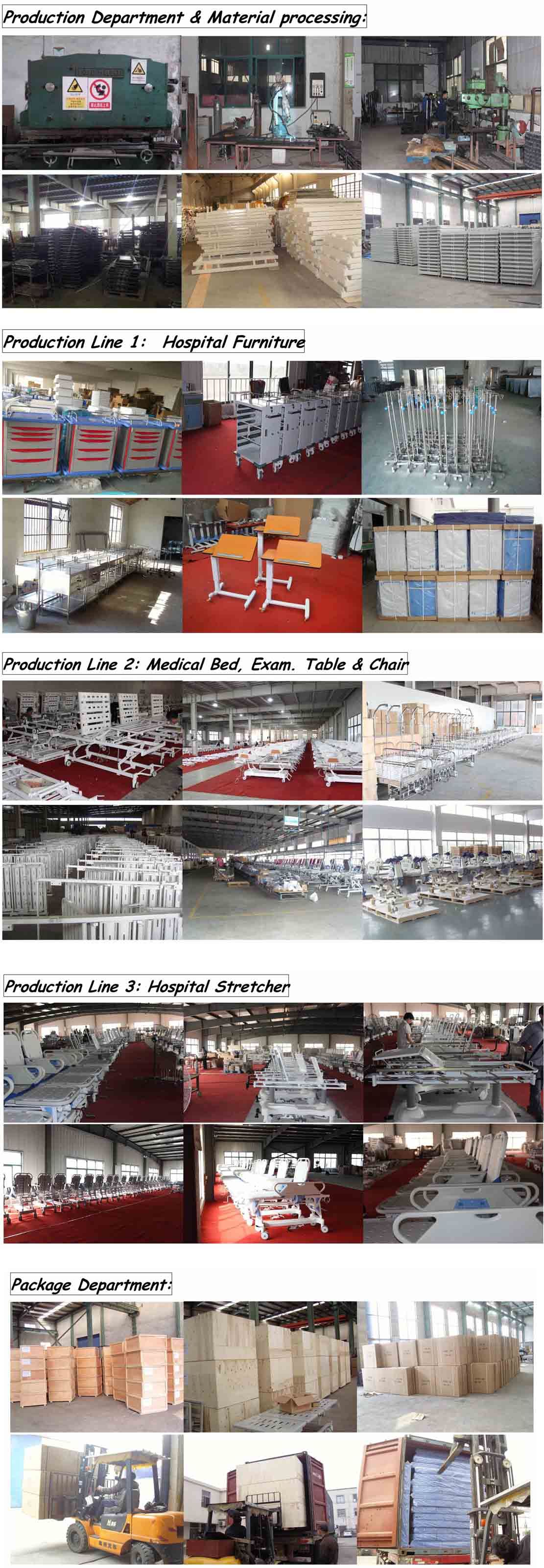

Suzhou Thriving Medical Equipment Corp., was established in 2000. We are mainly engaged in hospital furniture, medical equipments, and funeral products etc. With strong technical force, advanced equipment and five large-scale production lines, we can complete deep processing of various metal products, specializing in the furniture and hardware products. In order to best meet customers' requirements, we have implemented a quality control system that is in strict accordance with ISO9001 standards.
Abut on Shanghai, Suzhou, Wuxi, Changzhou and other medium-large cities, we enjoy very convenient transportation arising from the Huning Expressway, Riverine expressway, Zhangjiagang port and Shanghai port. This advantageous geographical position has also facilitated our products' exportation and helped us expand overseas market and seek for overseas partnership.
Adhering to the management principle of 'Honesty, Dependence, Advance, Innovation', we offer excellent service and superior quality products at very competitive price to customers from around the world. Please feel free to contact us for more details.
