| Prod Model: |
hl-df32 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia |
| Accessories: |
Cusstomized |
| Sink: |
PP & Epoxy Resin & Ceramic |
| Powder: |
220V50Hz, 380V/50Hz or Customized |
| Warranty: |
5 Years |
| Uality Certificate: |
ISO 9001/ISO 14001 |
| Delivery: |
7-10 Working Days |
| Kind: |
Desk |
| Folded: |
Unfolded |
| MOQ: |
1PC |
| Size: |
Customized |
| Material: |
Optional |
| Usage: |
Lab |
| Color: |
Optional |
Product Description

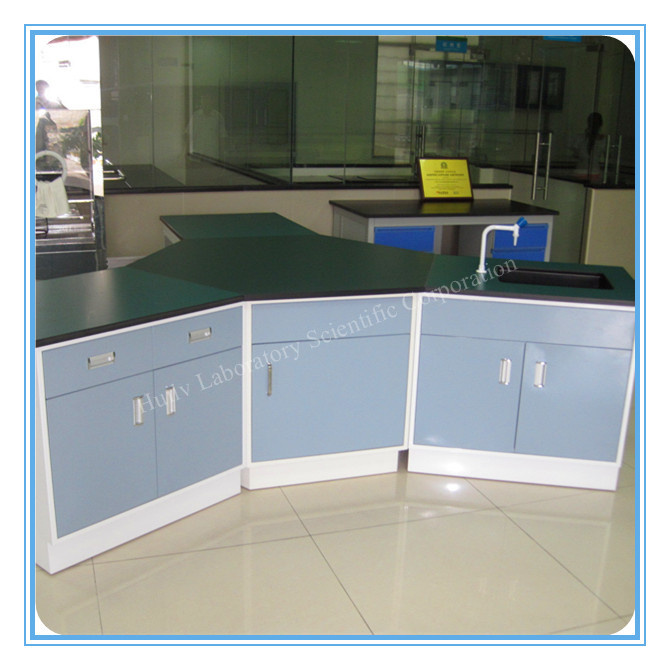

Acides and alkalies resistant worktops for steel lab table.
Optional 1: Steel & wood structure
Optional 2: All steel structure
Frame: C frame steel structure, 60*40*2mm rectangular square steel tube spraing epoxy resin power(75μ M), all the steel parts by pickling, phosphating treatment, surface by the epoxy resin power coating, high temperature curing treatment, the acid and alkali corrosion, abrasion, scratch and impact cutting.
Worktop:
Optional 1: 12.7mm / 15mm / 19mm/ 25mm phenolic resin worktop.
Optional 2: 19mm/ 25mm epoxy resin worltop.
Optional 3: 20mm creamic.
Optional 4: 30mm granite marble.
Chemicals resistant, the acid and alkali resistantm high temperature curing treatment, abrasion,
Scratch and impact cutting resistant, monolithic smooth, non-glare finish with 3mm bevel edging.
Optional1: Wall cabinets and doors and drawers panel: Used 1.2mm thick of cold-rolled steel sheet production, all the steel parts by pocking, phosphating treatment surface by the epoxy resin power coating, high temperature curing treatment, the acid and alkali corrosion, abrasion, scratch and impact cutting.
Optional 2: Wall cabinets and doors and drawers panel: Made of 18mm high pressure semi-solid wood (MDF) coverd with 0.4mm high pressure laminate(HPL) on both sides with 3mm PVC edging strips.
Optional 1: The size of the cabient and drawers.
Optional 2: Movable cabinets.
Optional 3: Lockable cabients.
Optional 4: With galss door.
Optional 5: Adjustable shelves.
Sideway: Semi-self closing three section slide rail, no noise.
Hinge: 175° Degree opem type high quality hinge.
Handle:
Optional 1: Longer embedded aluminum handle with epoxy coating.
Optional 2: Stainless steel handle.
Optional 3: Smalss embedded alumunum handle.
Sink
Optional 1: 1.2mm stainless steel sink,
Optional 2: High grade PP sink.
Optional 3: High grade epoxy resin sink.
Different size, resistant to most chemicals, such as aqua regia, matt finish on lip, resistant to scratch & consistent with most workyops finish. Can effecitively prevent the most kinds of chemical acids and alkali corrosion resistance. Denditu of injiection molding basin.
Faucet: Solid brass & stainless steel.
Optional 1: Single way gooseneck faucet.
Optional 2: Double way faucet.
Optional 3: Three way gooseneck faucet.
Optional 4: Cold & hot faucet, gooseneck, single mixer.
Solid brass, high gloss epoxy power, resistant to most chemicals, UV fading & heat, 500000 life cycles, water static perssure Max 20 Bar; Laboratory dedicated copper main material, the epoxy resin coating, PP tap.
Gas valve:
Optional 1: Desk mounted single way.
Optional 2: Desk mounted, double way fitting at 90° .
Optional 3: Desk mounted, double way fitting at 180° .
Optional 4: Desk mounted, triple.
Optional 5: Desk mounted, quadruple.
Reagent rack:
Optional 1: Alumunum frame, glass shelves.
Optional 2: Steel frame, glass shelves.
Optional 3: Steel frame with top shelves.
Company Information
Company name |
Guangdong Huilv Laboratory Equipment Scientific and Technological Co.,Ltd |
Year Founded |
1995 |
Employee number |
more than 150 factory workers |
Month Supply Capacity |
5 million RMB |
Certification |
ISO 9001:2008 & ISO 14001:2004, CE & SGS & TUV |
Company address |
Tianhe District, Guangzhou, Guangdong, China |
Nearby transportation
(less than one hour) |
Baiyun airport |
Guangzhou east railway station |
Canton Fair Pazhou exhibition hall |
Guangzhou railway station |
Golab famous customer |
1)Novartis in Pakistan |
2)Dutch Health BV in Netherlands |
3)Sustin Air Systems in USA |
4)Herbelife in China |
Product features
Working surface | Laboratory specialized 12.7mm |
| Fume hood sizes | 1200*800*2350mm
1500*800*2350mm
1800*800*2350mm |
| Drawer | One door ,one drawern or up to clients |
| Inner liner ,air baffler | 5mm compact grade laminate, high thermostability, corrosion-resistant |
| Vertical rising sash | 5mm explosion-proof FRP(Fiberglass reinforced plastics ),height adjustment700mm( |
| Fume hood Lighting | Light illuminance:140LUX ,30wDaylight lamp in anti-corrosion cover |
| Blower(not included) | Axial fan, 2100m3/h,0.25kw.220v,50HZ |
| Exhauat pipe(not included) | ¢250/300mm pipe |
| PP sink | anti-acid, corrosion-resistant, anti-solvent,thermostability |
| Chemistry faucet | copper, sparyed by expoxy resin, ceramic valve, imported pp handle |
| Technique index | Noise:60DB,air rate:0.5m3/s
According to OSHA(Occupational Safety and Health Administration)- AppendixA,sectionC.4(g), The airflow rate is 0.3-0.5m/s |
| Base cabinet | Cold-rolled steel, parkerised by acid, coated by expoxy resin |
