| Price: | US $ 8400-8500/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | FCT-7090C&W-4S |
|---|---|
| Rotary Length: | 800mm |
| Spindle Power: | Water Cooling 1.5kw*4 |
| Motor Driver: | Hybrid Servo |
| Transmission: | Xz Ball Screw, Y Gear Rack |
| Xyz Rails: | Taiwan PMI |
| Spindle Layout: | Vertical |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | ISO |
| Spindle Number: | 4 Spindles |

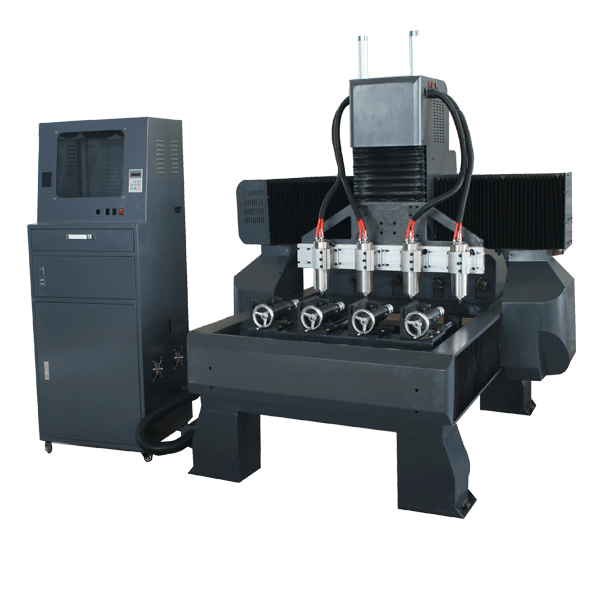

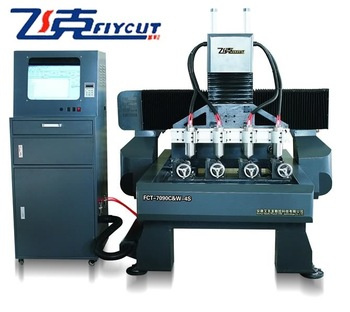

CNC Flat-Rotary Multi-heads Engraver7090
Features:
1.It can engrave several materials at one time, which greatly increasing the working efficiency.
2.It can do not only rotary engraving but also flat engraving.
3.Movable working table with high engraving accuracy.
4.Inverter,reducer and spindle are one attached one which make the machine working more stablely and efficiently.
5.XYZ axis use anti-dust system, prevent dust during working, make sure the long lifaspan of square parts.
6.Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCA.
Technical parameters:
Model | FCT-7090C&W-4S |
Rotary diameter | 230mm |
Rotary length | 800mm |
Flat working size | 700×900×200mm |
Spindle power | Water cooling 1.5KW×4 |
Spindle rotate | 6000~24000RPM |
Tool diameter | 3.175,4,6mm |
Machine structure | Industry square tube structure |
Transmission | XZ ball screw,Y gear rack |
XYZ rails | PMI square rails |
Dust-proof system | XYZ high quality dust cover |
Mechanical accuracy | less than 0.03/300mm |
Engraveing speed | 8000mm/min |
Data transmission | by pc connection directly or USB |
Support format | G code or HPGL |
Working voltage | AV220V/380V 50Hz |
Net weight | 600kg |
Application:
Rotary engraving: Making relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, the human body, avatar, buddha statue, etc.
Flat engraving: Antique reproduction furniture, Solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making, etc.
Samples:
OurServices
1.Under normal usage, 1 year for the whole machine,lifelong technical support.
2.Free technical support for lifetime, including training at factory, door to door service, such as training/ installment/ adjustment / maintenance.
3.Door to door service, you just need to bear round-trip tickets and accommodation.
4.Free installation,testing,training before shipping.
5.Advice for the best solutions for your requirements.
FAQ
1.How about the payment?
T/T in advance. We can accept 40% deposit before mass production , and balance paid to us before delivery date.
2.How long is thedelievery time?
For standard machines, it would be 7 days; For non-standard machines and customized machines according to clients specific requirements, it would be 14~25 days.
3.How about shipment details?
On the basis of FOB or CIF price, we will arrange shipment for you.Others will be arranged by yourself.
