China Cheap CNC Plasma Cutting Machine Table Model

Prod Model:	TZJD-1325P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Red, White, Blue, as Demands
Working Area:	1300mm*2500mm
Plasma Power Supply:	40A/60A/100A/160A/200A
Structure:	Rack Gear
Drive Motor:	Stepper, Servo
Control System:	DSP Handle
Software:	Ucancam Plasma Nest V9
Interface:	USB
Necessary Part:	Air Compressor System, Oil Lubircation System
Guide Rail:	Taiwan Hiwin Square Linear

Product Description

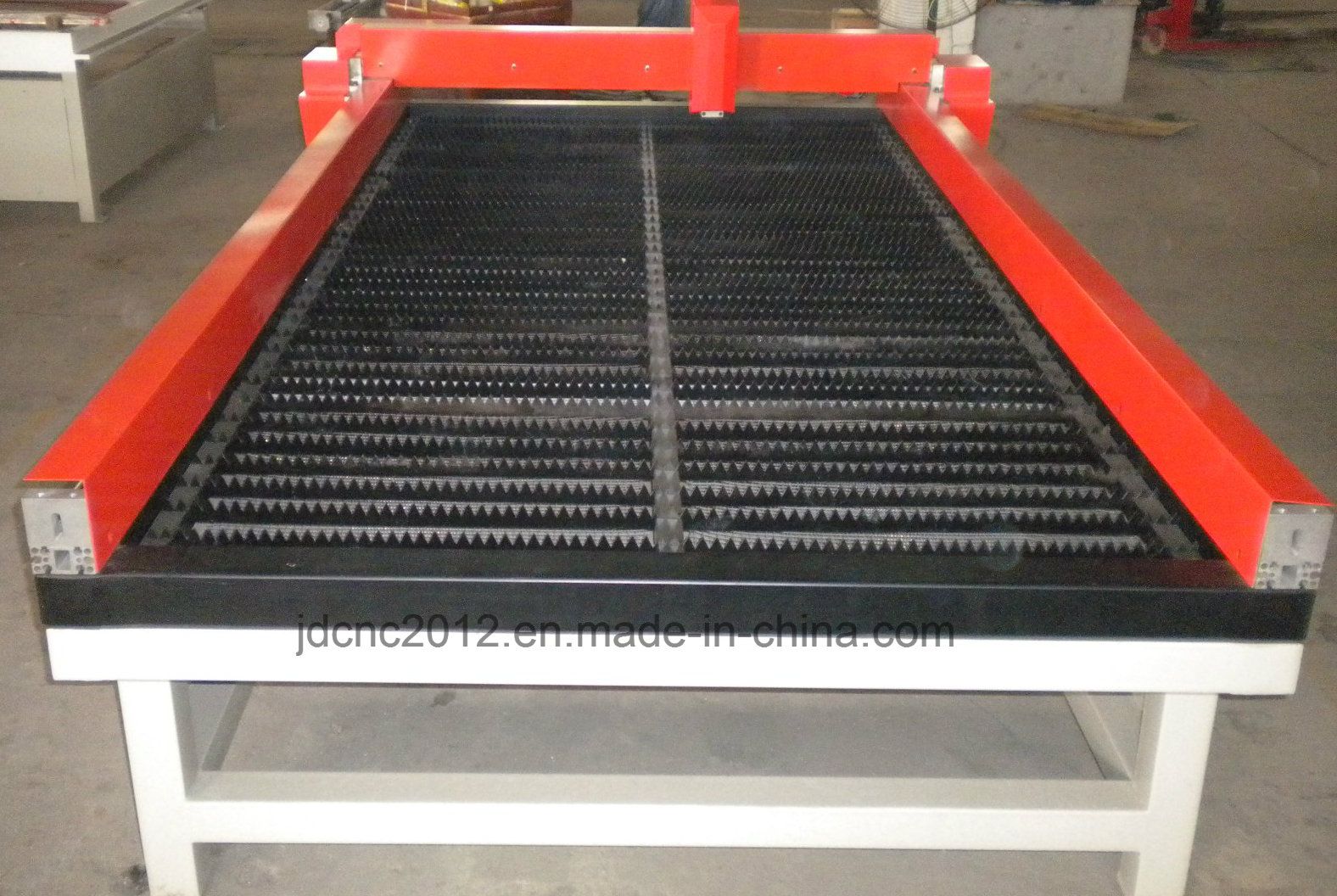

China Cheap CNC Plasma Cutting machine Table model TZJD-1325P

1. Machine features:
(1) Welded structure of thickening square tube, together with Taiwan imported guide rail to ensure running speed and accuracy. Strong enough & non-distortion, rigid good.
(2) Cutting head with cooling system can quickly cool surface of material to avoid burr and residue.
(3) Power supply adjusts current according to different thickness of the material to ensure cutting materials without burr.
(4) Processed Materials of small and neat kerf, without secondary processing.
(5) Advanced digital control system, large capacity storing function, convenient to read and process.
(6) Compatible software: Ucancam, Type 3, Artcam, etc.
(7) Adopt well known plasma power supply and domestic cutting torch power supply.
(8) High configuration with Torch Height Control system, that guarantee the working result successfully.
(9) USB interface operating, very conveniently to operate.

2. Applicable material:
Such materials as steel plate, aluminum, iron, Copper; Galvanized sheet, White steel plate, Titanium plates, copper plate, aluminum plate, etc.

3. Technical parameters:

Working area	1300mmx2500mm
Processing thickness	0.1-15mm
Manufacture thickness	18mm-50mm
Cutting speed	100-8000mm(315.2in)/min
InVoltage	8.5KW-10.5KW
Input voltage	3-phase 380V
Power frenquency	50HZ
Plasma currency	100A
Mode of file transfer	USB Interface
Working method	Untouched are striking
Surroundings for software	Windows98/2000/xp/7
Optional power source	Hypertherm, Cut-Master, THERMADYNE
Plasma Generator	American THERMADYNE
Packing size	10CBM
G. W.	1200KGS
Motors	Steper motors/Servo motors
Control system	DSP Controller
Remarks	Configured with Taiwan Servo Speed Reducing device
Machine availables	THC(torch height control system), Air compressor system, Ucancam Plasma Nest V9 software,

4. Packages: Solid seaworthy wood box package with steel belt.

5. Guarantee and After-sales service:
(1)  The quality warranty period is 24 months which counted from the day that the shipping commodity arrived at the port of destination, excluding the physical damage, We will provide you with the fittings for free during the guarantee period. But please kindly note that all users are kindly required to return us the damaged fittings by courier with your charge before we send back the alternative fitting parts. After warranty period, the fittings which you need repaired or changed should be in charge by you, and it will be reasonable charged.
(2)  Since it is difficult for our engineer to maintain the machine by face to face, we will create a plenty of online-supports. That is to say, we will give you technical supports by email, MSN/Skype, camera, video, telephone and fax when user meets some problems on installing, operating, adjusting, maintaining, and so on.
(3) When you meet some problems with installing, using or adjusting, but our online-support can not solve it, we can offer Door to Door service. If you need our engineer(s) to assemble or maintain or adjust the machine in your area, you would like to be required to assist us to go through the visa formality, traveling expenses prepaid and accommodation arrangement during the business trip and the service period before they dispatched. And please kindly arrange the translating person for the service engineer during their service period. Otherwise, you also can arrange your engineer to come to visit our factory to get a long-term free technical training.

6. Traning to use:
(1)  We will supply you with the operation and installation manual in English version together with the machine, including introduction for the composing of equipment, working principle, common knowledge of computer, controlling principle of electronic devices, daily maintenance measures. Personal demonstration will be supplied for equipment installing, adjusting, operating, programming of computer and common malfunction eliminating measures, etc.
(2)  We will supply you with brochures for simple trouble shootings of the machine which can help you deal with the common problems happened unexpectedly. Meanwhile, one set of "Instruction Book", "Operation Manual" and "Training Video Disk" for machine / software will be also sent to you together with the machine that could be easily understood and kindly handled by you and your customer.

7. Company information:
Tengzhou Jianda CNC Machine Co., Ltd specialized in woodworking machine,advertising machine, marble/stone engraving machine, laser engraving cutting machine, metal mould machine, double heads engraving machine,cylinder engraving machine, etc. The company was one of companies that can research & develop the advanced CNC Machines, which have laid the foundation in the domestic market. our machines have already exported to USA, Canada, England, Australia, Russia, India and so on.

8. FAQ:
(1) How long is the delivery time?
For standard machines, it would be 5-8 days; For non-standard machines and customized machines according to client s specific requirements, it would be 8 to 15 days.

(2) How about the payment terms?
T/T, West Union, L/C

(3) Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.

(4) If some problems happened to this machine during warranty period, what should I do?
We will supply free parts in machine warranty period if machine have some problem. While we also supply free after-service forever, so any doubts, just let us know, we will give you solutions in 24 hours.

(5) What is the MOQ?
MOQ for our products is 1 set machine, we could send it to your country port if you tell detail information about your country port.

9. Contact information:
Mobile: +86-18615627569
