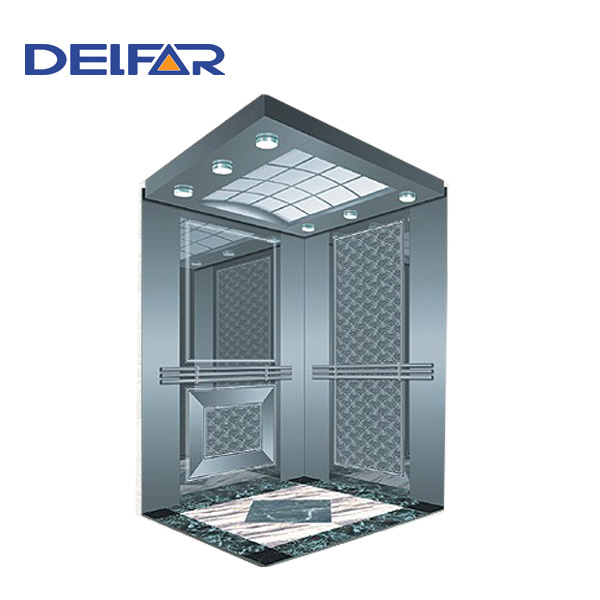

China Building Home Elevator Lift

Prod Model:	DP60/DPN60
Markets:	Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Passenger Lift Standard Car Wall:	Hairline St.St. Car Wall
Passenger Lift Car Door Finish:	Hairline St.St.
Passenger Lift Main Floor Landing Door:	Main Floor Hairline St.St.
Passenger Lift Other Floor Landing Door:	Painted Steel
Passenger Lift Standard Floor:	PVC
Passenger Lift Standard Ceiling:	Arched Acrylic Lighting Decoration
Passenger Lift Standard Cop:	DOT Matrix Hairline St.St. Faceplate
Passenger Lift Standard Lop:	DOT Matrix Hairline St.St. Faceplate
Driving Type:	AC Elevator
Capacity:	400-2100kg
Persons:	6-21pers
Speed:	1m/S-2.5m/S

Product Description

1.
Delfar SMR elevator applies industry-leading permanent magnet synchronous technology, by energy conservation and environmental protection and remarkable drive performance, it saves architectural space and cost, providing elevator solutions of high space value to high-rise residential buildings, office buildings, hotels, office, schools and various public places.
Delfar MRL elevator is low energy consumption-based. It fully considers building space's utilization rate and cost. Using compact layout and flexible design style and cleverly integrating all kinds of buildings, it is the first choice for modern individualized buildings.


2. Standard decoration
1. VVVF drive
2. VVVF drive for door operator
3. Independent running
4. Full load automatic bypass
5. Door open time automatic adjusting
6. Reopen with hall call
7. Express door closing
8. Car stops and door opens
9. Registered car call cancel
10. Direct parking
11. Light curtain protection
12. Designated stop
13. Overload protection
14. Anti-stall timer protection
15. Start protection control
16. Inspection operation
17. Fault recording
18. Repeated door closing
19. Up/down over-run and final limit protection
20. Downward overspeed protection device
21. Upward overspeed protection device
22. Micro-touch button for car call and hall call
23. Floor and direction indicator
24. Emergency car lighting
25. Inching running
26. Five way intercom
27. Bell
28. Fire emergency return
29. Car ventilation, light automatic shut off
30. Shut-off keyswitch on ground floor


3. Company information
Delfar Elevator Co., Ltd. Is a professional elevator company who designs and manufactures complete elevators, escalators and moving walks, as well as elevator parts. The company covers a land area of over 40, 000 square meters with more than 17, 000 square meters of factory houses and 3, 000 square meters of office area. Currently, 135 employees work for DELFAR, which includes 52 engineering technicians.


4. Packing:
To be packed in strong wooden cases, suitable for long distance ocean transportation and well protected against dampness, moisture, shock and rust.


5. Payment Term:
The buyer shall pay 30% as the down payment of the total contract value by T/T to the Seller' account within 7days after specification, layout confirmed and contract signed.
The buyer shall pay the balance 70% of the total contract value by T/T to the Seller' account 15 days before shipment.

6. Minimum order: 1 unit

Small machine room passenger elevator

Persons	Rated Capacity (kg)	Rated Speed (m/s)	Door opening size (mm)	car size(mm)	Hoistway size (mm)	Machine room size(mm)	Top floor height(mm)	Pit depth(mm)	Max traveling height (m)
			D.WxD.H	C.WxC.DxC.H	H.WxH.D	MR.WxMR.DxMR.H
8	630	1	800X2100	1400X1100X2400	2000X1700	2000X3000X2200	4400	1400	40
		1.5					4500	1500	60
		1.75					4600	1500	70
10	800	1	800X2100	1400X1350X2400	2000X1950	2000X3400X2200	4400	1400	40
		1.5					4500	1500	60
		1.75					4600	1500	70
		2			2000X2150	2000X3400X2500	4900	1700	100
		2.5					5100	1900	120
13	1000	1	900X2100	1600X1400X2400	2200X2000	2200X3450X2200	4400	1400	40
		1.5					4500	1500	60
		1.75					4600	1500	70
		2			2200X2200	2200X3450X2500	4850	1700	100
		2.5					5100	1900	120
16	1250	1	1000X2100	1700X1500X2400	2300X2200	2300X3450X2200	4500	1400	40
		1.5					4600	1500	60
		1.75					4700	1500	70
		2			2500X2400	2300X3450X2500	4900	1700	100
		2.5					5100	1900	120
21	1600	1	1100X2100	1900X1800X2400	2500X2500	2500X3750X2200	4500	1400	40
		1.5					4600	1500	60
		1.75					4700	1500	70
		2			2600X2650	2500X3750X2500	4900	1700	100
		2.5					5100	1900	120

Home elevator

Loading kg	Speed m/s	Drawing	Max rising m	Max floors	Car dimension CWxCDxCH (mm X mm X mm)	Door size OP X OPH (mm X mm)	Door opening	Shaft diemnsion HW X HD (mm X mm)	Standard pit PD(mm)	Overhead OH(mm)	Power
320	0.4	DCH320-01	12	5	800*1200*2100	800*2000	2 panel side opening	1500*1550	600	3000	220V 1P
400	0.4	DCH400-01	12	5	900*1200*2100	800*2000	2 panel side opening	1600*1550	600	3000	220V 1P

Bed elevator

Loading capacity(kg)		1600kg(21 passengers)
Rated speed(m/s)		1.0	1.5	1.75
Door opening size(mm)		1100*2100
Car size(mm)	width	1400
	depth	2400
	height	2400
Hoistway size(mm)	width	2300
	depth	2900
Machine room size(mm)	width	2300
	depth	4000
	height	2200
Top floor height(mm)		4500	4600	4700
Pit depth(mm)		1400	1500	1500
Max. travelling height (mm)		40	60	70



Machine roomless freight elevator
Loading capacity(kg)		1000		1600	2000		3000
rated speed(m/s)		0.63	1.0	0.5	0.5		0.5
Door opening size 4 panel center opening		1200*2100		1500*2100	1500*2100		2000*2100
Exit and entrance		NO Cutthrough		NO Cutthrough	Cutthrough	NO Cutthrough	Cutthrough	NO Cutthrough
Traction ratio		2:1		4:1	4:1		4:1
Car size(mm)	Width	1600		1500	1500		2000
	Depth	1500		2300	2700		2800
	Height	2200		2200	2200		2200
Hositway size(mm)	width	2500		2800	2800	2800	3470	3470
	Depth	1900		2800	3200	3180	3300	3280
Top floor height(mm)		4200		4500	4500		4500
Pit depth(mm)		1700		1700	1700		1700
Max.travelling height(m)		25	40	20	20		20

If any interest,please contact Sarah
