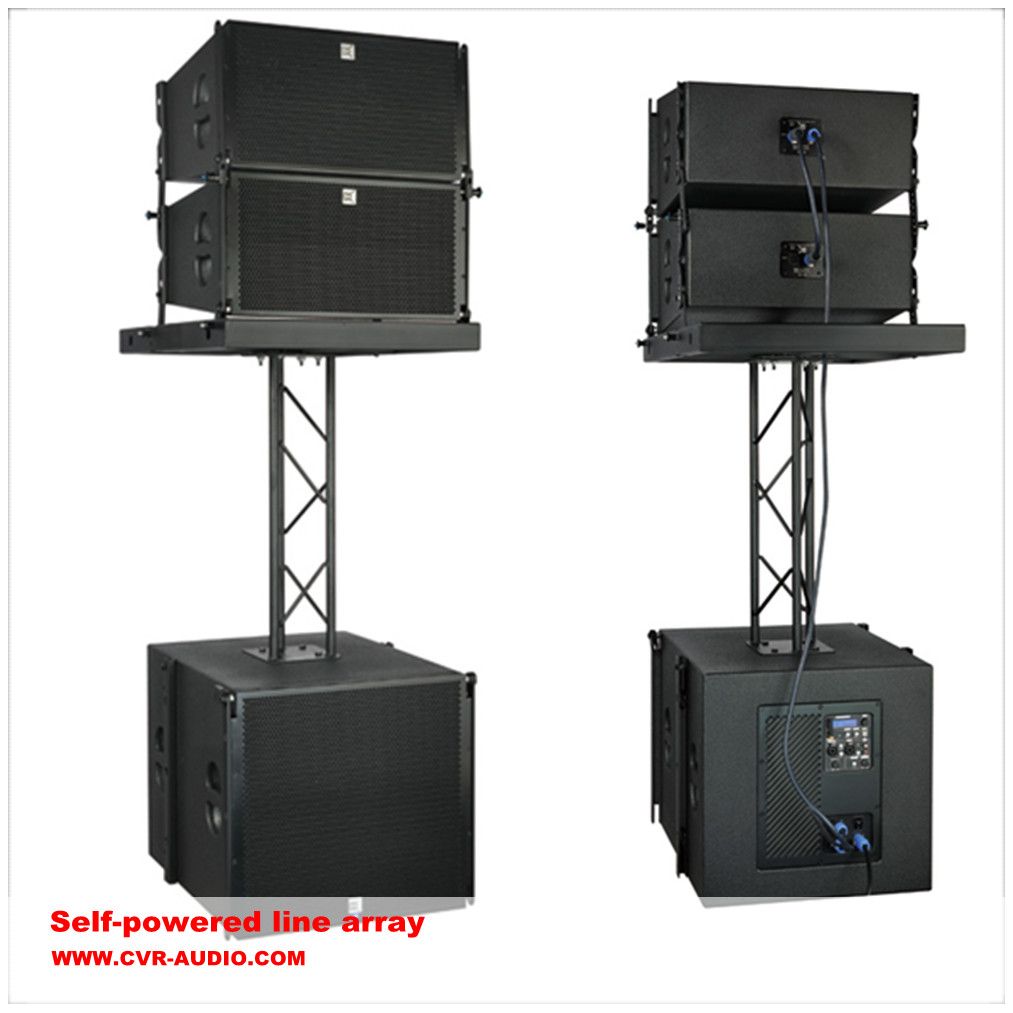

| Prod Model: |
CVR. W-110P |
| Type: |
Two Way Full Range Line Array Speaker System |
| Size: |
10"X1 Lf, 2.5"X1hf |
| Power: |
350watt RMS Each Cabinet |
| Cabinet: |
Birch Plywood Cabinet |
| Painting: |
Waterproof Textured Painting |
| Brand: |
Cvr PRO Audio |
| Drivers: |
Neodynium Components |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
RoHS |
Product Description
WAHT WE CAN OFFER YOU:
If you are searching a reliable pro sound equipment supplier, CVR PRO-AUDIO is your best choice.
GUANGZHOU CVR PRO-AUDIO Co., Ltd was founded in 2005, We are one of the best manufacturer of PA speaker,indoor and outdoor line array speaker,subwoofer,floor monitor,karaoke speakers and power amplifier.We perform well in OEM & ODM projects, over 10 years' experience has been ensured our high quality and good price. Annual sales are approximately 10,000,000 USD, serving customers in more than 50 countries.
1.Country of origin
2.Quality appprovals(CE,ROHS)
3.Free guarranee/warranty
4.Small order accepted
5.Prompt delivery
| Model | W-110 & W-118/W-110P & W-118P(Active) |
| Type | Line array system |
| | line array sub-bass system(W-118/W-118P) |
| Frequency Response | 65Hz-20KHz±3dB |
| | 35Hz-500Hz±3dB(W-118/W-118P) |
| Power handling | LF 350W(RMS)700W(PEAK) |
| | HF 90W(RMS)180W(PEAK) |
| | 600W(RMS)1200W(PEAK) |
| Power amp | 600W/8ohm (W-110P) / 900W/8ohm (W-118P) |
| Amplifier type | Switching power amp, class D circuit |
| Other functions | built-in crossover(W-110P) |
| Sensitivity | LF 96dB(1W@1M) |
| | HF 108dB(1W@1M) |
| | 109dB(1W@1M)(W-118/W-118P) |
| [email protected] | LF 122dB(PEAK/1M) |
| | HF 125dB(PEAK/1M) |
| | 135dB(PEAK/1M)(W-118/W-118P) |
| LF section | 1×10"(260mm) neodymium woofer |
| | 75mm(3in)coil |
| | 1×18"(460mm)woofer |
| | 100mm(4in)coil (W-118/W-118P) |
| Nominal impedance | 16 ohm |
| | 8 ohm (W-118/W-118P) |
| HF section | 1x2.5"compression driver with44mm |
| | titanium diaphragm |
| Nominal impedance | 16 ohm |
| Output section | 2-channel |
| Dispersion pattern | 110º H×9º V |
| Surface finish | Black paint |
| Array design | Arrays of less than 3×W-110 will |
| | provide poor dispersion control and are |
| | neither recommended nor supported |
| Speaker cables | LF1(+)1(-) HF 2(+)2(-) |
| | 1(+)1(-) (W-118/W-118P) |
| Rigging system | Please refer to the W-110 user's |
| | manual before any operation |
| Input connectors | 2×NL4MP speakon |
| Recommend crossover | LF 70Hz-2KHz |
| | HF 2KHz-20KHz |
| | 35Hz-120Hz(W-118/W-118P) |
| Dimensions | 546×291×410mm(W×H×D) |
| | 546×510×650mm(W×H×D)(W-118/ W-118P) |
| Package dimensions | 610×360×480mm/0.11cbm |
| | 610×575×715mm/0.25cbm (W-118/ W-118P) |
| Enclosure | Birch Plywood |
| Net weight | 21kg(W-110)/40kg(W-118)/46kg(W-118P) |
| Gross weight | 23kg(W-110)/43kg(W-118)/49kg(W-118P) |
WHAT THE SYSTEM IS DESIGNED FOR:
A wide range of applications, including:
Houses of worship
Auditoriums
Performing arts venues
Arenas
Mobile and fixed DJ systems
Sound system rental and tour
Guangzhou CVR PRO-Audio Factory is a manufacturer specialized in producing professional audio equipment with an own brand "CVR "since 2005. Our 5, 000 square meters plant has R&D, sales and demonstration departments. Fully equipped demonstration facilities are available with knowledgeable staffs. CVR PRO AUDIO can easily provide you a wide range of professional sound gear like: PA speaker, indoor and outdoor line array speaker, subwoofer, floor monitor, Power amplifier and speaker management system. From the smallest conference room to the largest stadium.
CVR is the brand we set for global market, carrying great responsibility to satisfy our customers in every possible aspect as promise. The heart and soul of CVR has to be our attempt to strengthen our quality against the best in the world.
Our goal is to provide the best equipment with the best services. We have not deviated from this position since we began and will do it consistently.
