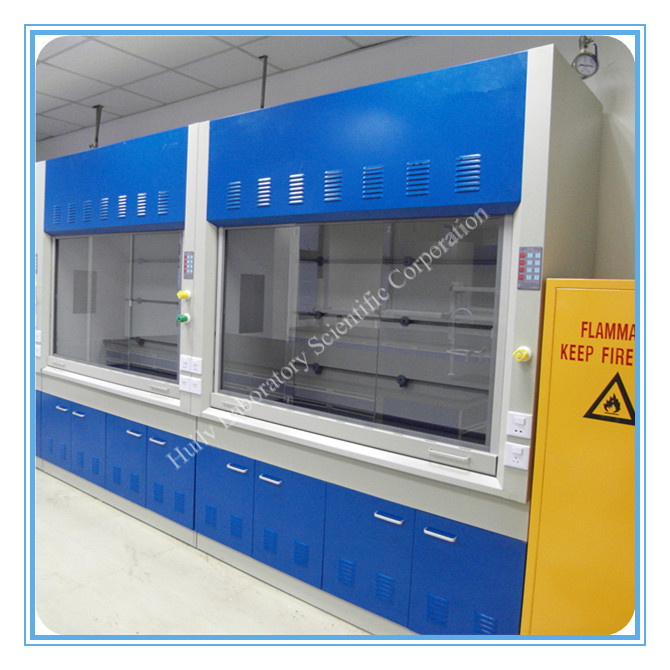

Chemical Lab Ventilation Fume Hood Company in China

Prod Model:	HL-TFG006
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia
Brand:	Chuanggao
Place Of Orginal:	Changzhou, China ( Mainland)
Package:	Inner Package Carton Box
Produce Leadtime:	3-5 Working Days
Contact:	Jerry
Mobile:	0086-13641506361
Material:	Seel
Color:	White

Product Description

We are the leading manufactuer in lab furniture and lab equipment, OEM & ODM service are offered. And we have our own overseas techinican and installation team.

Steel frame structure with suspended system.
Optional 1: Steel & wood structure
Optional 2: All steel structure

Frame: C frame steel structure, 60*40*2mm rectangular square steel tube spraing epoxy resin power(75μ M), all the steel parts by pickling, phosphating treatment, surface by the epoxy resin power coating, high temperature curing treatment, the acid and alkali corrosion, abrasion, scratch and impact cutting.

Worktop:
Optional 1: 12.7mm / 15mm / 19mm/ 25mm phenolic resin worktop.
Optional 2: 19mm/ 25mm epoxy resin worltop.
Optional 3: 20mm creamic.
Optional 4: 30mm granite marble.

Chemicals resistant, the acid and alkali resistantm high temperature curing treatment, abrasion,
Scratch and impact cutting resistant, monolithic smooth, non-glare finish with 3mm bevel edging.

Optional1: Wall cabinets and doors and drawers panel: Used 1.2mm thick of cold-rolled steel sheet production, all the steel parts by pocking, phosphating treatment surface by the epoxy resin power coating, high temperature curing treatment, the acid and alkali corrosion, abrasion, scratch and impact cutting.
Optional 2: Wall cabinets and doors and drawers panel: Made of 18mm high pressure semi-solid wood (MDF) coverd with 0.4mm high pressure laminate(HPL) on both sides with 3mm PVC edging strips.

Optional 1: The size of the cabient and drawers.
Optional 2: Movable cabinets.
Optional 3: Lockable cabients.
Optional 4: With galss door.
Optional 5: Adjustable shelves.

Sideway: Semi-self closing three section slide rail, no noise.

Hinge: 175° Degree opem type high quality hinge.

Handle:
Optional 1: Longer embedded aluminum handle with epoxy coating.
Optional 2: Stainless steel handle.
Optional 3: Smalss embedded alumunum handle.

Sink
Optional 1: 1.2mm stainless steel sink,
Optional 2: High grade PP sink.
Optional 3: High grade epoxy resin sink.

Different size, resistant to most chemicals, such as aqua regia, matt finish on lip, resistant to scratch & consistent with most workyops finish. Can effecitively prevent the most kinds of chemical acids and alkali corrosion resistance. Denditu of injiection molding basin.

Faucet: Solid brass & stainless steel.
Optional 1: Single way gooseneck faucet.
Optional 2: Double way faucet.
Optional 3: Three way gooseneck faucet.
Optional 4: Cold & hot faucet, gooseneck, single mixer.

Solid brass, high gloss epoxy power, resistant to most chemicals, UV fading & heat, 500000 life cycles, water static perssure Max 20 Bar; Laboratory dedicated copper main material, the epoxy resin coating, PP tap.

Gas valve:
Optional 1: Desk mounted single way.
Optional 2: Desk mounted, double way fitting at 90° .
Optional 3: Desk mounted, double way fitting at 180° .
Optional 4: Desk mounted, triple.
Optional 5: Desk mounted, quadruple. Reagent rack:
Optional 1: Alumunum frame, glass shelves.
Optional 2: Steel frame, glass shelves.
Optional 3: Steel frame with top shelves.

Worktop	304# stainless steel
Cabinet body	304# stainless steel
Dimension	1200*800*2350mm
	1500*800*2350mm  (or customized)
	1800*800*2350mm
Visual windows	Transparent tempered glass, explosion-proof
Control panel	Touch, intelligent control panel
Handle	304# stainless steel handle
Hinge	304# stainless steel  hinge
Faucet	Brass body with ceramic valve core
Gas valve	Solid brass body, high gloss epoxy powder coating.
Sink	304# stainless steel sink
Socket	Special lab Multi socket. double electric, international standard
