| Prod Model: |
BS-868A-2 |
| Castors: |
Taiwan Castors |
| Load Capacity: |
More Than 250kgs |
| Spare Part Warranty: |
One Year |
| Lifetime: |
More Than 10 Years |
| Certificate: |
Ce/ISO/FDA |
| OEM Service: |
Availabe |
| Motor: |
Taiwan Timotion or Denmark Linak |
| Type Of Hospital Bed: |
Electric Bed |
| Using Ambient: |
Hospital |
| Certification: |
TUV |
| Numbers Of Function: |
Seven-Funtion |
| Material: |
Carbon Steel |
| Folded: |
No |
Product Description

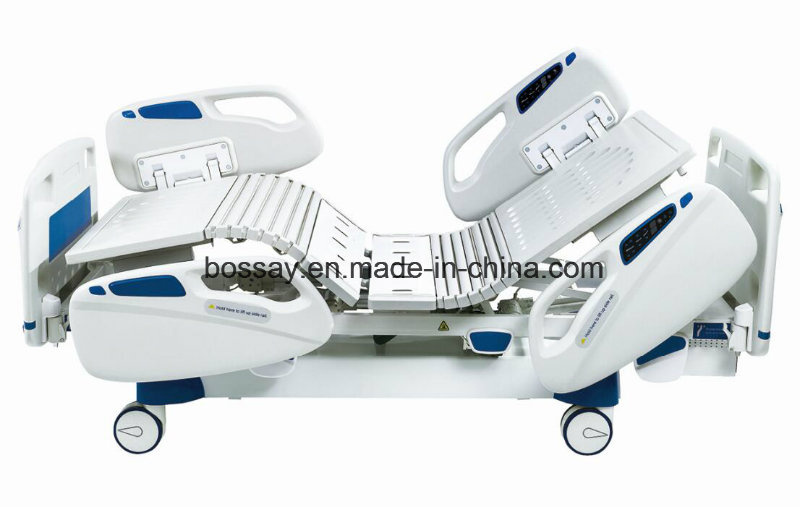

Cheap prices Seven-funtion ICU bed
Product Description
Overall size:2330*1050*530/710mm
| ABS head and foot board,antisepsis,anti-oxidation,generous in appearance |
| The bed platform is made of cold roll steel sheet,shaped at one time; |
| The frame is welded by steel tube,stable and reliable;Surface treatment:Electrostatic powder coating |
| The system uses Denmark LINAK medical motor system |
| PP tuck away siderails,generous in appearance,stable and easily operated. |
| Soft link |
| Advanced medical motor system |
| Central-controlled system,150mm dia castors |
| Urine hooks,I.V drip |
| Bed board with flexible connection |
| Side rails touch keypad |
| Foot panel touch keypad |
| Mattress ,Mobile food table,Back-up power system(UPS) |
| Danmark LINAK safety voltage motor or Taiwan Timotion safety voltage motor |
| Height adjustable from 450 to 700mm |
| Back-rest lifting angle is 0-65°(±5°) |
| Knee-rest lifting angle is 0-43°(±5°) |
| Trendelenburg are 0-10° |
| Rev.Trendelenburg are 0-10° |
| "Reset" function , bed could back to "Zero" position quickly |
| Electric lock and unlock system |
| Product Name | Cheap prices Seven-funtion ICU bed |
| Item No. | BS-868A-2 |
| Dimensions | 2330*1050*530/710mm |
| Package | 1PC/CTN |
| Carton Size | 2330*1050*530/710mm |
| CBM/per CTN | 0.98m³ |
| Weight/per CTN | N.W:145KGS G.W:150KGS |
| Lading Qty | 25 | PCS/25''GP | 70 | PCS/40''GP | 80 | PCS/40''HQ |
| Guarantee | Motor:5 Years, Other Parts:1 year |
| Certification | ISO13485:2003 |
| Lead Time | 20-25 days after receipt of deposit |
| Loading Port | ShenZhen/GuangZhou/FoShan,China |
| Payment Terms | T/T with 30% deposit,and 70% balance before delivery |
| MOQ | 1 PC |
Why Us?
The Quality We Provide - Outstanding Quality Assurance
Control from production process:
- We don't send parts out for pretreatment, all process would be supervised under inspection department
- 7 stages pretreatment meet international standard
- Baking at high temperature after power coating to ensure the paint finish
Control from material :
- All bolts and screws are of SS material
- Mild steel ERW rectangular tubes or sheets 1 .2 - 2 .0mm thickness , meet EU standard
- Plastic material is of ABS only .Durable and Sturdy.At least 10 years lifetime.Different colors for options .
Control from inspection :
- Process inspections after cold working, acid washing,powder coating and assembling
Final inspection before loading in random checking
- SGS third party inspection available if required
The Service We Provide - We Take Care Of Your Order
Punctual delivery time :
- We put your order into our tight production schedule, ensure your punctual delivery time.
- Production / inspection report before your order packed.
- Shipping notice / insurance to you as soon as your order is shipped
After sales service :
- We respect your feed back after receive the goods.
- We provide 12 - 24 months warranty after goods arrive.
- We promise all spare parts available in lifetime use.
- We large your complain within 48hours.
Professional sales :
- We value every inquiry sent to us , ensure quick competitive offer.
- We cooperate with customer to bid tenders .Provide all necessary document.
- We are a sales team , with all technical support from engineer team.
Company Information
Bossay medical appliance co.,Ltd, established in 2009, is a professional manufacturer engaged in the research, development, production, sale and service of(Hospital bed,trolley,cabinet,Crutches,and wheelchair).We are located in(Foshan) with convenient transportation access.Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.In recent years, our company has introduced a series of advanced equipment including(Cutting,bending,punching,welding,and polishing).In addition, we have obtained certificates(FDA,CE,ISO13485) Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as(Asia,Europe,Oceania,and Africa).We also welcome OEM and ODM orders.Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements
FAQ:
| Question 1:Can you provide us a sample for testing? |
| Yes we can, after sample order, it will be finished in 5-10days |
| Question 2:Your size is not meet our requirement,can you produce as our specification? |
| Yes of course, We can produce as your design include each parts of our goods. |
| Question3:What's your MOQ,and the Payment terms. |
| Our MOQ accept one piece,we do payment by T/T,30%Deposit,70%Balance before shipment,Also accept West Union,MoneyGram, L/C |
| Question4:Can you assist to deliver goods to our country? |
| We have professional worker make the shipping things |
| Question5:After our inquiry when can we get your reply? |
| Within 24hours we will make a better solution |
Contact Information:
Samantha Lin | BOSSAY MEDICAL COMPANY,China
Phone No. : 86 13106802213
Wedsite : www.bossay.en.alibaba.com / www.bossay.com.cn
Bossy Medical Appliance Co., Ltd is a professional manufacturer of hospital bed, children bed, operation bed, hospital trolley, bedside cabinet, hospital cabinet and etc. It was established in the year of 2009, locates at LeLiu Zone. Plant a beautiful environment, various ancillary facilities and convenient transportation. The company is a high-grade Hospital equipment R&D, production, sales and service for the integrated enterprise. Under the management tactic of integrity, lawful (business) operation, quality first, service foremost, we not only improved a lot on technic and quality but also after-sales service.
The products are registered in USA FDA, reach CE Standard and passed ISO13485: 2003. Our products are sold throughout the country and exported to America, Australia, Japan, Southeast-Asia, Africa and many other countries and regions. We gain market share through high quality. We make long time cooperation with customers through customer services We are walking on a sustainable development path with good faith.
