| Prod Model: |
FY011 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Cabinet, Chair, Table, Bed, Sofa |
| Function: |
Driving |
| Stroke: |
50-1000mm |
| Mini Install Dimension: |
S+175mm |
| Input Voltage: |
12V or 24VDC |
| Type Of Duty: |
S2-10min |
| Load Capacity: |
Max 6000n |
| Noise: |
Less Than 50dB |
| Color: |
Black or Gray |
| Guarantee: |
2 Years |
Product Description

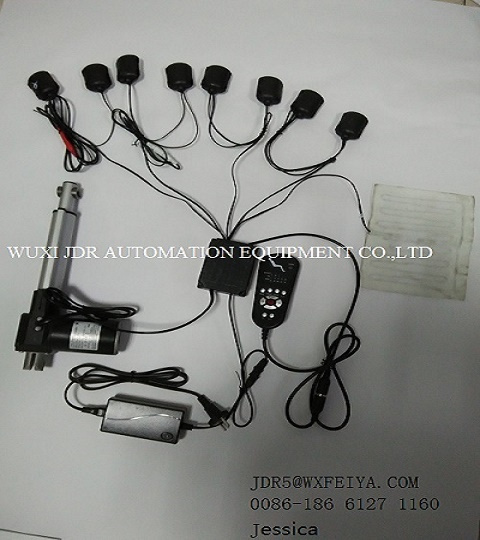

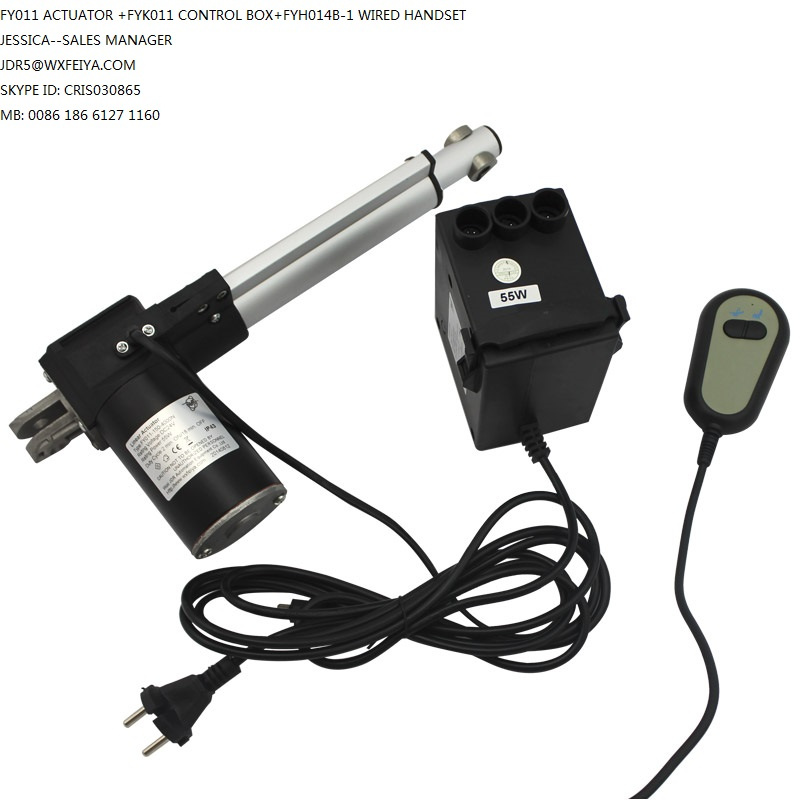

This Linear Actuator Kits including 3 parts:
Linear actuator + Control Box + Remte Unit (handset)
Model No.: FY011 + FYK011 + FYH014
Linear Actuator
1) New, beautiful design
2) Small dimension, low noise
3) Inner limit switch
4) CE Linear Actuator
5) wire or wireless

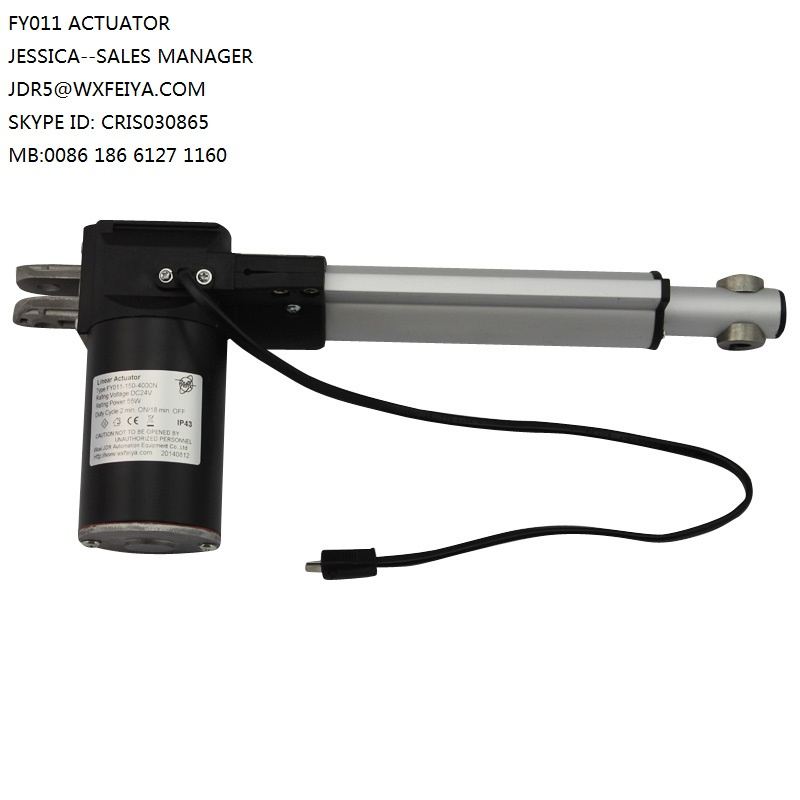

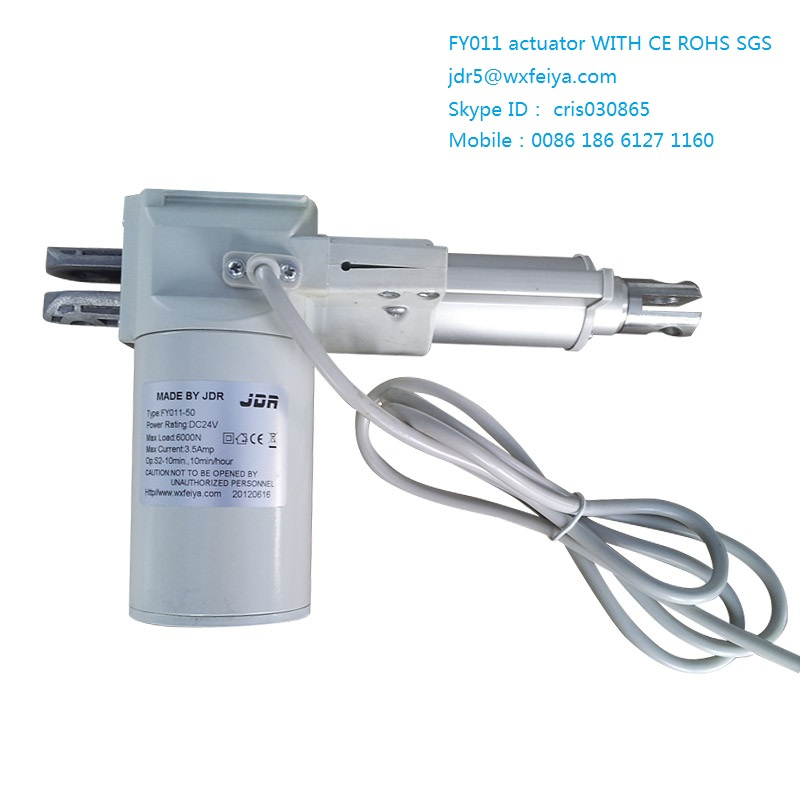

FY011 Linear Actuator for Electric bed, Massage chair, Dental Chair
FY011 is a multipurpose product. By advantage of its small size and powerful comprehnsive function,
It is popular in furniture, medical equipmet, office and so on.
Products Features:
1) 24VDC permanent magnet motor
2) Thrust up to 6000N in push, and up to 4000 N in pull
3) Elegant and compact design with small instanllation dimensions
4) Built-in limit switches ( not adjustable after leaving factory )
5) Aluminium outer tube / inner tube Ø 32mm / Ø 24mm
6) Aluminium or zinc alloy back fixture
7) Stroke: 50~500 option
8) Min Installation Dimension: S +175mm
9) Standard protection class
10) Noise level < 50 dB
11) Warranty: Two years
12) Duty cycle: 10%, or 2 munutes continous working followed by 18 minutes not in use
Option:
Stroke: 50~500mm, can design according to customer's requirements
Free load speed: 4mm/s ~ 30mm/s
Rated load speed: 3mm/s ~ 25mm/s
| Name: | Linear Actuator |
| Model: | FY011 |
| Usage: | Electric Bed, Electric Sofa, Massage Chair, Dental Chair, other Industrial use |
| Input Voltage: | 12v or 24v DC |
| Load Capacity: | 750N, 1500N, 4000N, 6000N |
| Free Load Speed: | 30mm/s, 18mm/s, 8mm/s, 4mm/s |
| Standard Stroke: | 50 mm --- 1000mm (Optional) |
| Installation Dimension: | S + 175mm |
| Type of Duty: | S2 -- 10 min (2 minutes work, 18 minutes rest) |
| Limit Switch: | Builtin / Inner (can not be adjust after left factory) |
| Work Temp.: | -26 to 65 centigrade |
| Protection Grade: | IP43, IP54, IP65 |
| Certificate: | CE / EMC + LVD, RoHS |

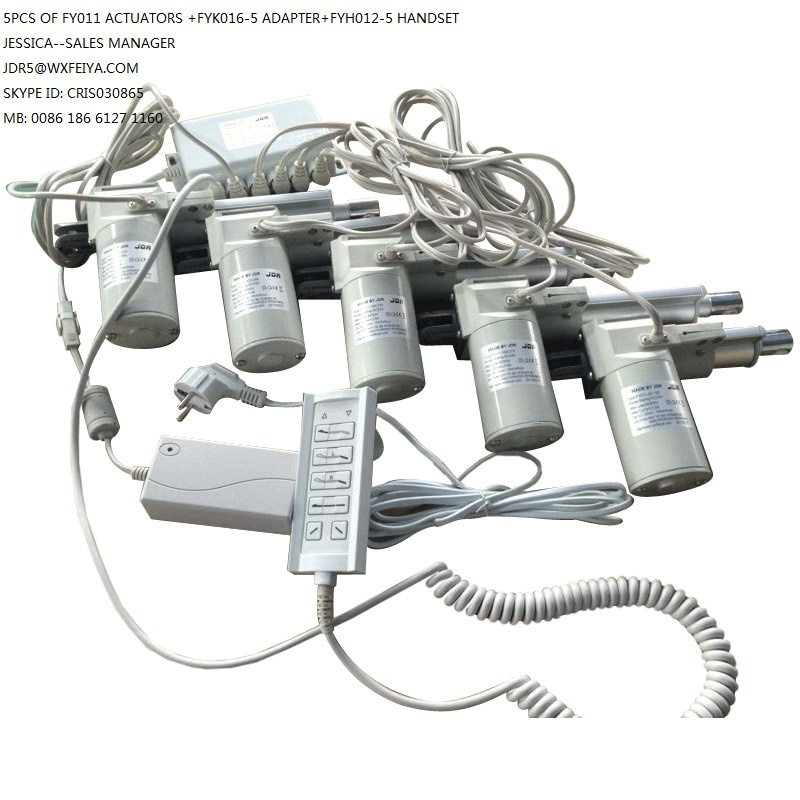

| Control Box Used: | Control 1 Linear Actuator: FYK011-1, FYK012-1, FYK015-1, FYK016-1, FYK017A |
| | Control 2 Linear Actuators: FYK011-2, FYK012-2, FYK015-2, FYK016-2 |
| | Control 3 Linear Actuators: FYK011-3, FYK012-3, FYK016-3 |
| | Control 4 Linear Actuators: FYK012-4, FYK016-4 |
| | Control 5 Linear Actuators: FYK012-5, FYK016-5 |
| | Control 6 Linear Actuators: FYK016-6 |
| Handset Used: | All FYH Series Handset, Pls contact us for detail pictures. |
