Cheap CNC Machine Wood Router Machine CNC Plotter CNC Table
| Price: |
US $ 19200-19500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
6060S |
| Work Stroke Of X/Y/Z: |
600×600×230mm |
| Spindle: |
5.5kw Frequency Conversion Water-Cooled |
| System: |
6MB/6mA / Nk300Taiwan Syntec/ Shanghai (Optional) |
Product Description

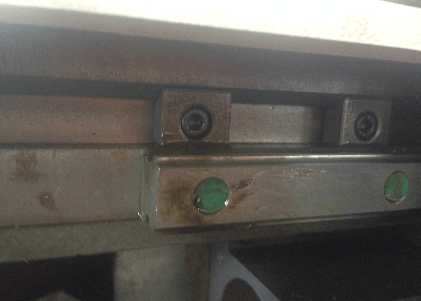

Characteristics and applications(1), airframe base, pillar casting beams are an organic whole, through the year-long outdoor natural aging, and the two tempering treatment, good rigidity, good stability.(2), linear guide, adopt unique wedge orientation and compaction of installation, ensure the accuracy of machine tool.(3), with imported servo system and high precision transmission components, high processing precision, stable running.(4) one-piece, industrial control system design, convenient operation, powerful functions.(5), the three axes linkage, carved for three axis CNC engraving machine, suitable for copper, aluminum, steel and other metal, ABS plastic, PVC, polymer composite materials such as product or mould, fixture processing

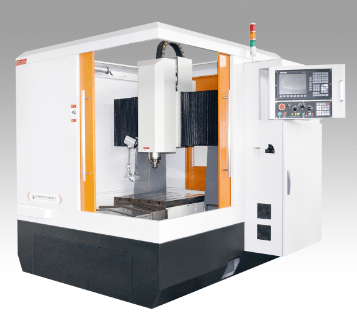

TSL6060 - Cheap cnc machine wood router machine cnc plotter cnc table
One,Main parameter| Functional index | Standard value | instruction |
| Driving system | AC SERVO | |
| X/Y/Z positioning accuracy | ±0.012/300mm | |
| X/Y/Z repeat positioning accuracy | ±0.008mm | |
| Idle fast movement speed | 12m/min | |
| Maximum cutting speed | 6m/min | |
| Maximum tool diameter | ¢20 mm | |
| Spindle power / rpm | 5.5KW / 7000-18000rpm | AC220V/50HZ |
| Operating stroke | 600×600×230mm | X / Y / Z |
| Size of working table | 650x630mm | |
| Outline dimensions | 2050 x 1950 x 2000mm | |
| Weight | 4T | |
Two,Main configuration list
| Name | Model and specification | Supplier or brand |
| Linear Guide way | MODLE | |
| X | HGH32CA | HIWIN |
| Y | HGH32CA |
| Z | HGH25CA |
| Ball screw | MODLE | |
| X | 32 X 05 | QIJIAN |
| Y | 32 X 05 |
| Z | 32 X 05 |
| Spindle | 5.5kw frequency conversion water-cooled | CHANGSHENG Changzhou |
| Converter | 5.5kw steplees speed regulation | DEMA |
| System | 6MB/6MA / NK300 | Taiwan Syntec/ Shanghai (optional) |
| Servo motor | 1kW / 850W | Japan Mitsubishi/ Panasonic/Yaskawa(optional) |
Description:

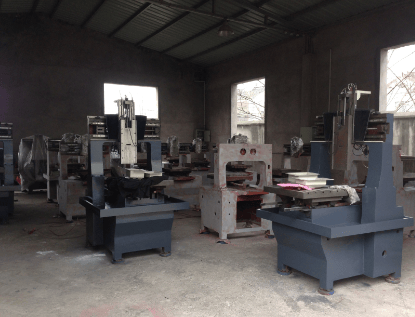

The company headquarters and production base located in "China smart" city - changzhou city, jiangsu province economic development zone, is a high-tech private joint-stock enterprise, as the national science and technology innovation fund projects to undertake unit.
Our company focus on all kinds of high precision multi-function carved machine, engraving and milling machine and the development and application of metal drilling and tapping machine. The company has a professionala research and development team, mature manufacturing process control, and has a strict quality control system and perfect pre-sales, after-sales service system, has passed ISO9001 and 3 c certification, a number of products obtained national patent for invention or utility model patents.
My company's products sell well in domestic jade crafts, seal, hardware parts, automobile and motorcycle accessories, electronic instrumentation, measuring tool, denture, metal mold, fixture and other industries and fields, depth cooperation with the domestic many large enterprises, listed companies, colleges and vocational colleges, exported to southeast Asia, the Middle East, Africa and other regions and countries.
Main products:
1, TSL100120, 80100, 8080, 6060, such as heavy-weigh knife library series engraving and milling machine;
2, TSL6080, 6060, 5080, 5060, 4242, 4040, 3030, such as light-weigh libraries/four axis series of carved machine;
3, measuring tool (Vernier caliper) or hardware industry small screw drilling and tapping machine series;
4, TSL3020 vertical/horizontal series denture processing machine (tooth die engraving machine);
5, formulated in accordance with user requirements process solution, custom all kinds of CNC engraving machine or product processing required for automatic tooling fixture, etc.;
6, D scanner and 3D printer sales and application.
Product main features:

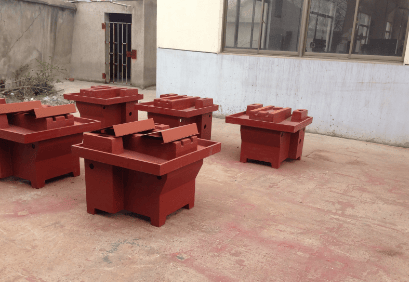

Structure of HT250/300 casting, two sections of the design, lathe bed and frame for the box structure, longmen for U the whole structure, the secondary tempering and outdoor natural aging for a long time, machine tool rigidity is strong, not deformation; Carrying Taiwan HIWIN high precision linear guide and ball screw, the configuration of international or domestic famous AC servo drive system and control system, the machine of high precision, good stability.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
