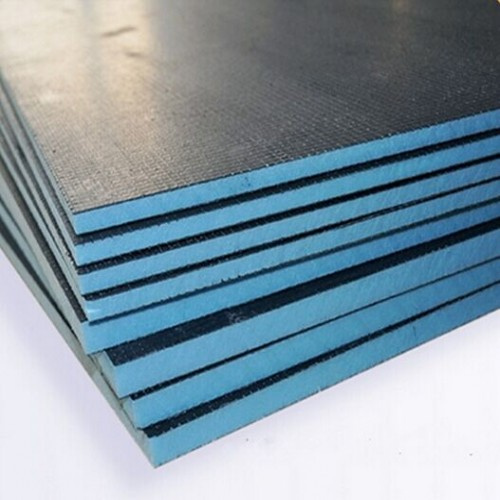

Cement and Glass Fiber Mesh Reinforced XPS Board

Prod Model:	CMAX-AM92
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product:	XPS Tile Backer Board
Thickness:	6-50mm
Width:	600mm
Length:	1200mm/1250mm/2500mm
Diameter:	4-50mm
Usage:	Interior Tiles
Refractoriness:	50-80
Surface Treatment:	Fiberglass with Cement
Material:	Fiberglass+XPS+Cement
Color:	Grey
Apparent Density:	2-5kg/M2

Product Description

Cement and Glass Fiber Mesh Reinforced XPS board  XPS Foam Board





Product name:
Tile Backer board (as known as  construction board, tile backer board, insulation backer board, waterproof backer board, wet room backer board, XPS board.)

Product structure:
Tile Backer boards are made of high-performance waterproof extruded polystyrene (XPS Board), it has a 0.75mm coating on either side comprising a glassfiber mesh embedded in a polymer cement mortar.

Outstanding characteristics:
Both insulation and waterproof.


Product appearance:
The boards have straight edges. The color of the surface is grey and the core material is light blue.


Working temperature range:
50 to +80 °C


Standard dimensions and weight:

Thickness(mm)	Weight(kg/m²)	Length by width(mm*mm)
6	2,7	1200 x 600
10	2,9	1250 x 600
12	3,0	2500 x 600
20	3.1	2500 x 600
30	3,3	2500 x 600
50	4,2	2500 x 600

The board has the following tolerances:thickness:± 2mm  width:± 2mm   length:± 3mm.

Reaction to Fire:
The boards are classified as class E according to EN 13501-1. When the boards are covered with tiles, their fire performance should comply with local construction laws and regulations.

Effect on indoor environment:
CMAX board has been assessed as not emitting any particles, gases or radiation that may have a negative effect on the indoor climate or to have any significant effect on health.


Main applications:
Used as a watertight layer on walls and floors in houses, hotels and other wet areas such as bathroom, shower room.

Other applications:
Other places to be insulated and waterproofed.

Applications:
1. as a watertight layer on walls and floors in wet rooms and bathrooms.
2. as an insulation layer in under floor heating to avoid heat loss.
3. as partition walls in wood or steel frames.
4. substitute for gypsum board and fiber cement board; insulation and waterproofing; lighter so that more easily to install.
5. As enclosures for bathtubs, water pipes, etc.
6,Can very easily and fast formed to be small shelves, washbasins, shower benches and soap boxes.
7. Combining with CMAX curved/shapeable boards, kinds of decorative models can be made with your infinite creativity.

FAQ:
1.Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.
2.Is the sample available?

Yes, samples are available for you to test the quality.If we have samples in warehouse,freight can be paid by your side.

3.Are the products tested before shipping?
Yes, all of our rubber belt ,conveyor belt  was qualified before shipping. We test every batch every day.
4.What's benefit will you bring?
Your client satisfied on the quality.
Your client continued orders.
Your can get good reputation from your market and obtain more orders.
5. What's the payment term?

A : The contract amount is less than $10,000, 100% in advance;
B; The contract amount is more than $10,000, T/T 30% as the deposit, and T/T 70% balance paid against copy of B/l. It could be discussed.

6. Why choose us ?
We are leading manufacturer in china, which has excellent product quality, first class labor and QC. We carefully select the highest quality raw materials. All incoming materials are inspected prior to being released to production.
7. How about the guarantee period for the products?
Two years since the B/L date.
Other questions? Please feel free to find my contact info below, I am very pleased to help you with any questions!
