| Prod Model: |
HK |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Items: |

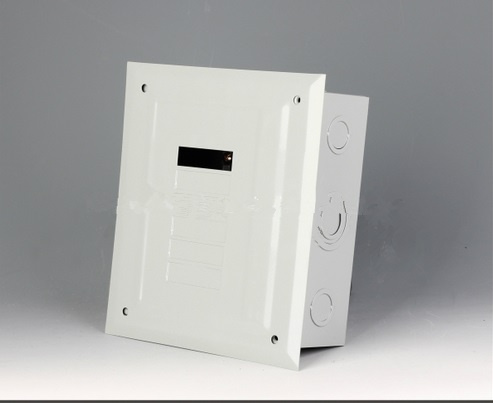

Distribution Box |
| Service: |
OEM and ODM |
| Brand Name: |
Bsd |
| Protection Degree: |
IP65 |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
| Size: |
Full Sizes and as Per Customers |
| Shell Material: |
Iron and Plastic |
| Brand: |
Bsd |
Product Description
Function
This product applies to terminal of AC 50/60 Hz, rated operating voltage up to 400 V and rated current up to 63A, equipped with various modular electric for function of electric energy distribution, control, (short circuit, overload, earth leakage, over-voltage) protection, signal, measurement of terminal electric appliance.
Equipped with transparent/ non-transparent door
Single row: door open upward 90 degrees.
Rated current: 4 ways 50A, 6-36 ways 63A
Material: insulating, self-extinguishing fire material
Protection level: indirect contact proof 2 protection
Main Technical data
1. Equipped with transpartent/non-transparent door
2. Single row: door open upward 90 degrees
3. Rated current: 4 ways 50A, 6~36 ways 63A;
4. Material: Insulating, self-extinguishing fire material
5. Protection level: indirect contact proof 2 protection
Model | Specification | L | W | H |
| HT | 5 ways | 120 | 160 | 92 |
| 8 ways | 200 | 150 | 92 |
| 12 ways | 255 | 200 | 108 |
| 15 ways | 310 | 200 | 108 |
| 18 ways | 370 | 198 | 108 |
| 24 ways | 355 | 275 | 108 |
| HK | 5 ways | 140 | 140 | 105 |
| 8 ways | 185 | 185 | 105 |
| 12 ways | 270 | 195 | 105 |
| 18 ways | 370 | 195 | 105 |
| HA | 4ways | 210 | 140 | 100 |
| 8ways | 215 | 210 | 100 |
| 12ways | 300 | 260 | 140 |
| 18ways | 410 | 285 | 140 |
| 24ways | 300 | 315 | 140 |
| 54ways | 410 | 655 | 141 |
Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,
We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),
AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )
Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,
We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,
We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.
We promise to offer you superior products, favorable price, and timely delivery.
If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
