| Prod Model: |
PKA-800 |
| Material: |
Leather |
| Waterproof: |
Not Waterproof |
| Type: |
Case |
Product Description

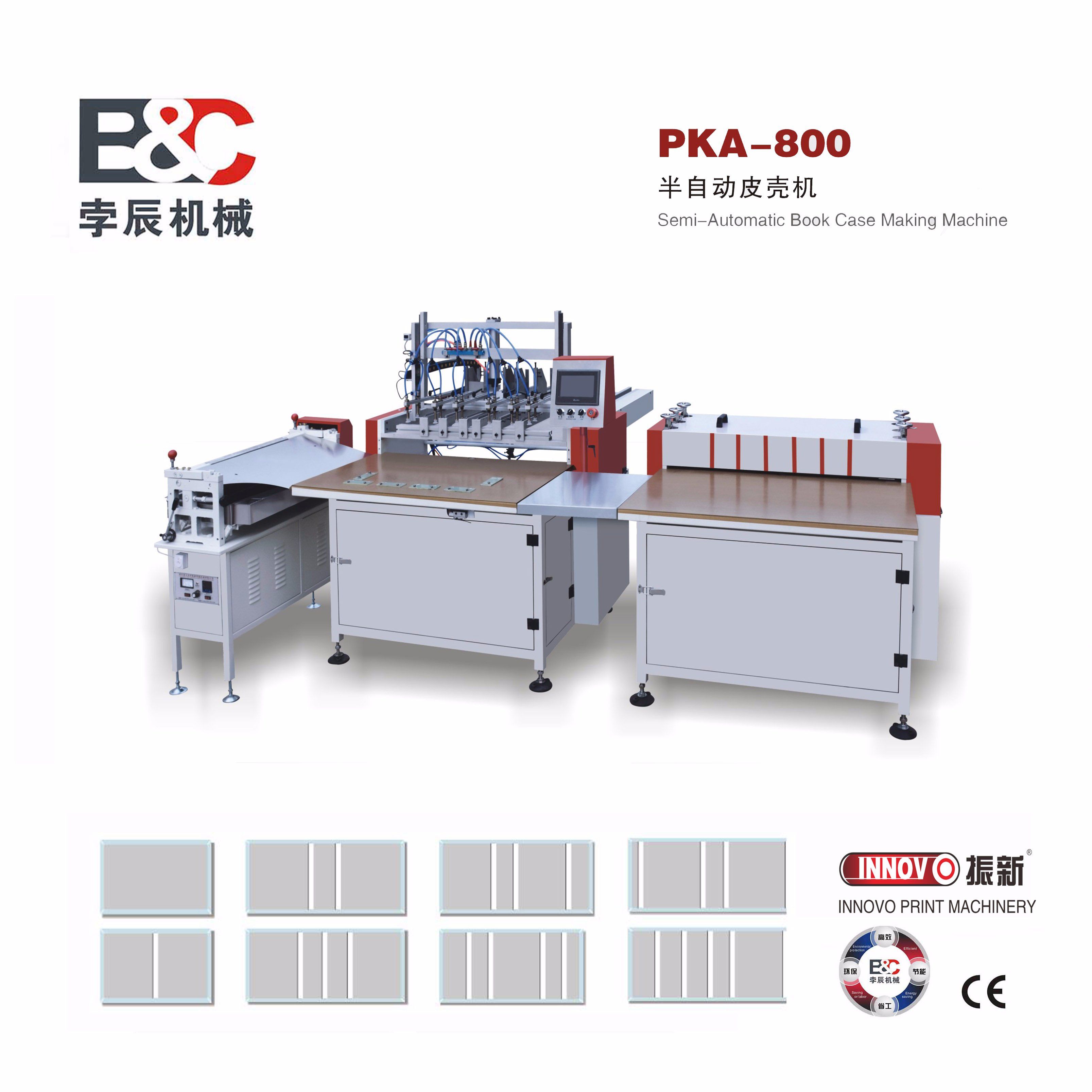

PKA-800 Book Case Making machine
- Type: Other
- Condition: New
- Application: Machinery & Hardware
- Packaging Type: plywood Case
- Packaging Material: Paper
- Automatic Grade: Semi-Automatic
- Driven Type: Electric
- Voltage: 220V
- Power:0.75Kw
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: INNOVO
- Model Number: PKA-800
- Weight: 800 kg
- Dimension(L*W*H): 2600*1220*1550mm
- Plywood case dimension:2750*1450*1700mm
- color: white and red
| Packaging Details: | plywood case |
| Delivery Detail: | about 20 days after received the payment |
SpecificationsThe case making machine is mostly applicable to various notebook, photo book (photo album), folder, certificate, hardcover book.This machine is the most applicable to various notebook, photo book (photo album), folder, certificate, hardcover book ,shell for folding(covering) and pressing, twice finished on both sides, one operator, forthright, Covers an area of small space , is post-press especially digital post-press good partner. FeatureUpper side glue when paper cross the rollerGlue pump can cycle glue when drop down on the inox rollerLarge capacity glue tankAutomatically clean the roller if not workAdopting PLC operating system Can use hot glue, white latex Replace products, adjustable machine speed Feeder positionWorking detailsThis machine need 2 worker at same time.Firstly: one person stand in the front of plate glue the cover paper with Glue Machine on upper side;Secondly: sucker move the cardboard to the glued cover paper automatically;Thirdly:the same person convey the fixed unit to fold 2 book side by put into the plate,move to the back of suckerFourthly:the person stand in back of sucker move the 2 sides folded cover to ZXSCM 500 I Book Hard cover Double-side edge folding machine,Then folding the other 2 sides,push out,finished. Technical parameter| Model | PKA-800 |
| Power Supply | 220V/50HZ |
| Mainframe power | 0.75kw |
| Work Speed | 10-15PCS/minute |
| Case size(max) | 800*450mm |
| Case size(min) | 150*150mm |
| Machine Dimensions(L×W×H) | 3300*1220*1550mm |
| Paper thickness | 80-175g |

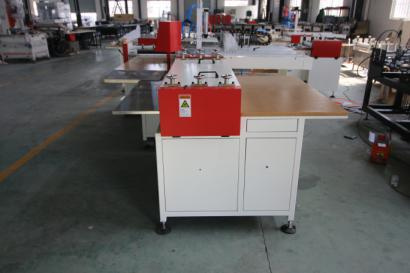

MorePhotoLeft side of PKA-8-00 Book Hard cover Double-side edge folding machine
