| Prod Model: |
BSC-1300IIA2/B2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Biological Safety Cabinet |
Product Description
PRODUCT INTRODUCTION:The bio safety cabinet is a negative pressure safety device which widely used in microbiology, biomedicine, gene recombination, animal experimental and biological products for scientific research, teaching, clinical examination and production. It adopts advanced air purification technology and negative pressure box design, and it realizes the protection of the environment, users and samples, It is the most basic safety equipment in laboratory biosafety

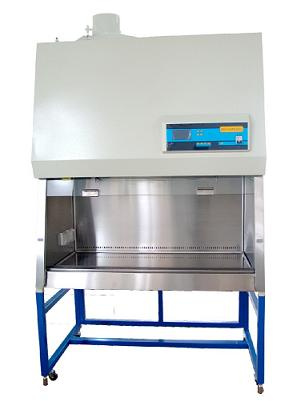

CLASS II A2 TYPE BIO SAFETY CABINET
PRODUCT CHARACTERISTICS:
- Split style structure, the demountable rack has moveable truckles and balance adjusting screw rods which make move agilely and location reliably.
- LCD screen displays measured parameters;
- The latest constant wind speed technology with the functions of automatic tracking and adjusting output
Control;
- USA wind speed sensor and differential pressure sensor, sensitive and precise;
- Preinstall alarm technology of filter invalidation and dilapidation, when filter is close to invalidation or has
Been invalidated and wind resistance enhances and filter is dilapidated, it will alarm with sound and light
Automatically;
- Interlock of UV light and lamp, sound and light alarm of safe height of front window and device of auto-stop when front window is closed;
- HEPA o ffers a filt ration efficiency o f 9 9.99% for 0.3μ M p ar ticulate;
- 5° Tilt front window meets the human engineering principle which weakens the dazzle;
- Toughened glass front window which is anti-explosion, shatterproof and uvioresistant;
- Working chamber is made of SUS304 with arc angle design which is convenient to clean the residues;
- Moveable SUS304 operation table-board which is firm, durable and easy to clean;
- Euipped with antispray socket, air and water source interfaces;
- EBM centrifugal fan, life is longer, the wind speed is stronger and more steady;
- Be equipped with the reservoir below the table-board, the lower is a blowdown valve which is easy to clean and letout;
- Options: Exhaust hood and exhaust duct.
CLASS II B2 TYPE BIO SAFETY CABINET
PRODUCT CHARACTERISTICS:
- Split style structure, the demountable rack has moveable truckles and balance adjusting screw rods which make move agilely and location reliably.
- LCD screen displays measured parameters;
- The latest constant wind speed technology with the functions of automatic tracking and adjusting output
Control;
- USA wind speed sensor and differential pressure sensor, sensitive and precise;
- Preinstall alarm technology of filter invalidation and dilapidation, when filter is close to invalidation or has
Been invalidated and wind resistance enhances and filter is dilapidated, it will alarm with sound and light
Automatically;
- Interlock of UV light and lamp, sound and light alarm of safe height of front window and device of auto-stop when front window is closed;
- HEPA o ffers a filt ration efficiency o f 9 9.99% for 0.3μ M p ar ticulate;
- 5° Tilt front window meets the human engineering principle which weakens the dazzle;
- Toughened glass front window which is anti-explosion, shatterproof and uvioresistant;
- Working chamber is made of SUS304 with arc angle design which is convenient to clean the residues;
- Moveable SUS304 operation table-board which is firm, durable and easy to clean;
- Euipped with antispray socket, air and water source interfaces;
- EBM centrifugal fan, life is longer, the wind speed is stronger and more steady;
- Be equipped with the reservoir below the table-board, the lower is a blowdown valve which is easy to clean and letout;
- Be equipped with exhaust hood and exhaust duct; Options: Exhaust fan.
|
Model |
BSC-1300IIA2
(Compact Type) |
BSC-1300IIA2 |
BSC-1300IIB2
(Compact Type) |
BSC-1300IIB2 |
|
Display |
LCD screen displays wind speed and pressure |
|
Suitable Number of People |
Single |
Double |
Single |
Double |
|
Performance |
Cleanliness Class |
Class100(Fed209E)≥ 0.5μ m≤ 3.5 grain/L |
|
Inflow Air Velocity |
0.53m/s |
0.56m/s |
|
Down Airflow Velocity |
0.35m/s |
|
Down Airflow Precision |
± 0.015m/s |
Pressure Difference
Display Range |
0-500pa |
|
Noise |
≤ 65db |
|
Vibration/ Half Peak Value |
≤ 5μ m |
|
Illuminance |
≥ 650Lx |
Operating
Environment |
Ambient Temp. |
10-30º C |
|
Relative humidity |
≤ 70%( at 25º C) |
|
Atmospheric Pressure |
80-105Pa |
|
Dimensions |
Working zone (L*D*H mm) |
1000*675*671 |
1300*675*671 |
1000*675*671 |
1300*675*671 |
|
Overall Size |
1120*890*1585 |
1420*890*1585 |
1120*890*1585 |
1420*890*1585 |
|
Inflow HEPA |
1026*606*70 |
1326*606*70 |
1026*606*70 |
1326*606*70 |
|
Exhaust HEPA |
540*450*90 |
840*450*90 |
482*450*90 |
782*450*90 |
|
Lamp/ UV light |
30wx1/ 18wx1 |
40wx1/ 30wx1 |
30wx1/ 18wx1 |
40wx1/ 30wx1 |
|
Power (KW) |
1.25kw |
1.4kw |
1.3kw |
1.4kw |
|
Power supply |
AC220± 10V 50/60Hz |
