Price: | US $ 1600-1900/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Prod Model: | 11231BBC86 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: | 2 Feet |
UV Lamp: | 15W*1 |
Consumption: | 500W |
Socket: | Two Total Load of Two Sockets:500W |
Fluorescent Lamp: | 40W*1 |
Material: | Work Zone:304 Stainless Steel |
Work Surface Height: | 750mm with Optional Basestand |
Gross Weight With Base Stand: | Wooden:196kg |
Tested Opening: | Safety Height: 200mm(8") |
Control System: | Microprocessor |

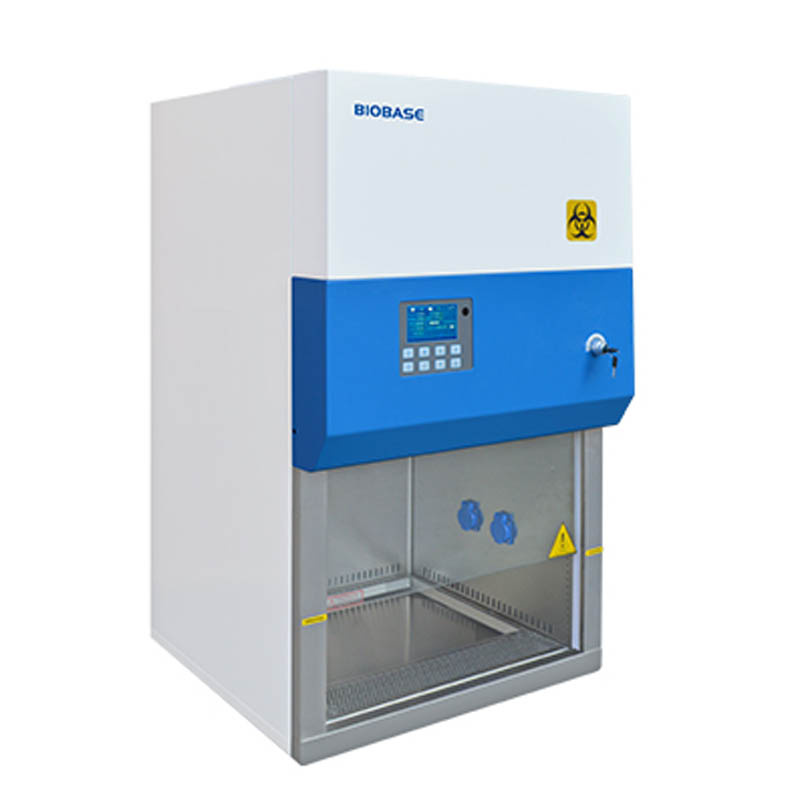

Biosafety Cabinet, Class II A2
Three protection: operator, sample and environment.
Airflow system: 70% air recirculation, 30% air exhaust
A2 Cabinet is suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.
Advantage:
1. Small dimension,save space.
2. Centrifugal fan, speed, adjustable; H14 HEPA filter.
3. Large LCD diaplay: Operators can check detailed status of the cabinet, such as inflow and downflow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator etc.
4. Time reaerve function: This can save 30 minutes waiting time after activating the cabinet and the sterilization time after experiment.
5. Remote control: Each function can be realized 6 meters away from the cabinet by remote control, which can protect the operator under emergency.
6. Motorized front window: The front window is motorized for convenient, one-hand operation.
7. Voice prompt function: Airflow alarm, filter replacing alarm and front window height alarm.
Standard Accessory:
Fluorescent lamp 1pc
UV lamp 2pcs
Remote control 1pc
Waterproof sockets 2pcs
Optional Accessory:
Base stand
Universal caster with brake and leveling feet

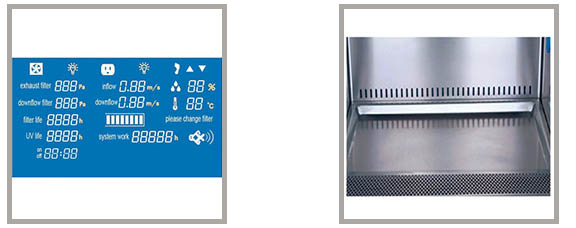

LCD display Work Zone
Large Digital LCD displsy is easy to monitor Work zone is made of 304 stainless steel,
all the safety parameters at a glance and is surround by negative pressure.
ergonomically sized control panel improves
user interface.

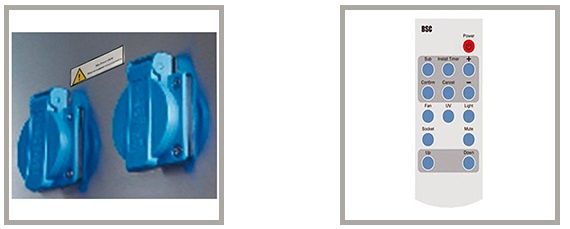

Waterproof Socket Remote Control
2 waterproof sockets are located in the side All functions can be realized with it, making
panel for optimum convenience of using the operation much easier and convenient.
small devices inside the cabinet.
UV Lamp
Emission of 253.7 nanometers for most efficient decontamination.
Model | 11231BBC86 |
External Size(W*D*H) | 700*650*1230 mm |
Internal Size(W*D*H) | 600*500*540 mm |
Tested Opening | Safety height: 200mm(8") |
Max Opening | 370 mm(15'') |
Inflow Velocity | 0.53±0.025 m/s |
Down Flow Velocity | 0.33±0.025 m/s |
HEPA Filter | Two, 99.999% efficient at 0.3μm. Filter life indicator. |
Front Window | Motorized. Two-layer laminated toughened glass ≥ 5mm. Anti UV. |
Noise | EN12469 ≤ 58 dB / NSF49 ≤ 61 dB |
UV Lamp | 15W*1 |
| UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination. |
Fluorescent Lamp | 40W*1 |
Illumination | ≥1000Lux |
Consumption | 500W |
Socket | Two, total load of two sockets: 500W |
Display | LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity,filter life, humidity and temperature, system working time etc. |
Control System | Microprocessor |
Airflow System | 70% air recirculation, 30% air exhaust |
Visual and Audio alarm | Filter replacement, window over height, abnormal air flow velocity. |
Material | Work Zone: 304 stainless steel |
| Main Body: Cold-rolled steel with anti-bacteria powder coating. |
Work Surface Height | 750mm with optional base stand |
Power Supply | AC220V±10%, 50/60Hz; 110V±10%,60Hz |
Standard Accessory | Fluorescent lamp, UV lamp*2, Remote control, Waterproof sockets*2 |
Optional Accessory | Base stand, Universal caster with brake and leveling feet. |
Gross Weight without Base Stand | Wooden: 164kg Carton:121kg |
Gross weight with Base Stand | Wooden:196kg |
Package Size without Base Stand (W*D*H) | Wooden:860*800*1450mm Carton:820*760*1430mm |
Package Size with Base Stand (W*D*H) | Wooden: 860*960*1450mm |

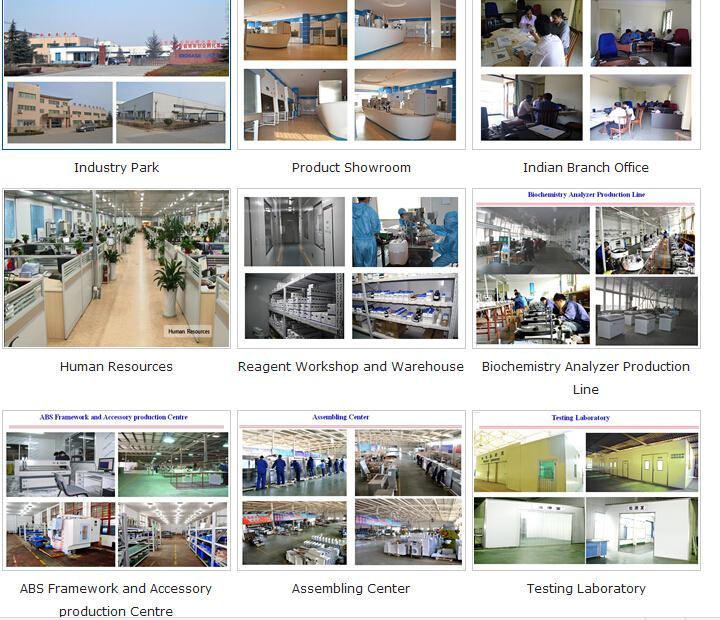

BIOBASE group, founded in 1999 and been through high and stable development for 17 years, who is now with revenues of one hundred million, 1200 employees in China and abroad offices, 22.4 acres land industry parks and 20000 square meters production base. The products we manufacture extends to most of the laboratory items and scientific analytical equipments. Our mission is to enable our customers to make the world healthier, cleaner and safer. BIOBASE group invests in science and technology research, aim to keep impoving products performance and quality as well as develop new products to meet customers wide requirement. We satisfy our customers by offering comprehensive support, purchase convenience and we are ready to serves more and more BIOBASE users. BIOBASE group, serving global distributors and its loyal end users, is becoming one of the most important scientific services supplier. We have branch office in USA, India and Jordan . Till now we have exported to more than 200 countries. |
