| Price: | US $ 100-500/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | LK09SMC48 |
|---|---|
| Installation: | Quick and Convenient |
| Sample: | Available |
| Service: | OEM, ODM |
| Place Of Origin: | Guangdong, China |
| Capacity Of Fiber: | 48/144/288/576 Cores |
| Delivery Detail: | 7 Days |
| Package: | Inner Bag, Box and Carton Package |
| Shipping Terms: | DHL/FedEx/EMS/UPS/TNT Ect. |
| Material: | SMC, Cold-Rolled Steel or Stainless Steel |
| Quality: | High Quality and Best After-Sale Service |
| Type: | Optical Fiber Distribution Box |
| Wiring Devices: | ODF |
| Certification: | GS |
| Condition: | New |

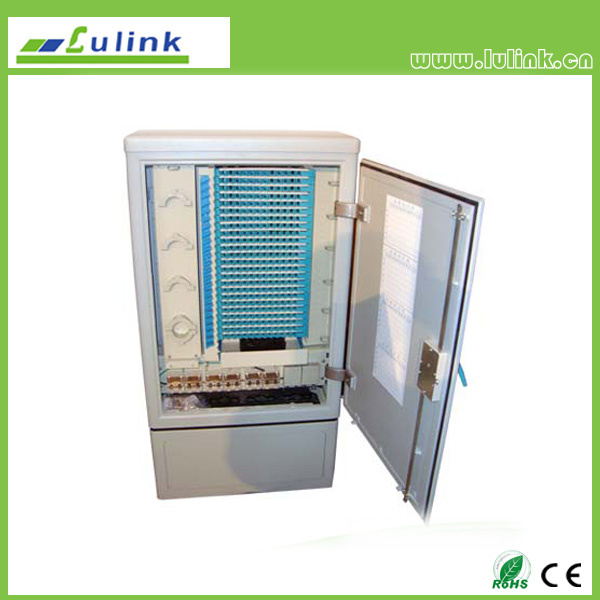

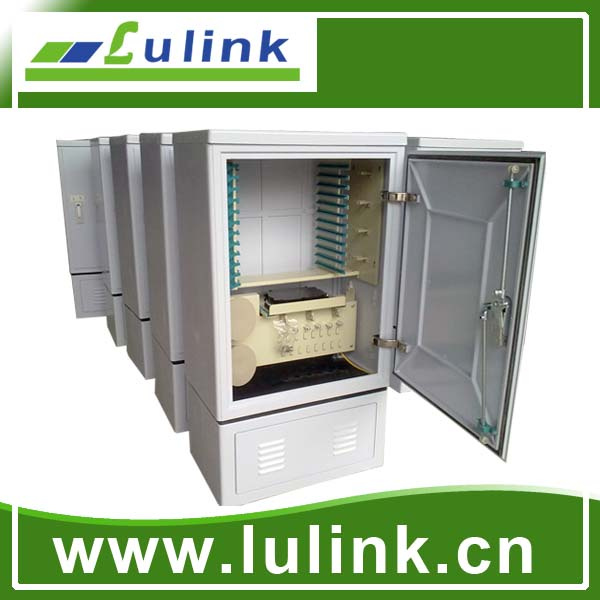

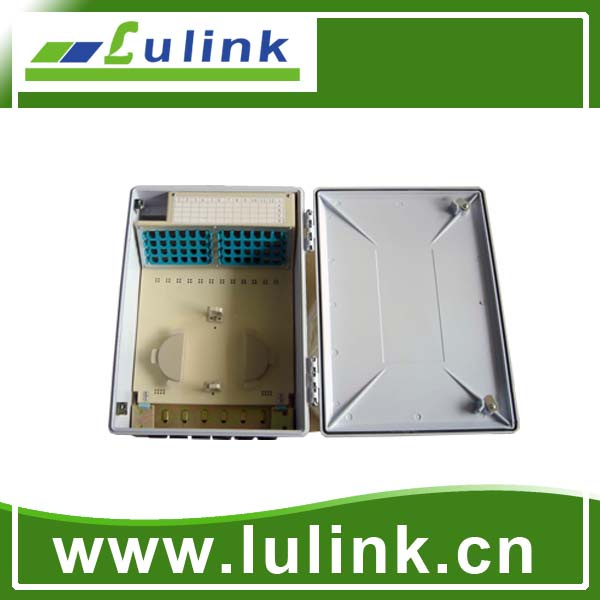

| Details: Fiber optic cross connect cabinet is an outdoor optical equipment that is especially designed for outdoor optical nodes in access network. Features: *High intensity and anti-erosion performance * Able to counter abrupt climate change and extreme environment * Capacity can be flexibly customized as required * Installation is quick and convenient * Built-in direct splice unit is capable for providing direct connection function. * Perfect design of fiber wiring routing could facilitate management and maintenance of fibers * With secure and reliable fastening and grounding protection devices for the optic fiber * Applicable to strap-shaped and non-strap shaped fibers Material: * SMC, Cold-rolled steel or stainless steel Technical Parameters: * Nominal work wave-length: 850nm, 1310nm, 1550nm * Operating temperature: -5ºC-+40ºC * Storage temperature: -40ºC +70ºC * Relative humidity:≤85%(+30ºC) * Atmospheric pressure: 70~106 KPa * Insertion loss: ≤0.2dB * Return loss:≥45dB (PC), ≥50dB(UPC), ≥60dB(APC) * Isolation resistance:≥1000MΩ/500V(DC) * Durability:>1000 times *Anti-voltage strength: ≥3000V(DC)/1min Specification: Model: outdoor Wall-mount Type, suit for SC, FC adapter, 2m length pigtail, and 2-3m patch cord. Max. capacity of fiber: 48Core Dimension: 450×315×185mm |

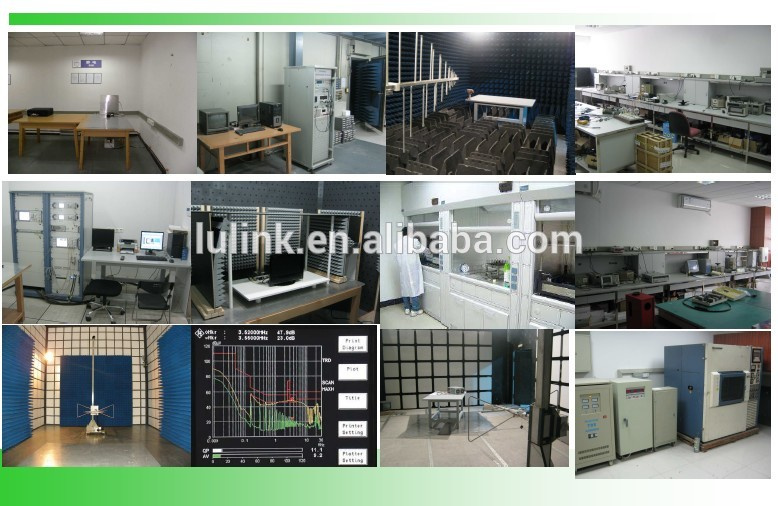

The most advanced equipments for both producing and testing, which imported from Europe and America.
The main export markets:
North America, Asia ,Western Europe , Australia , Africa ,South America ,Middle East
Our service:
1)Reply your enquiry within 24 working hours;
2)Experienced staffs answer all your questions in fluent English;
3)Customized Design is available,OEM&ODM are welcomed;
4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs;
5)Special discount and protection of sales area will be provided to our distributor.
Shipping:
BY DHL, UPS, FedEx, TNT, EMS etc...
For mass order delivery, can be optional with terms of Exwork, FOB, CNF, CIF by air or by sea based on the buyer forwarder.
Payment:
Paypal, Escrow for samples, small qty order or urgent orders at the buyer convenience .TT, L/C, Western Union for mass orders.
30% as Deposit, 70% Balance paid before delivery
Packing:
Lulink Electronics Technology Co. Ltd
Established in 2005 with headquarter and R&D managing department based in Guangzhou.
Lulink is an export organization specialized in developing,designing,producing network intellgent wire and telecommunication equipments,the products range consists of main categories and metal sheeting,Lulink is supported by a strong R&D team which has more than three years experience in the field of technology and integrating brilliant designers,technicians,support groups,sales and marketing organizations.We offers and accepts OEM/ODM service to customers.We have evperienced employees,respectively specialized in management,all the workers received the professional training with some years experience for their activities.
Our Main products:
Copper System:LAN cables, Adaptor, Connector and Spliter, Cabinet, PATCH CORD, TOOLS, Coaxial cables
