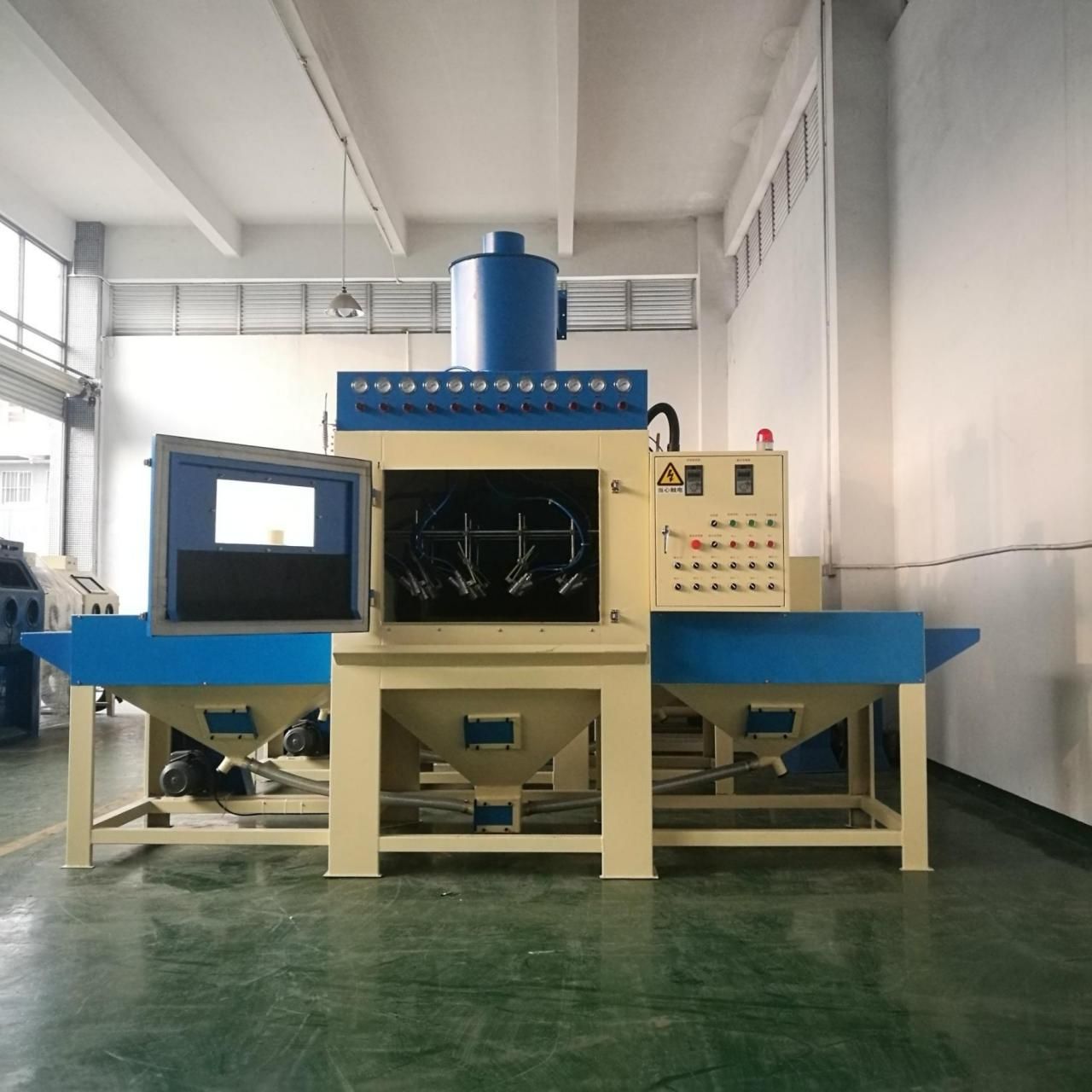

Belt Convery Transmission Sandblasting Cabinet
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Product Description
Automatic sandblaster equipmentScope of application
Glass, tile, iron, aluminum, aluminum, computer host shell, laptop computer shell skeleton, stone and other surface blasting
Product parameters
Mainframe dimensions: 3200 * 2100 * 1850mm
Dust box size: 1200 * 1200 * 1700mm
Separation sand motor: 380V / 5.5KW
Machine lighting: 220V 13W energy-saving lamps
Separator air flow: 8.5m3 / min
Working pressure: 2-7bar (kg / cm2)
Dust removal method: an independent filter-type automatic dust removal system, pulse dust;
Air source requirements: pressure 7BAR (kg / square meter) flow 0.8-1.2 cubic meters / minAutomatic sandblasting machine features:
1. V-belt conveyor using the workpiece, will not have the phenomenon of accumulation of sand, belt speed with sandblasting process requirements can achieve frequency control;
2. The angle of each gun can be adjusted automatically gun rack automatic variable frequency swing and fixed-point sandblasting, flexibility, and wide applicability
3. The use of advanced on the cyclone system configuration, dust separation effect is good, high sandblasting efficiency;
4. Adopt PLC electrical advanced control system, high degree of automation, good stability, low failure rate;
5. Nozzle made of special wear-resistant boron carbide material, long service life;
6. Independent filter-type automatic dust removal system, pulse dust, good ventilation and ventilation; (also optional: bag-type dust)
7. Abrasive waved with a combination of spiral conveying and pneumatic recovery, recovery and stability is good
8. Wet blasting, no dust, environmental protection, sand blasting effect of precision;
9. Suitable for high-quality high-volu
me sandblasting processing;
10. Can be customized according to customer requirements and workpiece requirements

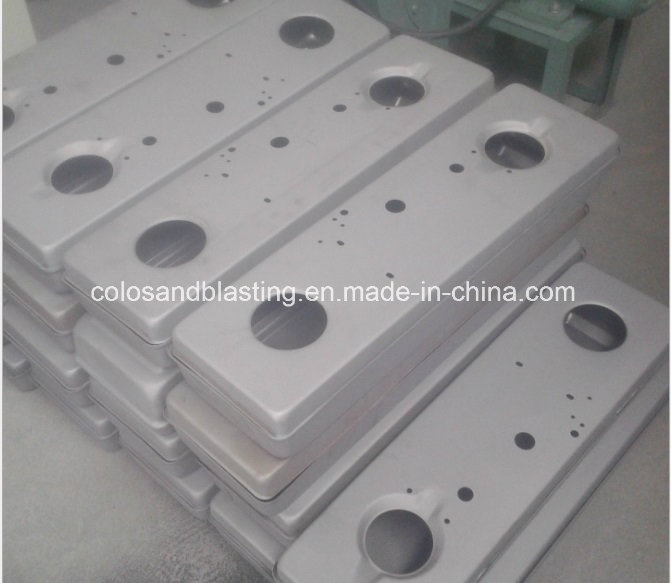

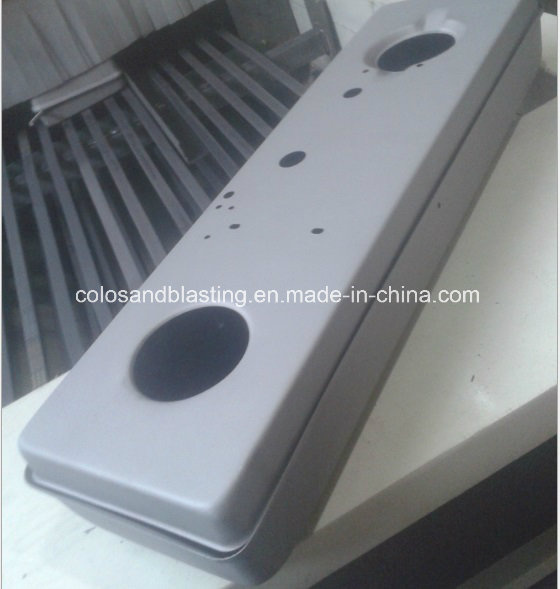

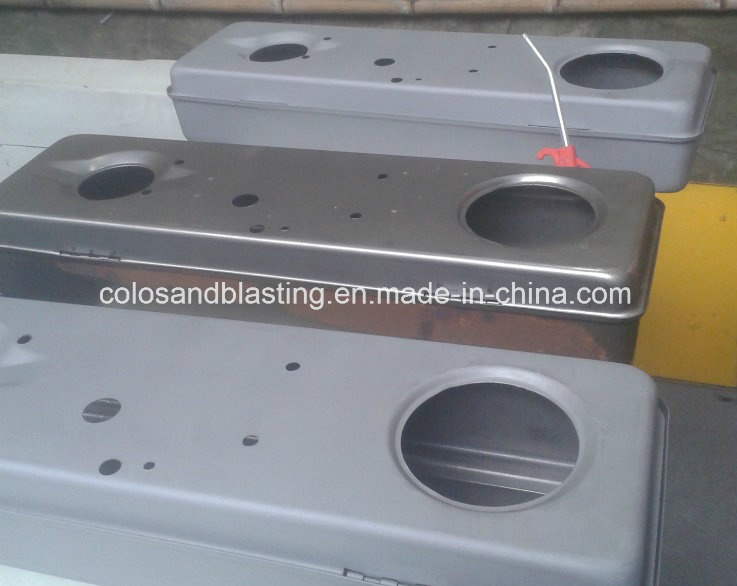

details &Sand blasting effect
We Specialized in automatic sandblasting machine, manual sandblasting machine, wet sandblasting machine, open mobile type sand blasting machine, shot blasting machine and other surface treatment equipment, our company with advanced production equipment, and testing equipment, and has a group of experienced professional technical personnel, our production process in the procurement of raw materials, finished products, storage and logistics management in strict accordance with the standards of quality management. Company team focused on a variety of surface treatment equipment R & D, we can customize according to customer special requirements of various sandblasting equipment.
Our sandblast product have a wide kinds of variety, complete models, in addition to blasting equipment we wholesale sales of various sandblasting materials and blasting abrasive; , blasting spare parts: Sand blasting guns, spray nozzles, gloves, sandblasting pipe, sandblasting machine and other special fan blasting accessories, sandblasting abrasive: White corundum, brown corundum, glass beads, silicon carbide, silicon carbide, ceramic sand, sand, sand, walnut, stainless steel shot, steel shot, steel cut wire shot etc...
At present we have exported into more than 100 countries, COLO-leader in the sandblast equipment and powder coating equipment in China, we are your worldwide partner in the pre-treatment solution.
We have warehouse USA, we can supply fast delivery and after-sales services in USA, Canada and Mexico also we have sales team that can speak different languages, such as German, Spanish, English, can serve the global user, welcome to visist us or contact with us!
