| Prod Model: |
BAE509 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Platform Dimention: |
2000X900mm |
| Exterior Dimention: |
2200X1050mm |
| Motor Quantity And Brand: |
4 Sets, Chinese Brand Standard/ Dewart Motor Optio |
| Moteck Motor: |
4 PCS |
| Water-Resistant: |
Ipx4 |
| Height Adjustment: |
390-800mm |
| Castors: |
4 X 100 mm Diameter |
| Hand Controller: |
Yes |
| OEM: |
Available |
| Location: |
1.5 Hours From Shanghai |
| Type Of Hospital Bed: |
Nursing Bed |
| Folded: |
Unfolded |
| Using Ambient: |
Hospital |
| Numbers Of Function: |
Five-function |
| Certification: |
ISO13485 |
| Material: |
Wooden+Metal |
Product Description

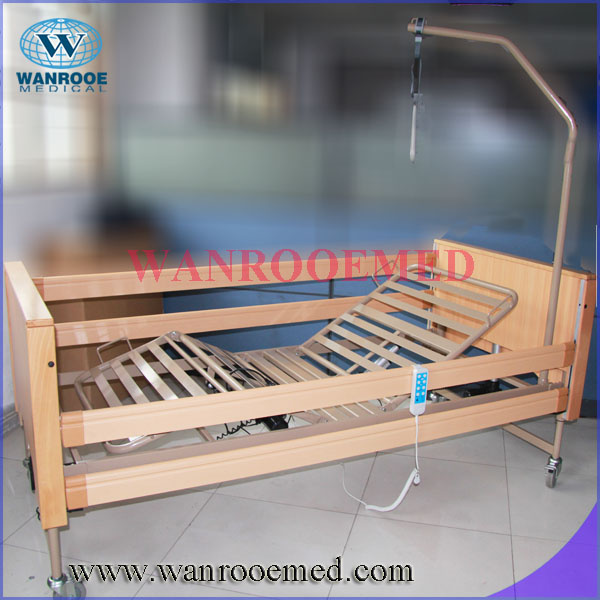

BAE509 Five Function Electric Nursing Home Care Bed
High comfort care bed with stepless motorized motion of the platform lifting system, the backrest and the foot rest. Suitable for use in nursing homes and in a homely environment.
It is used for families, hospitals etc, a popular product for EU market.
Features
1. The bed is designed for use with a standard mattress of 200 x 89 x 10 cm (not included)
2. 4-section platform, no-slip design.
3. actuators driven the motions of the platform, adjusted by the handset with single fault safety and locking device
4. optional: A lifting (monkey) pole with triangular hand grip supports patients to easily lift into a sitting position
5. Wooden headboard and footboard Full length Wooden imitation aluminum alloy side rails to protect people from falling off in raised position, and easy to get out when lowered.
6. 4 x 100 mm diameter individually lockable castors.
7. optional: Emergency battery powered lowering in case of main power failure.
8. Surface treatment: powder coated in Grey or Ivory.
9. Complied with IEC 60601-2-52-12-2009.
Technical Parameters:
| Platform dimension | 2000X900mm |
| Exterior dimension | 2200X1050mm |
| Max patient weight | 180KGS |
| Safe working load | 205KGS |
| Backrest adjustable range | 0-70° |
| Footrest adjustable range | 0-40° |
| Height adjustable range | 390-800mm |
| Trendelenburg positioning function | 20° |
| Reverse trendelenburg positioning function | 20° |
| Motor quantity and brand | 4 sets, Chinese brand standard/ Dewart Motor optional |
| Water-resistant | IPX4 |
| Distortion-free, highly stable side rails | Yes |
| Package information | Vertical package:
20GP: 30pcs, 40GP: 65pcs, 40HQ:130pcs
So if vertical package, the 40HQ is a best choice, as can load more goods!| item | Carton size | N.W. | G.W. | One bed/3 cartons | | Bed frame | 960*420*1230mm | 95 | 105 | | siderails | 2010*155*110 | 4 | 6 | | Money pole-optional | 1640*470*52mm | 5 | 7 |
Ordinary package:
20GP: 44pcs, 40GP: 90pcs, 40HQ:100pcs
Net weight: 105kgs, gross weight:117kgs| item | Carton size | N.W. | G.W. | One bed/4 cartons | | Headboard/footboard | 1115*990*260mm | 46 | 50 | | Bed frame | 1115*990*297mm | 46 | 50 | | siderails | 2010*155*120 | 8 | 10 | | Money pole-optional | 1640*470*52mm | 5 | 7 |
|
