| Prod Model: |
JY-750 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Jy-750 |
| Fixed Seat: |
Gym, Stadium, Football Field |
| Inflatable: |
No |
| Place Of Origin: |
Chongqing China |
| Color: |
Optional |
| General Use: |
Stadium Seats for Bleachers |
| Size: |
Customized |
| Folded: |
Unfolded |
| Material: |
Quality Carbon Structural |
| Disassembly: |
Assembly |
| Usage: |
Auditorium, Hall,Theater |
Product Description

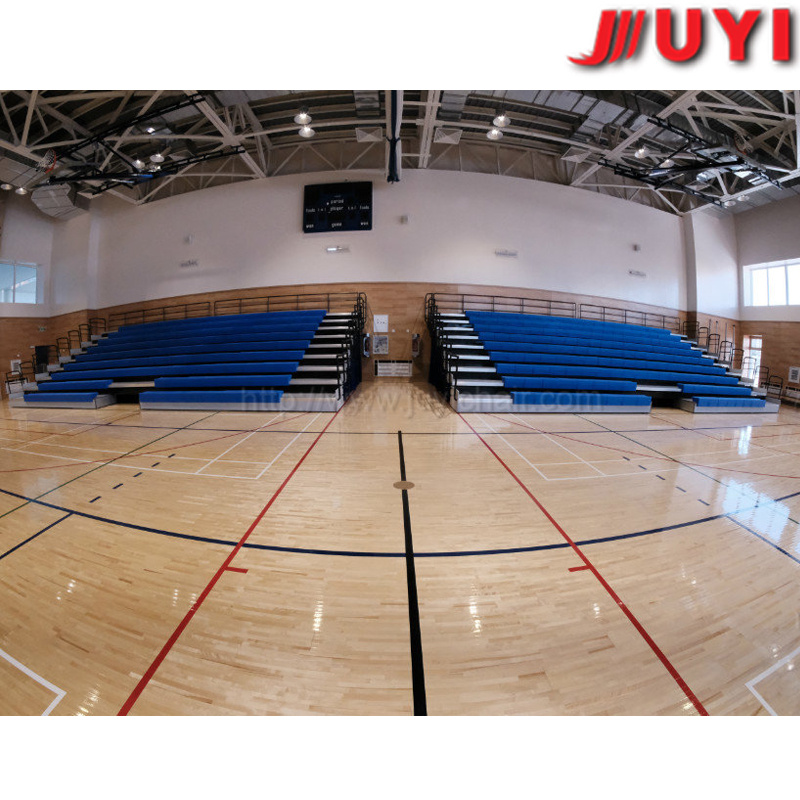

Badmintion court bleacher Retractable Wholesale bleacher Plastic Portable tribune Baseball Stadium Seat
Introduction
Telescopic seating system is widely used in variety spaces like stadiums , TV studios and all kinds of multifunctional places with its advantage in space saving.
You can enjoy all events sitting on the comfortable telescopic stand when it's pulled and extended in a shape of steps.

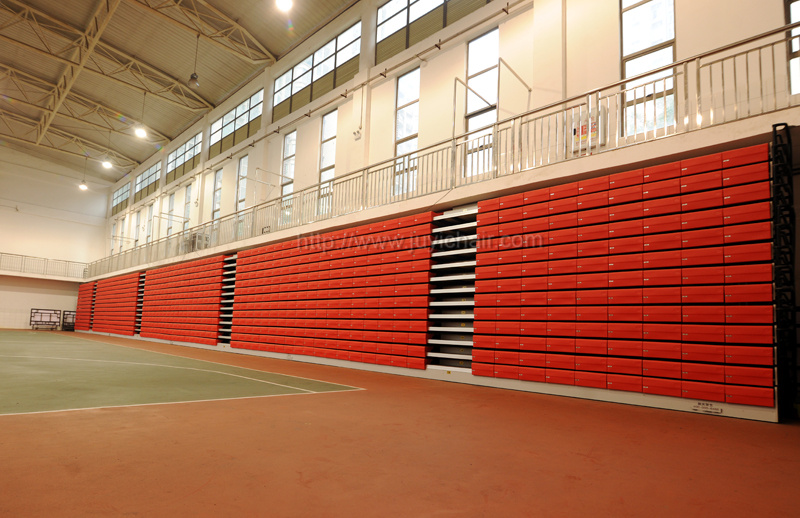

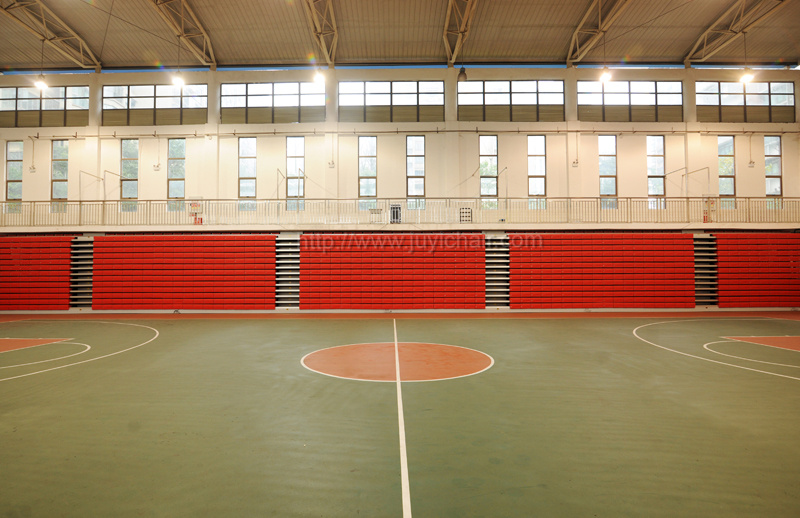

When it is closed, you can save a lot of spaces, and carry out other activities.
Our telescopic stand is driven by manual and electric ,with the great structure design ,beautiful style, reliable safety measures and accurate locations.
Easy operation , convenient maintenance, low noise are advantages of the telescopic seating system.
Specifications for chairs fixed on the bleacher:
1. HDPE plastic bench chairs.
2. Color is optional according the the color swatch.
2. Center distance: 455mm width.
Whole Structures of the telescopic seating system
1. Accordingly to grandstand dimensions, different types of steel profiles are used.It can be manual or motorized through electric engines working at 380V or 220V or by means of small tractors hooked to the structure.
2. The load distributor is a device specially created to reduce the concentrated load transmitted to the flooring system. A special spring system allows to the "unloaded" grandstand to "float" over the wheels.
3. When the grandstand is "loaded" the springs are compressed and the load distributor start working resting over the floor. Detail of the ground fixing system of the last row by means of floor or wall fixing dowels.
4. Traveling wheel shelf is made of 100mmx50mmx3mm rectangle tube, metal material: Q235A; Pillar is made of 3mm Cold-Roll Steel Sheets and Cold Roll Forming, metal material : Q235A.
Specifications for the system
Moving speed: 100mm/s
Location Accuracy: +_30mm
Driving Motor power: 0.37-1.1kw
Power: AC 380V 50-60HZ(AC 220V 50-60HZ)
Lateral Depth of the steps: 800-930mm; 1800-1850mm
Allowed dynamic load in the step surface: 300kg/
Load of bottom wheel: ≥300kg/piece
MOQ:100 seats
Delivery Time:20-30 working days
Payment Terms: T/T, L/C
Port of delivery:Chongqing,China
Chongqing JUYI Industry Co., Ltd. is a professional manufacturer of auditorium chairs, telescopic bleacher seating system, sports stadium seats and stage equipment for kinds of sports arena, performance halls, theaters, Cinema and Multifunctional Hall.
We design, develop, produce, install and maintain kinds of outdoor or indoor sports stadium seats and auditoriums chairs. In order to be successful in China's chair industry, we are combining different styles and designs according to the principle of human body engineering. Elegance exists with simplicity and functional optimization.
In the past years, we supplied so many chairs and telescopic seating system to some important domestic and oversea projects. Such as 2008 Beijing Olympic Games press center hall; 2014 Winter Olympic game in Sochi, Russia; PLA General Armament Department Conference Hall in Beijing; Tianjin Binhu Theater; Gansu Jia Yu Guan Theater; 2011 Shenzhen Universiade; Yan Tian Stadium, Jakarta Cibinong stadium etc.
Our products were exported to many countries in North America, South America, Eastern Europe, Africa, MID East, Eastern Asia, Northern Europe, Southern Europe, South Asia. For example, France, UK, Germany, Finland, Holland, Norway, Cyprus, Ice land, Malta, Russia, Georgia, Lithuania, Canada, Australia, USA, Mexico, Spain, Venezuela, Columbia, Puerto Rico, Ecuador, Kenya, Nigeria, Haiti, Saudi Arabia, Dubai, Yemen, Kuwait, Qatar, Iraq, Iran, Lebanon, Indonesia, Thailand, Philippines, India, Singapore, Sri Lanka, Vietnam, Malaysia etc.
Layout drawing design before order and installation support after order are both available from us; 5 years guarantee after sales is provided.
All countries business people and project bidder are great welcome to visiting our factory to check production site and talk business, We expect you join us to gain various project on seating and stage equipment projects.
