| Price: | US $ 50-54/Set |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 50/Set |
| Pay Type: | L/C,T/T |
| Prod Model: | ST-S-0010 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | White/Black/Ral |
| Surface Treatment: | Powder Coat Finish |
| Material: | Steel |
| Style: | Back Net Style |
| Side Number: | Double Sided |
| Weight: | Light Weight |
| Rotary: | Fixed |
| Usage: | Convenient Store |
| Customized: | Customized |
1.High quality SPCC/Q235 steel material, strong frame
2.Succinct structure, can easily assemble without bolts and nuts
3.Shelf can be adjusted every 25mm
4.Environmental powder coat finishing, Anti-corrosion/good appearance
5.Any color is available on RAL
6.Style and size can be customized as your requirment or design
7.Factory manufacturer provide sufficient supply and competitive price
8.Strong package and fast delivery
9. More than 13 years exprience in this field, provide a professional solution and excellent after-sale service

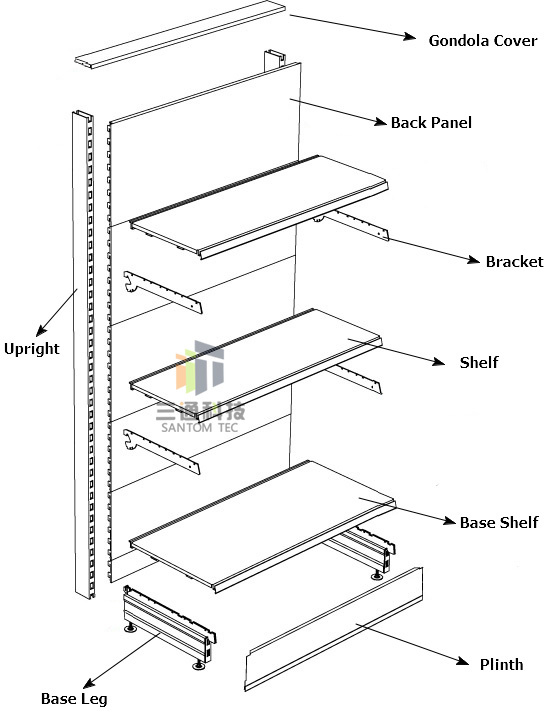

| Gondola Shelf detailed Specification | ||||||||||
| Upright | Height:1510/1610/1810/2110/2410mm |  | ||||||||
| Thickness: 2.5mm | ||||||||||
| Base Leg | Depth:300/370/470/570/670mm | |||||||||
| Height:140mm | ||||||||||
| Back Panel | Length:665/1000/1250/1330mm | |||||||||
| Height:100/200/300/400mm | ||||||||||
| Thickness: 0.5-1.0mm | ||||||||||
| Shelf | Length:665/1000/1250/1330mm | |||||||||
| Depth:300/370/470/570/670mm | ||||||||||
| Thickness: 0.7-1.0mm | ||||||||||
| Bracket | Depth:300/370/470/570/670mm | |||||||||
| Thinckness:2.5/3.0mm | ||||||||||
| Plinth | Length:665/1000/1250/1330mm | |||||||||
| Cover | Length:665/1000/1250/1330mm | |||||||||
| Material | Steel Q235 | |||||||||
| Surface | Powder Coat | |||||||||

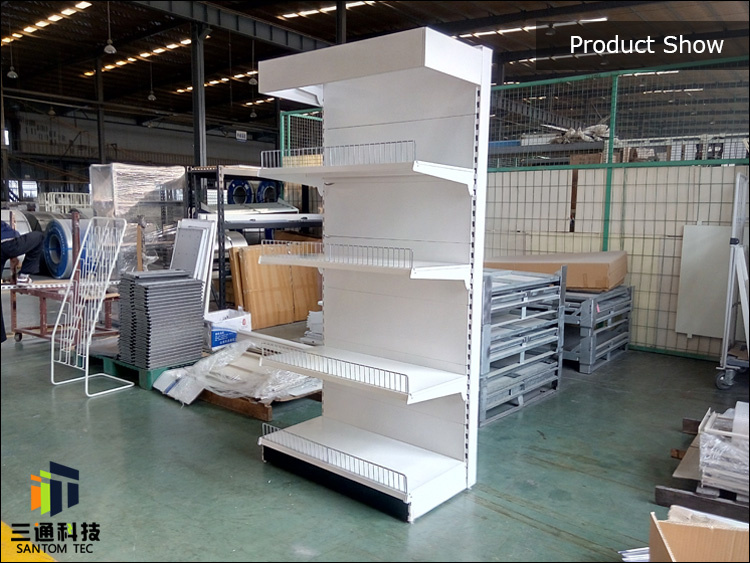

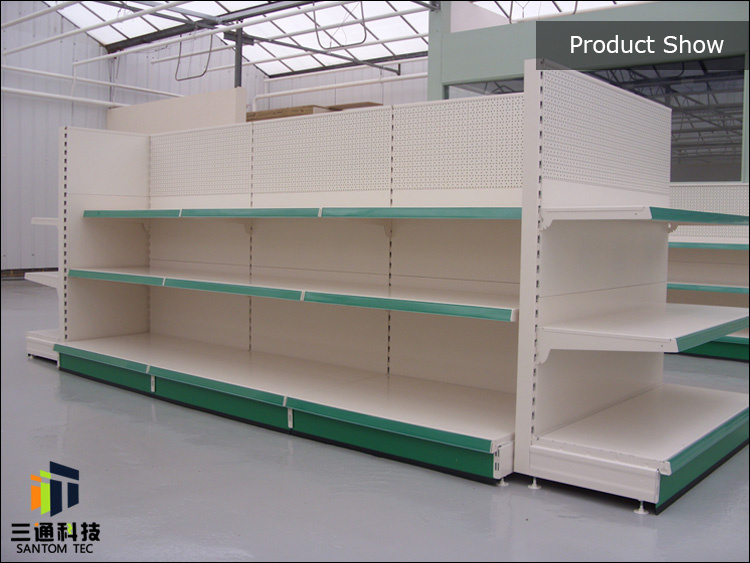

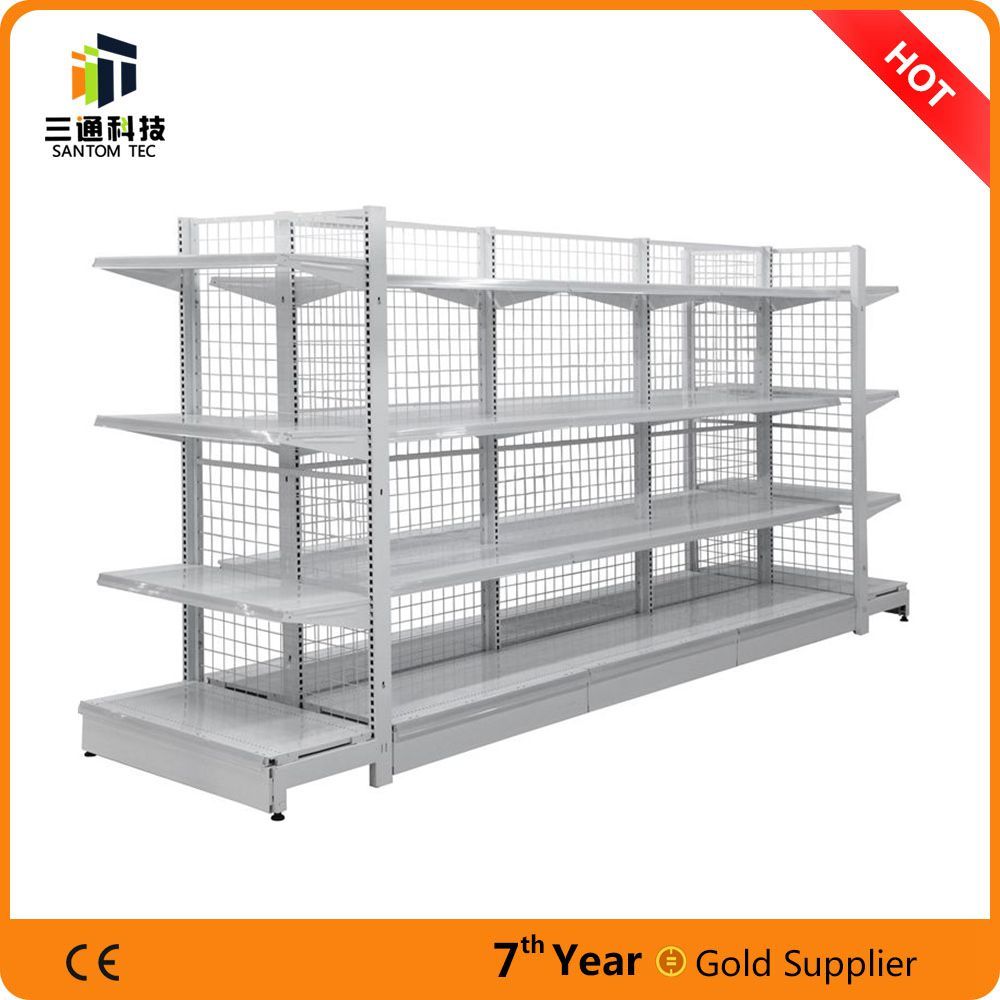

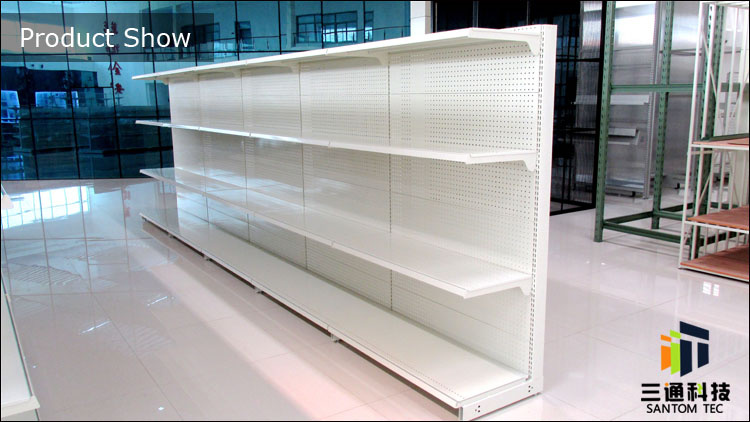

Product detail

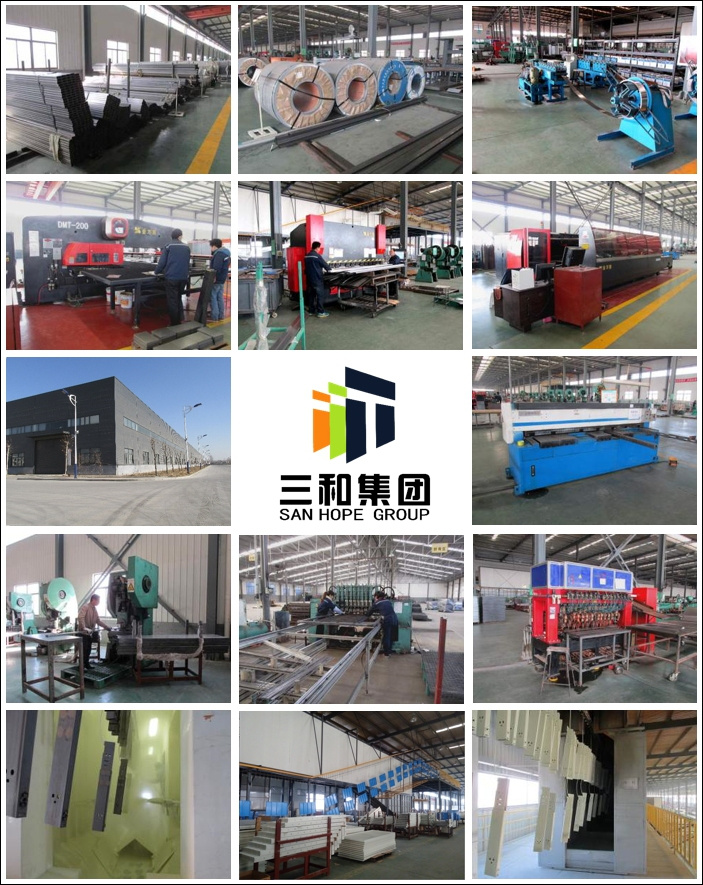

Factory Photos
FAQ
1.What is the material being used for your products?
Steel Plate:Q235
Steel Tube:Q235
Steel Wire: Q195
2.How is the goods being packed?
5 layer brown carton is our standard packing, could also be packed on pallet or as your requirment.
3.What is the payment terms available to you?
T/T or LC at sight, it could be discussed if we can establish long term business relationship.
4.What kind of surface treatment do you provide for your goods?
Powder coating, Galvanized ,chrome coating are available
5.What is the loading capacity?
Different products have different loading capacity, pls contact us for detailed data
6.What is the MOQ I can order?
It depends on the size of your products.
7.What is your average production delivery time?
20-30 day against formal order and deposit.
8. I'm not sure about your product, can you send me sample for reference?
Samples are free of charge except for the freight fee.
9. I like your design, but couldnt find the right model from the products catalog, is custom size available?
Yes, we are good at producing products according to your design.
10. I would like to have my own design products and qty is not that big, is it ok?
Yes, we can go with your customized design, no matter small or big qty. However, pls understand
the cost will be different.
11.I don' have any drawing or pictures available for the customized products, could you design it for me?
Sure, we can make the best suitable design for you as long as we get the details such as
a) dimension b) loading capacity
c) stackability d) surface treatment etc.
If the FAQ could not help you, pls send us inquiry with your requirement or questions, we are always at your service.
