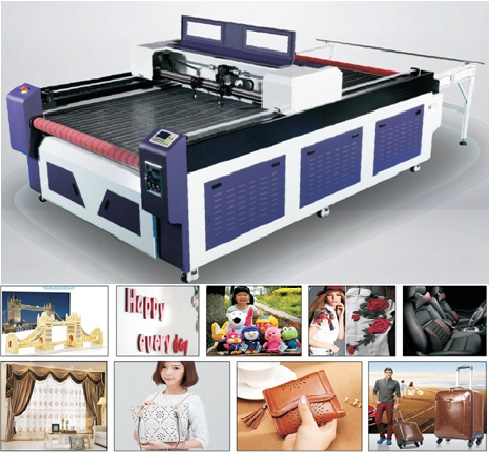

Automatic Non-Metal Material Large Size Laser Cutting Bed
| Price: |
US $ 4000-10000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
DBYNC1625D-AF |
Product Description
| Features |
| 1. This machine is equipped with auto roll conveyor system for working table, together precise control adjustment, it can finish materials feeding automatically, which save a lot of time and labor for materials feeding , so the working efficiency is greatly enhanced. It is best choice for the rolling type material cutting . |
| 2. It suitable for Garment, shoe industry, Home textiles, embroidery patch cutting , leather, luggage, outdoors , automotive interiors and so on. |
| 3. It suitable for cloth, leather, wool fabric, paper, rubber ,wood, acrylic, pvc plate,plexiglass,epoxy resin,crystal, tile and so on. |
| Technical Parameters |
| Model Number | DBYS6040/9060/10080/12090/14090 |
| Laser power | sealed co2 Glass laser tube*2pcs, 60w/80w/100w/130w |
| Engraving speed | 1-60000mm/min |
| Repeating position accuracy | ±0.01mm |
| Working Area | 600*400/900*600/1000*800/1200*900/1400*900MM |
| Cooling system | water cooling |
| Compatible software | CorelDraw, AutoCAD, Photoshop |
| Format supported | AI.BMP.PLT.DXF.DST. AND SO ON. |
| Power | AC220V±10%,50/60HZ |
| Working environment | Temerature: 0-30ºC,Humidity: 30-80%(No condensate water) |
| Certification | CE |
With professional expertise in the shoe machine and materials for more than 10 years, Wenzhou Atlantic IMP. &EXP., Co., Ltd, Get great succees in his business, ang high reputations among the customers served. Now we are comprehensive company not only the machines, but also the materials as well as the expertise in give one solutions who want set up a whole shoe factory themselves. We now be very confident to realizse the" cusotmer first, quality first, serves first " pinciple by the "mutual benefits". Welcome to us, and let us grow together.
We cooperate with our customers including
South Asia like India, Pakistan etc.
Southeast Asia like indanisia, Tailand etc,
Eruope: Russia, Italy, Romania
North America: America
South America: Colombia, Peru, Brasil
Africa: South Africa.
This vast and successful copoperation will let you make our as your member of your business engine to boost in the future.
