| Prod Model: |
SKWT-6515M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 6500X1500mm: |
3-25mm |
| Type: |
Glass Bending Machine |
| Certification: |
ISO |
| Control System: |
Manual |
Product Description
SANKEN Excellent Automatic Glass Bending Tempering Furnace for Washing Basin Making
SKWT-6515M Manual Glass Wash Basin Bending & Tempering Furnace - For Small Glass Basin Making
Main Specification:
Main Furnace Size: L 1500 x W 1500 x H 2500mm
Main Furnace Power: 24 KW
Blower Device Size: L 800 x W 800 x H 1800mm
Blower Device Power: 1KW
Processing Thickness: 12 ~ 19MM
Max. Processing Size: 650 x 650mm
Min. Processing Size: 150 x 150mm
Max. Height: 140mm
Total Power: 20.5 KW ( 380V/50Hz)
Processing Speed: 20-25mins / 1pc ( T10mm Glass)
Gross Weight: 1.3 Tons
SANKEN Glass Hand Washing Basin Production Line
Whole Production Line Process:
(1) Glass Cutting - Recommend:
A. Best quality: SKC-3725A CNC Automatic Cutting For Irregular shape & Straight Line Cutting.
B. Economical: SKS-3725S Semi-automatic Cutting For Straight Line Cutting only.
C. Just use Cutting Tools, such as: Hand cutter, T-Cutter, Round Cutter or OVAL cutter
(2) Straight Line Edging - Recommend:
A. Glass Straight Line Flat Edging Machine To make Flat Edge after Cutting. Recommend: SKE-9S (Best) or SKE-09B (Normal)
B. Straight Line Round Edging Machine. To make Pencil Round Edge after Cutting. Recommend: SKE-6 (Best) or SKR-06B (Normal)
(3) Irregular Shape Edging - Recommend:
SKS-02 (Best). To make glass edging of any shapes, such as round glass (For Round Wash Basin), oval glass (For Oval Wash Basin) or others irregular shape glass.
(4) Hole Drilling - Recommend:
SKD-02 (Best) - To make Drain Hole on the glass before bending & tempering with Automatic and Manual two operation functions.
(5) Glass Washing & Drying -Recommend:
SKW-1200 / SKW-1600. To wash & dry the glass well before bending & tempering - (If you want to wash bigger size of glass for others purpose, then you can buy SKW-2500)
(6) Glass Basin Bending & Tempering - Recommend:
A. Normal Bending only (No Tempering): SKF-2143 / SKF-1836 - Can bend any shapes of glass.
B. Manual Small Basin Bending & Tempering Furnace: SKWT-6515M

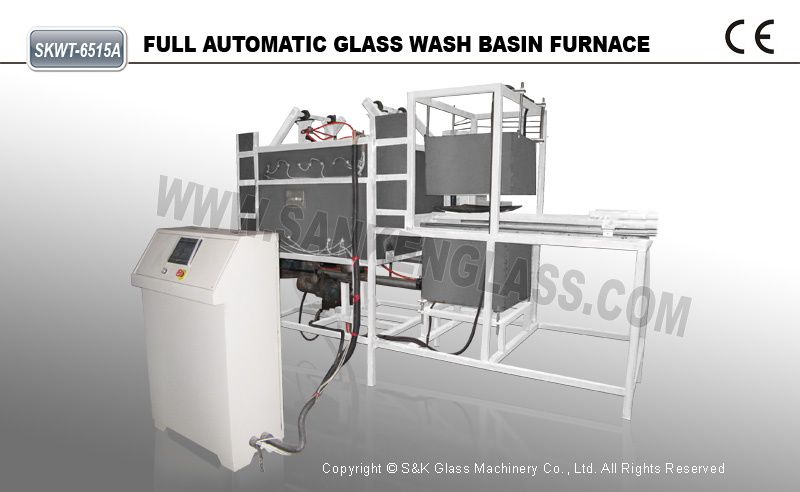

C. Automatic Small Basin Bending & Tempering Furnace: SKWT-6515A ( Controlled by PLC Touch Screen)
D. Automatic Big Vanity Basin Bending & Tempering Furnace: SKWT-1260 ( Controlled by PLC Touch Screen)
(7) Final Glass Basin Polishing.
Polishing by the Hand Portable Glass Polishing Machine.
| Type | Max. glass size
(mm) | Bending depth
(mm) | Installed power
(kw) | Dimension
(mm) | Weight
(kg) |
| SKF-1325 | 1300 x 2500 | 400+300 | 24 | 1800 x 3100 | 1600 |
| SKF-1525 | 1500 x 2500 | 400+300 | 30 | 2000 x 3100 | 1700 |
| SKF-1728 | 1700 x 2800 | 400+300 | 36 | 2200 x 3400 | 2000 |
| SKF-1830 | 1800 x 3000 | 400+300 | 40 | 2300 x 3700 | 2400 |
| SKF-1836 | 1800 x 3600 | 400+300 | 45 | 2300 x 4300 | 3000 |
S&K Glass Machinery Co., Ltd. is a powerful leading manufacturer and exporter of high quality, precision glass making machinery based in China. We specialize in the design, creation and manufacture of machinery for all elements of the glass processing industry.
We offer specialized machinery & tools for all phases of glass manufacturing, including:
- glass straight line edging machine,
- glass straight line double edger machine,
- glass beveling machine,
- glass round edging machine,
- straight line machine with 45 degree angle changing,
- glass irregular shape machine,
- vertical & horizontal glass washing machine,
- vertical & horizontal glass drilling machine,
- glass sandblasting machine,
- glass laminating machines,
- glass engraving machine,
- glass cutting machine,
- water jet cutting machine,
- heat bending or fusing furnaces,
- tempering production line,
- glass insulating line,
- others glass deep-processing machinery.
- with providing full range of excellent quality glass wheels / diamond tools / drill bits and etc glass equipment's spare parts!
For almost a decade we have provided quality glass machinery sales, service, installation, technical & solution support worldwide.
Our enviable reputation has been carefully built over the years by our commitment to fully understanding our clients needs and providing quality machinery at a reasonable price.
Our team of highly qualified and reliable professionals allows us to respond to your specific needs in a timely and knowledgeable fashion. We offer complete, one stop, international support for all phases of glass manufacturing from equipment selection through the actual installation and startup.
Our successful history of international sales allows us to anticipate and minimize any concerns associated with the logistics of shipping machinery to any country.
In addition to mainland China, we have provided export sales and support to many diverse clients located all over the world including: Portugal, Ukraine, Austrialia, Brazil, Mexico, Malaysia, Venezuela, India, Russia, Turkey, Iran, Pakistan, Sri Lanka, Yemen, Bengal, Czech Republic, Egypt, Jordan, Ecuador, Morocco, Mauritius. Our list of satisfied clients is growing monthly.
As a reputed professional Glass Machinery Manufacturer & Exporter, S&K always supply only Top Quality Products with Honesty, Trust & Reasonable Price to customers, So, if you purchase machinery & tools from us, you will get perfect quality products with competitive price directly & DEFINITELY, it will save your time, save your cost and guard against the fault & fraud!
Why wait any longer to solve your glass making machinery needs?
Contact one of our English speaking sales professionals today.
S&K Glass Machinery Limited
