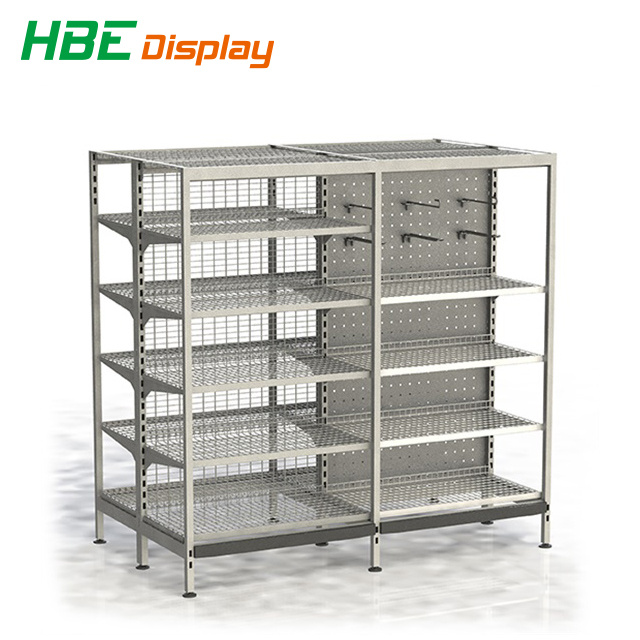

Australian Outrigger Frame Display Shelf with Sloping Shelves

Prod Model:	HBE-SR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Surface Treatment:	Hammer Tone
Design:	OEM Avilable
Color:	Customized
Guarantee:	3 Year
Material:	Steel
Style:	Back Net Style
Side Number:	Single Sided
Weight:	Heavy Weight
Rotary:	Fixed
Usage:	Convenient Store
Customized:	Customized

Product Description

Australian outrigger frame display shelf with sloping adjustable shelves

Specification
4. Bracket Thickness Options:

2.5/3.0mm

1Post or upright size	40*80		30*60
2Side(oneside or inside	One side	Double side	One side	Double side
3Specification	1200*550*2000	1200*1100*2000	1200*450*1800	1200*900*1800
4Thickness of board	0.6mm	0.6mm	0.5mm	0.5mm
5Thickness of post or upright	1.8mm	1.8mm	1.35mm	1.35mm
6Thickness of back panel	0.4mm	0.4mm	0.4 mm	0.4mm
7Capacity(each layer)	120-150kg	150-200kg	100-120kg	120-150kg
8Quantity of layers	5	5 each side	5	5 each side
9Cubic meter	0.088	0.163	0.068	0.129
10weight	53.14kg	92.95kg	36.08kg	65.41kg
color	Wight or others	Wight or others	Wight or others	Wight or others



Post or upright size	40*60		30*70
Side(oneside or inside	One side	Double side	One side	Double side
Specification	1200*550*2000	1200*1100*2000	1200*450*1800	1200*900*1800
Thickness of board	0.6mm	0.6mm	0.5mm	0.5mm
Thickness of post or upright	1.8mm	1.8mm	1.35mm	1.35mm
Thickness of back panel	0.4mm	0.4mm	0.4 mm	0.4mm
Capacity(each layer)	100-150kg	100-200kg	100-120kg	120-150kg
Quantity of layers	5	5 each side	5	5 each side
Cubic meter	0.088	0.163	0.068	0.129
weight	49.14kg	88.95kg	39.08kg	68.41kg
color	Wight or others	Wight or others	Wight or others	Wight or others




1. Heavy-duty capacity,Beautiful apperance,Suitable struction design.
2. Struction details:
* Upright:30*60*(2.0-2.5mm) / 30*80*(2.0-2.5mm)
* Thickness of shelf:0.7-1.0mm
* Thickness of back panel:0.5-1.0mm (plain or perforated)
* Thickness of bracket:2.0-3.0mm
3. Surface treatment: phosphate rust - epoxy polyester coating proces: Akzo / Dupnot Brand
4.  Layer board can be adjusted freely,Base foot assemble with the upright
5. Bearing capacity: 120-150kg per shelf
6. Size:
* Length:900/1000/1200mm
* Width:300/350/400/450/500/550/600mm
* Hight::1200/1500/1800/2000/2200/2500/2800/3000mm

Susperiority
1. Corrosion resistand,rust proof.The naturally-formed oxide layer can prevent metal from oxidization
      and have good acid alkali resistance.
2. Different size and design available,Welcome your own drawing.
3. Produce ability: 30*40GP per month
4. Deliver time 15 days per container

Features:
1) Easy to assemble and disassemble;
2) Available with light, medium, and heavy carrying capacities;
3) High quality and good appearance;
4) The most commonly used in all supermarket systems;
5) Each layer carrying up to 30-150kg.
6) The reliable and efficient service before and after deal.
