| Price: | US $ 230/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | FH-E0031 |
|---|---|
| Welding Standard: | Aws D1.1 |
| Finished: | Galvanized |

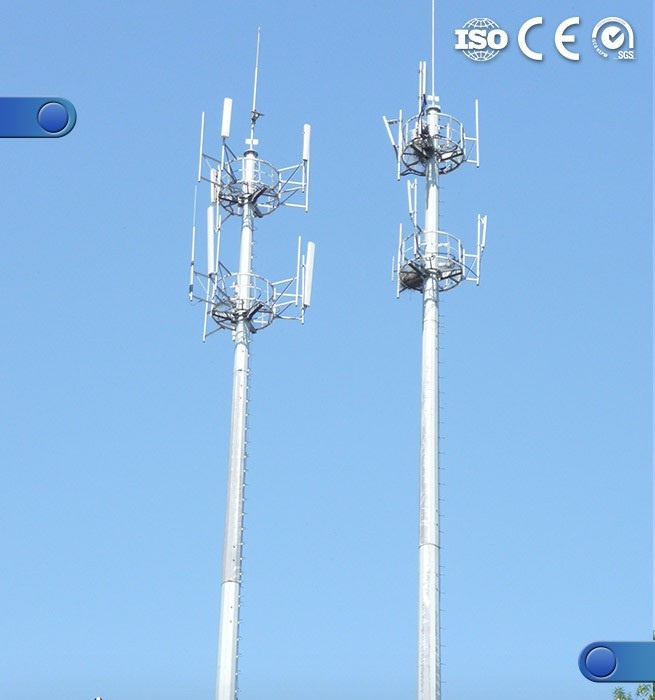

| Structure: | Single Tube Tower |
| Shape: | Vertical Type |
| Standard: | Nonstandard |
| Material: | Steel Pipe Tower |
| Belly Bar Shape: | Single-Oblique Rod |
| Certification: | CE |
| Condition: | New |
Main features as following:
Polygonal Faces/Round Faces
Connection: Flange Connection / Overlap Connection
Material: Q345B & Q235
Details: Can be designed as per customer's requirements
Delivery Lead Time: 25 days after receiving deposit
Coating: Hot Dip Galvanization minimum 86mic .
Working&Resting Platform Quantity:1-3PCS
Antenna Support: 3-18 PCS
Microwave Dish: 3-18 PCS
Minimum order quantity: 1set
Lifetime: Minimum 25 years
Parts: All necessary parts for installation and connection
Others: As per customer's request and drawings .
Height | 5m ~80 m |
Suit for | Airport ,seaport,plaza,stadium ,square,highway,street way etc |
Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical
|
Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-3 |
Torlance of dimenstion | +- 2% |
Design detail | Cable and Ladder inside or outside as request or design
|
Working &Resting Platform | 1~3 pcs at the top or in the middle |
Antenna Support | 3-18 PCS
|
Microwave Dish | 3-18 PCS
|
Design Load in Kg | 300~ 1000 Kg appliced to 50cm from the to pole |
Marks | Nane palte through rivert or glue ,engrave ,emboss as per customer requirement |
Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
|
Joint of Poles | Insert mode,innerflange mode,face to face joint mode .
|
Design of pole | Against earthquake of 8 grade |
Wind Speed | 5-300 KM/H
|
Minimum yield strength | 355 mpa |
Minimum ultimate tensile strength | 490 mpa |
Max ultimate tensile strength | 620 mpa |
Standard | ISO 9001 |
Length of per section | Within 14m once forming without slip joint |
Welding | We has past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
|
Thickness | 1 mm to 30 mm |
Production Process | Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
Packages | Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data. |
