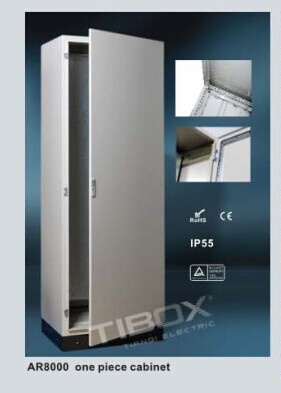

Ar8000 Metal Waterproof One Piece Floor Stand Cabinet

Ar8000 Metal Waterproof One Piece Floor Stand Cabinet
Price: US $ 191.62-582.22/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: AR8
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Steel
Structure: Rack
Type: Resistance Box, Meter Box

Product Description

Packaging & Delivery
Packaging Detail: Carton, wood pallets, 40HQ container or 20GP container...
Delivery Detail: In 30days after confirmed the order(depend on your quantity...)
Specifications
1. IP55
2. Material: Cold steel rolling sheet
3. Impact resistance IK10
4. Color: RAL7032 or RAL7035
5. Single door or double door

Product Description
Material: Cold steel rolling sheet
Protection ratings: IP55
Impact resistance IK10
Color: RAL7032 or RAL7035
Paint finish expoxy polyester powder coating textured finish.
Thickness of the sheet steel: Front door: 2.0mm/rear panel: 1.5mm/enclosure body: 1.5mm/top cover & bottom cable plate: 1.5mm/galvanised mounting plate: 2.5mm
Supply include:
AR8 structur enclosure body, door complete with MS821 locking system and hinges, rear panel, top cover, bottom with removable cable entry, 4 lifting eyebolts.
  W H D(mm) Model NO. OF DOOR
1 1000X1000X300 AR8 1010/3D 2
2 800X1200X300 AR8 128/3 1
3 1000X1200X300 AR8 1210/3D 2
4 1200X1200X400 AR8 1212/4D 2
5 600X1400X300 AR8 146/3 1
6 600X1400X400 AR8 146/4 1
7 800X1400X300 AR8 148/3 1
8 800X1400X400 AR8 148/4 1
9 1000X1400X400 AR8 1410/4D 2
10 1200X1400X400 AR8 1412/4D 2
11 600X1600X300 AR8 166/3 1
12 600X1600X300 AR8 166/3 1
13 600X1600X400 AR8 166/4 1
14 800X1600X300 AR8 168/3 1
15 800X1600X400 AR8 168/4 1
Zhejiang tianqi electric Co., Ltd., with 10 years experience in electrical industry, is one of the leading manufacturer of distribution boxes and panel meters in China. Founded in China 1998, located in the beautiful land scape of the largest China bamboo sea in anji economic development zone which place is in the north of zhejiang, covers an area of 100, 000 square meters and has 500 employees.

T&j's product range consists of wall mounting enclosures, floor standing cabinets, stainless steel enclosures, plastic enclosures, terminal boxes, power distribution cabinets, floor standing modular cabinets, console systems, analog panel meters, digital panel meter, DIN rail panel meter, current transformer, shunt.

We also got the quality system certificate of CE, rosh, IP65 and ISO 9002 for our products. It has established the good commercial relations with America, west-europeam, east-Asia, Africa etc.

All kinds of electronics products and its accessories will be designed and manufactured according to the customer' s special requirement.

Sticking to the policy as "no quality, no future!
