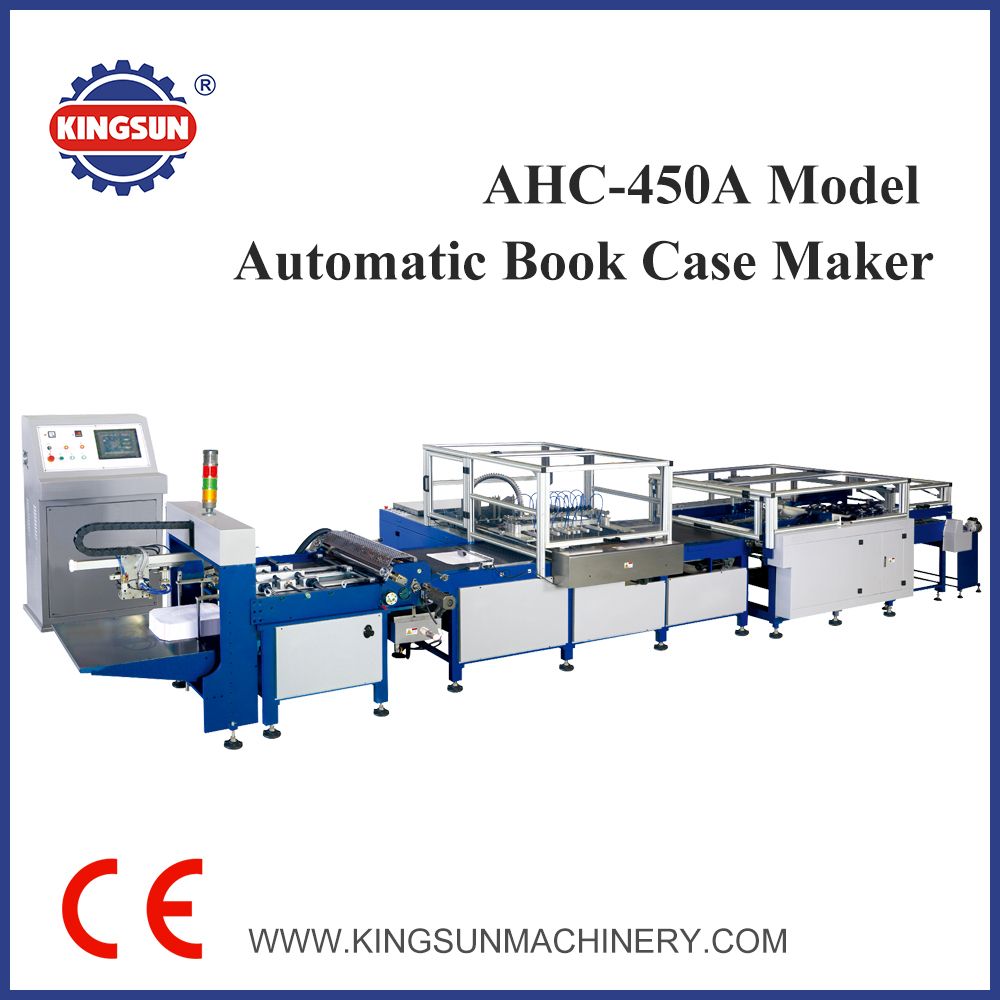

Ahc-450A Model Automatic Book Case Maker
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
AHC-450A / AHC-540A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic Grade: |
Automatic |
| Gluing Mode: |
Automatic Paper Paste Gluing Machine |
| Packaging Material: |
Paper |
| Glue Type: |
Hot Melt Adhesive |
| Driven Type: |
Electric |
| Application: |
Hard Cover or Box |
| Packaging Type: |
Wooden Cases |
Product Description
This model automatic book case maker machine, or automatic hard cover making machine, is specially designed for making hard book cover for books, dictionary, documents folder, lever arch file, special box cover etc. It is most reliable model hard cover making machine for board converting into cover. It can greatly improve the production efficiency for hard cover making compare with traditional way.
Main technical specifications:| Model | AHC-450A |
| Paper size | Min: 120 x 230mm Max:480 x 830mm |
| Paper thickness | 100-200g/m2 |
| Cardboard thickness | 1-3mm |
| Finished products size | Min:100 x 200mm Max:450 x 800mm |
| Min spine width | 10mm |
| Flap paper folding size | 10-18mm |
| Max quantity of cardboard array | 6 pieces |
| Precision | ±0.50mm |
| Production speed | ≤25 sheets/min |
| Motors power | 5KW/380V,50Hz |
| Heating power | 6KW/380V,50Hz |
| Machine weight | 3200kg |
| Machine dimension | L8300 x W2200 x H1660mm |
This hard cover making machine mainly for making lever arch file folder, hard cover for book, toy or calender or rigid box etc.
We also have other different size model for hard cover making.
We have the pleasure of introducing ourselves to you as a professional manufacturer and exporter specializing in various printing and packaging machinery & materials, and machine parts in China for more than 16 years,
We have our own production bases to produce printing and packaging machinery, and materials etc. We supply industrial machine from single machine to turn key projects, from existing products to producing machine according to buyer's drawing and requirements. Particularly it is worth mentioning that we have a professional team who has been in printing and packaging industry for many years, this makes us in such an advantage that we can easily supply extensive machines for printing and packaging industry at very attractive prices. As it maybe not easy to contact and communicate with different factories, furthermore, you are difficult to know the reputation and credit of such factories, most of them are not authorized for export directly. Even for those who have approved to a direct export, we can do better in prices and services. All our products are under quality warranty and our professional staff will provide best service for you. Through our unremitting efforts in developing overseas market, we have won good reputation among customers worldwide. Therefore lots of manufacturers appointed us to be their sole export representative, we can get best price and prompt service to our customers.
We feel confident you will agree after first cooperation, that our products are both good in quality and competitive in price.
Our printing and packaging machines including:
1. Series semi or fully automatic die cutting and creasing machines, automatic hot foil stamping machine
2. Automatic hard cover making machines or automatic case makers, rigid gift box machines
3. Series slitter rewinders, paper roll sheet cutting machine
4. Complete lines for making plastic bag: Rotogravure printing machine, dry laminating machine, various bag making machine, film blowing machine, flexographic press.
5. Multi-function coating machine for making various adhesive tapes and special materials.
6. Label making machinery such as flexo printing machine, label die cutting machine, label hot stamping machine, label inspection machine etc.
7. Automatic filling, capping, labelling machines.
8. Screen printing machines, hydraulic laminating machine, UV coating machine
9. Strapping machine, vacuum packaging machine, Auto-carton sealer, heat shrink packing machine, desktop vacuum packaging machine, pad printing machine, hand film sealer, pallet stretch film shrink wrapper.
10. Paper core or paper tube making machines
11. Paper cup, paper bowl forming machines, cheese box forming machine.
12. Machine parts such as rubber roller, rotogravure printing cylinder, tension controller, colour register system, still picturing video system, air shaft, EPC, LPC, magnetic powder clutch and brake, meter counter, electric shock device, viscosity controller etc.
13. Plastic thermoforing machine
14. Paper cutter, automatic folder gluer, embossing machine, automatic flute laminating machine etc. And other postpress equipment.
15. Printing&packaging materials.
16. Office Equipments: Paper shredder, paper cutter, laminator, binding machine, puncher, stapler and stationery.
17. Corrugated carton making machines.
18. Window & door assembling machines(AL, PVC).
Please don't have any hesitation to contact us for more information.
We are looking forward to cooperating with friends from all around the world!
