| Prod Model: |
AG-LT002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
Ce&ISO Approved |
| MOQ: |
1 |
| Sample: |
Availabl |
| OEM: |
Available |
| Factory: |
2 Hours Away From Shanghai |
| Warranty: |
One Year |
| Advantage: |
Cheap&Hot-Sell |
| Service: |
Lifetime |
| Size: |
Dlameter of Lighthead(Cm) 78/78 |
| Type: |
Operating Light |
| Certification: |
ISO13485 |
| Kind: |
Hospital Furniture |
| Group: |
All |
Product Description

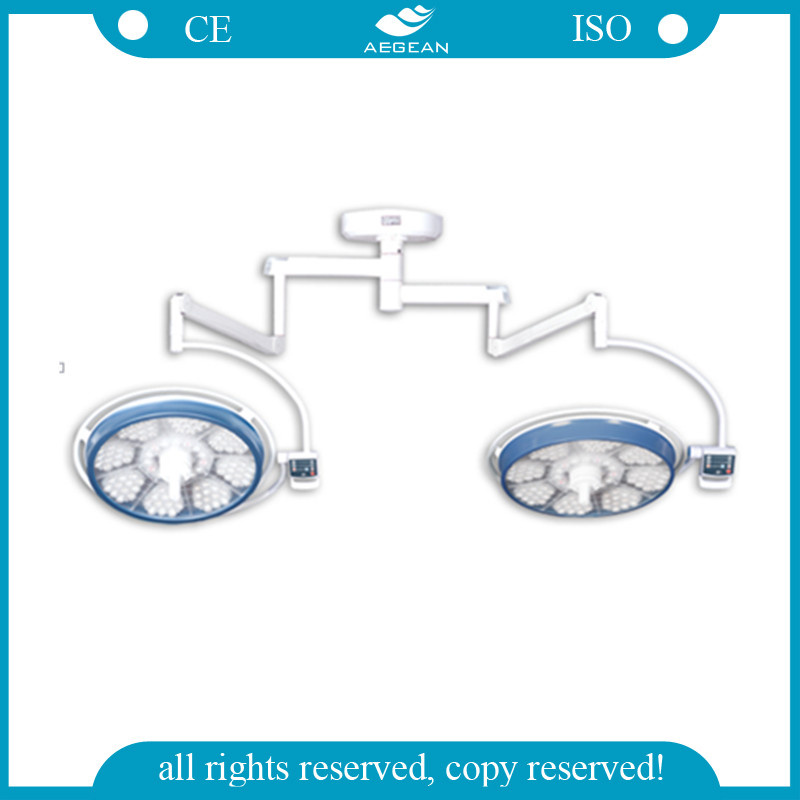

AG-LT001 series is fully enclosed streamlined dual-lamp body structure, fully meeting the high standards of disinfection and laminar flow in today's operating room.
Using CAD / CAM technology to create overall reflection optical system, Adopting color temperature compensation technology to enhance color reproduction, more suitable for brain surgery, thoracic surgery and other complex large lighting operations.
The type is movable with stand.
It is mounted type and has monitor, the product can be based on user's demand matching video surveillance system for image
3), Specifications
Characteristics
Content Reflector diameter 700mm Reflector diameter 500mm
Center Light intensity 120klx~140klx 80klx~120klx
Spot diameter(d10) ≥ 180mm ≥ 160mm
Column depth ≥ 700mm ≥ 600mm
Color temperature 4500± 500K
Increasing Temperature ≤ 10
Color rendering Index (CRI) ≥ 92
Switch between main and assistant bulb Automatic
Illumination adjustment:
8-level sequentially
Bulb watt 150W
Total radiated energy Ee where the illuminance reaches max level: ≤ 500w/m2
Mechanical characteristics
Spring arm around fixed holder ≥ 360°
Bracket around spring arm ≥ 360°
Rotation of horizontal bracket clockwise ≥ 140° , anti-clockwise ≥ 140°
Lamp head around horizontal bracket clockwise ≥ 100° , anti-clockwise≥ 100°
Up and down of balancing arm:
Up≥ 40° Down ≥ 40°
Camera system specification
1. Mounted in 2 million pixel camera system, optical zoom ≥ 22 times
2. Camera has versatility, removable interchangeable; Auto-focus, according to rotate through the controller RC Lens and video zoom in and out
3. With automatic and manual focus feature: Auto white balance function provides crisp, clear and stable images
4. Video format: PLA. Horizontal resolution≥ 460 line
5. Light sensitivity≤ 3Lux
6. The camera's resolution750× 580
7. Equipped with 1 set of dedicated medical grade LCD display system; ≥ 19-Inch dedicated LCD monitor, 1280× 1024 resolution, it can display four different formats of images
| Products | operation lamp |
| Modle | AG-LT002 |
| Description | Dlameter of lighthead(cm) 78/78 llumination at 1m(lux) 80000~160000 80000~160000
L ight field diameter at 1m (cm) 10-28
Diameter of spot D50(mm) 180±15 100±15
L1+L2 Depth of illumination(cm) 130 |
Company information
Jiangsu Aegean Technology Co., Ltd. is located in Zhangjiagang city with beautiful environment and convenient transportation. Our company is a technical manufacturing enterprise of medical equipment, integrating the research and development, manufacturing, marketing and exporting. At the same time we have a technical foreign trade team. Our products include different kinds of manual and electrical hospital beds, stretchers, operation tables, obstetric tables, accompany chairs, transfusion-chairs, resuscitation carts and other hospital furniture. Our products have been sold very well in the USA, Southeast Asia, India, the European Union, South Africa and other regions, and win a very good reputation at home and abroad.
Enterprise Vision
To be the best hospital furnitures supplier in the world!
Enterprise Idealism
Clients first, Staff second and Shareholders third.
Our advantages for your business:
1)24 years accountable manufacturer, 500workers with high efficiency and high output
2)100% new material and strict Inspection and Quality
3)CE,ISO9001,SGS,FSC Certificates 4)Every day new repeat orders
5)Exported to more than 500 countries
6)Visit VIP Customers regularly
FAQ
1.What are the main products?
AEGEAN main product are hospital beds ,operating table ,trollys&stretchers.
2.Why to trust Aegean Technology?
1.All of our products have CE ISO approved with high quality .
2.our products have exported to 149 countries up to now .
3.When do you start?
We have concentrated on producing hospital furniture fir 23 years,
2007 began to develop to world market.
4.Where are you?
Zhangjiagang city ,2hourform shanghai.
5.what's your advantage?
nCredibility foundation ,quality conquers.
We are persisting to develop new products,strict admnistrative system and
sfter-sale service.
Welcome to contact us
Jiangsu Aegean Technology Co., Ltd. Is located in Zhang Jiagang city, around 1 hour from Shanghai, whose environment is tidy and neat, traffic is convenient. Our company is a technical manufacturing enterprise which goes in for medical equipment that integrates with research and development, manufacturing, marketing and exporting, at the same time we have professional foreign trade team. Specially, Our R & D department owns 20 years' experience.
Our products include 3 series: Hospital furniture (electric hospital bed, manual hospital bed, accompany chair, transfusion chair, waiting chair ect. ), ABS medical trolley (ABS emergency trolley, ABS anesthesia trolley, ABS medicine trolley ect. ), Surgical & Gynecology equipment(Operating table, Obstetric table, Gynecology chair ect. ).
You can see the full equipment of hospital in our big bright showroom! We are always trying our best to be an integrated company which can make the purchasing of our global customers high-efficient, that you can get the full medical equipment for hospital just in our company.
Our products have been sold very well in the USA, Colombia, United Kingdom, Spain, Dubai, Saudi Arabia, India, Malaysia, South Africa and other countries, and win a very good reputation and many return customers at home and aboard.
In our opinion, you can know Jiangsu Aegean Technology Co., Ltd. Better by the following questions:
1. What is our core value?
Customer first (customers are our benefactors)
Teamwork (share together, partake together, ordinary people do extraordinary things)
Embrace the change (welcome the change, be brave in the innovation)
Credibility and integrity (honesty and integrity, words and actions are magnanimous)
Passion (be optimistic and upbeat, never give up)
Respect work (professionalism, seek for grater perfection)
2. Where are our competitive advantages?
Credibility foundation, quality conquers. We are persisting to develop new products, young professional team, strict administrative system and star after-sale service, all that we do is based on customer-focused.
3. What is the definition of our logo?
Three dolphins are on behalf of the customers, peers and us respectively. In the blue ocean, we chase each other, encourage each other to make we all swim further and further! Moral: Only competition and win-win will allow our company to be dynamic, to be better and better in the sea of market.
Aegean is the sea of Greece, we hope our company will be as famous as Aegean, owing many extraordinary stories.
Welcome new and old customers come to our company for business corporation, create happy tomorrow hand in hand.
