| Prod Model: |
FY012 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Load Capacity: |
6000 N |
| Input Voltage: |
24V |
| Stroke: |
50~1000mm Optional |
| Protection Class: |
IP54 |
| Mini Install Dimension: |
S+175mm |
| Limit Switches: |
Inner |
| Warranty: |
2 Years |
| Type Of Duty: |
S2-10min |
| Usage: |
Furniture Equipment,Sofa |
| Color: |
Gray or Black |
| Material: |
Metal |
| Folded: |
Unfolded |
| Certification: |
CE,RoHS,SGS |
Product Description
Input Voltage: 24 v DC
Load Capacity: 6000N
Max Speed: 4MM/S(4000N), 9mm/s(2000N)
Stroke: 0~1000mm(option)
Type of duty: S2-10min
Limit switches: Inner
Operation Temperature: -26--65 centigrade
Protection Class: IP54
Certification: CE/EMC+LVD, RoHS
Type: Furniture part
Material: Metal and plastic
Use: Traction bed
Place of origin: Jiangsu, China(mainland)
Function: Driving
Shape: Linear
Power: DC
More inforamtion

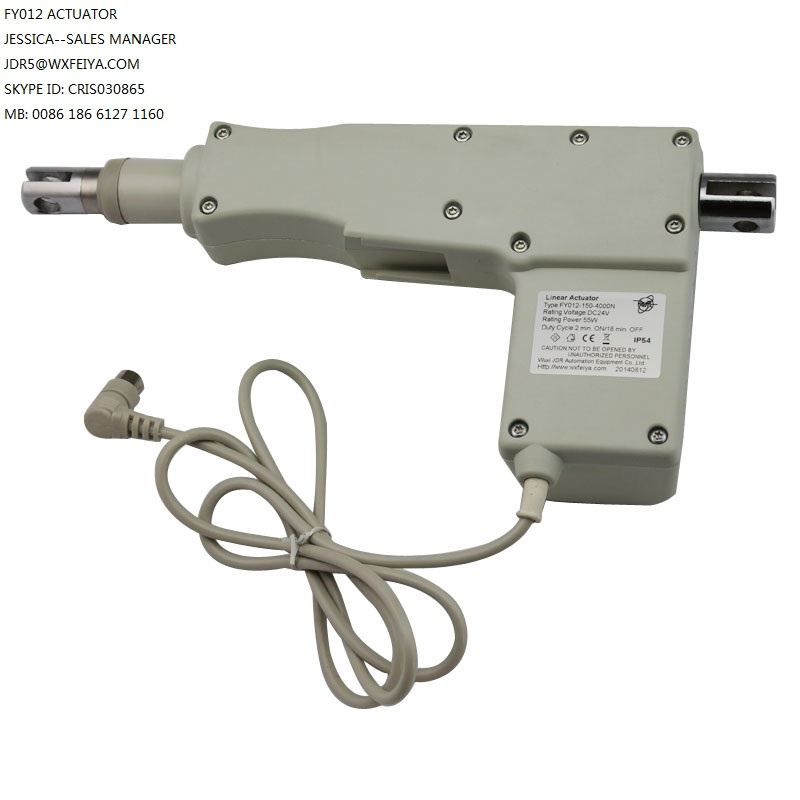

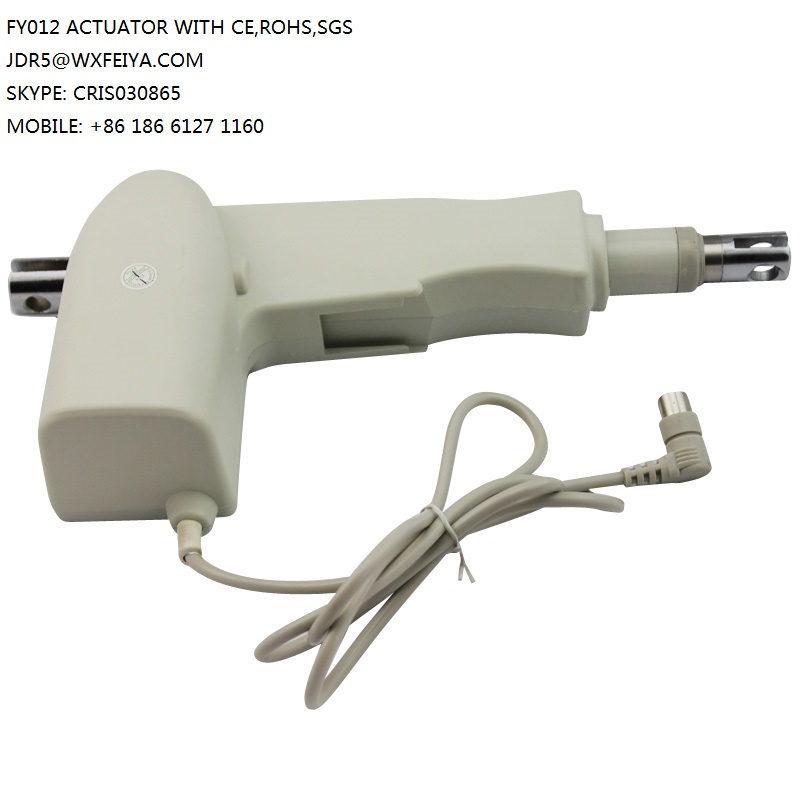

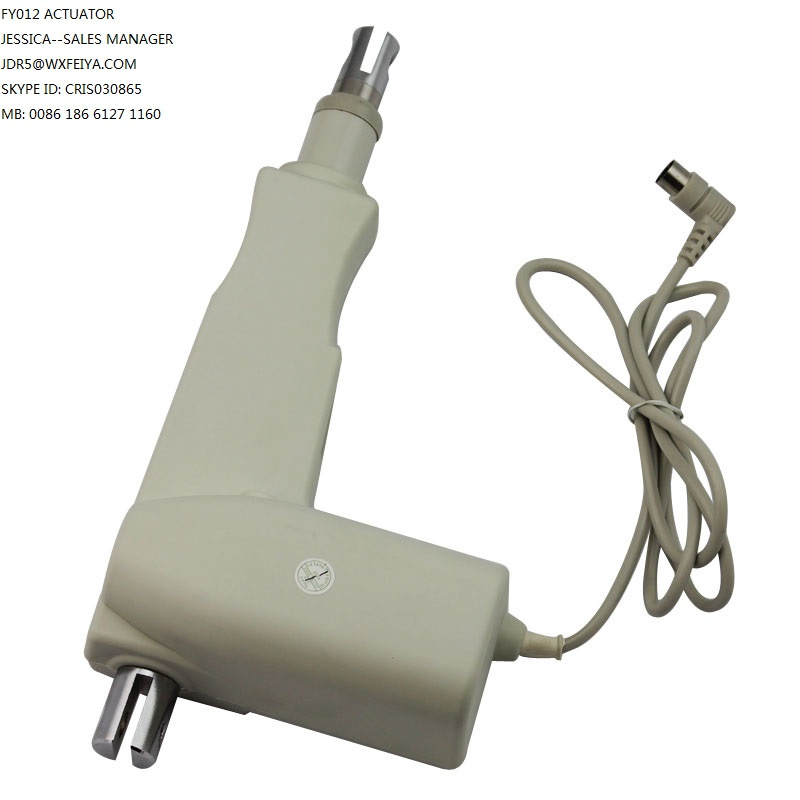

1) 24VDC permanent magnet motor
2) Thrust up to 6000N in push, and up to 4000 N in pull
3) Elegant and compact design with small instanllation dimensions
4) Built-in limit switches ( not adjustable after leaving factory )
5) Aluminium or zinc outer tube / inner tube
6) Electric chromate steel piston rod eye with slot
7) High-strength plastic housing protects motor and gears
8) Standard protection class: IP 54
9) Scratch and wear-resistant power painting
10) Noise level < 50 dB
11) Warranty: Two years
12) Duty cycle: 10%, or 2 munutes continous working followed by 18 minutes not in use
| Name: | Linear Actuator |
| Model: | FY012 |
| Usage: | Electric Nursing Bed, Electric Hospital Bed, Personal Care Bed, other Application use |
| Input Voltage: | 24v DC |
| Load Capacity: | 2000N, 4000N |
| Free Load Speed: | 9mm/s, 4mm/s |
| Standard Stroke: | 50 mm --- 1000mm (Optional) |
| Installation Dimension: | S + 175mm |
| Type of Duty: | S2 -- 10 min (2 minutes work, 18 minutes rest) |
| Limit Switch: | Builtin / Inner (can not be adjust after left factory) |
| Work Temp.: | -26 to 65 centigrade |
| Protection Grade: | IP54 |
| Certificate: | CE / EMC + LVD, RoHS |

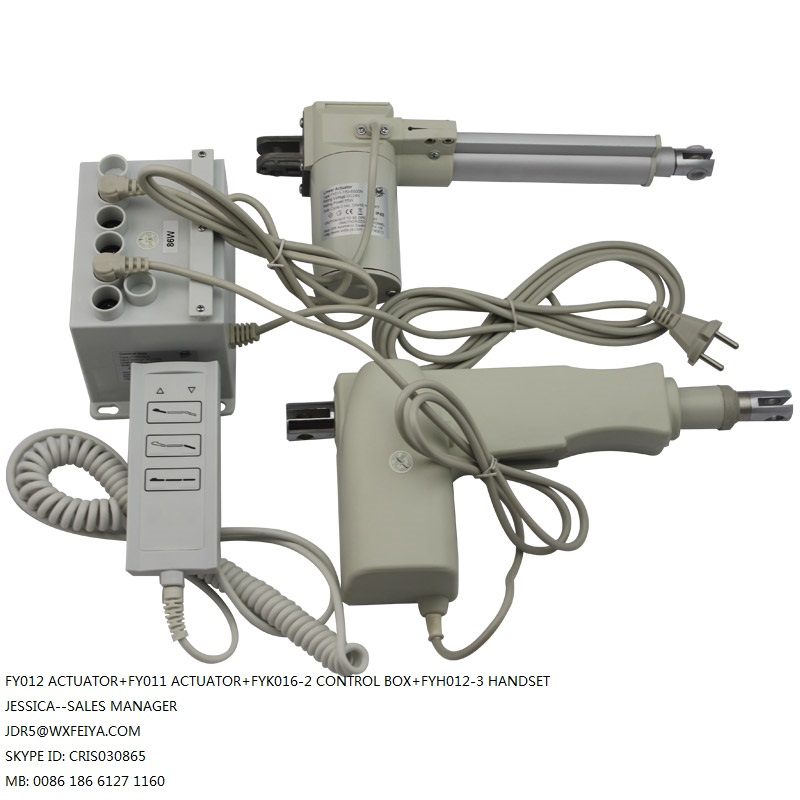

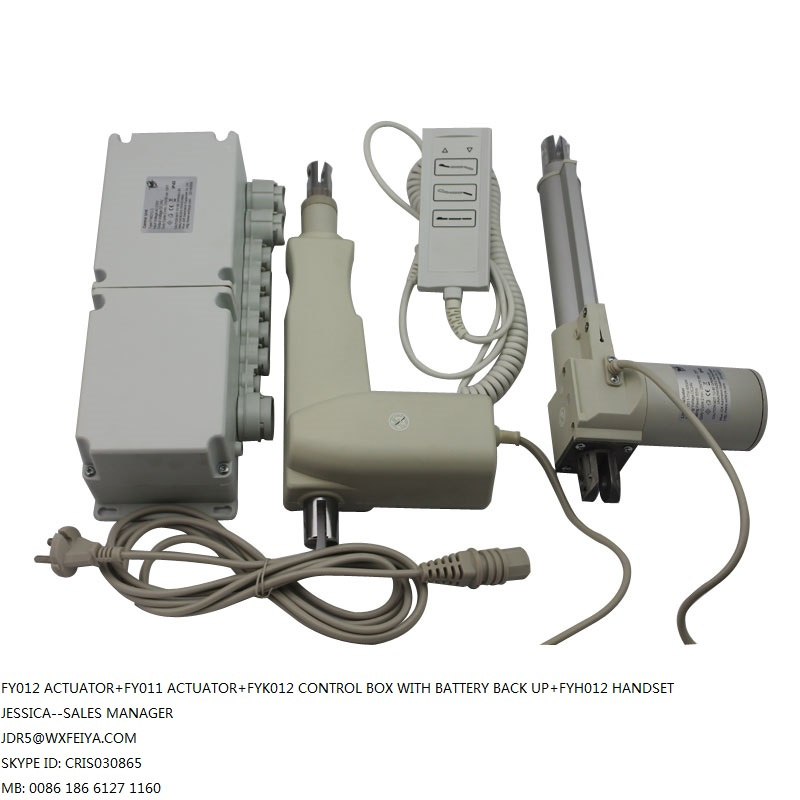

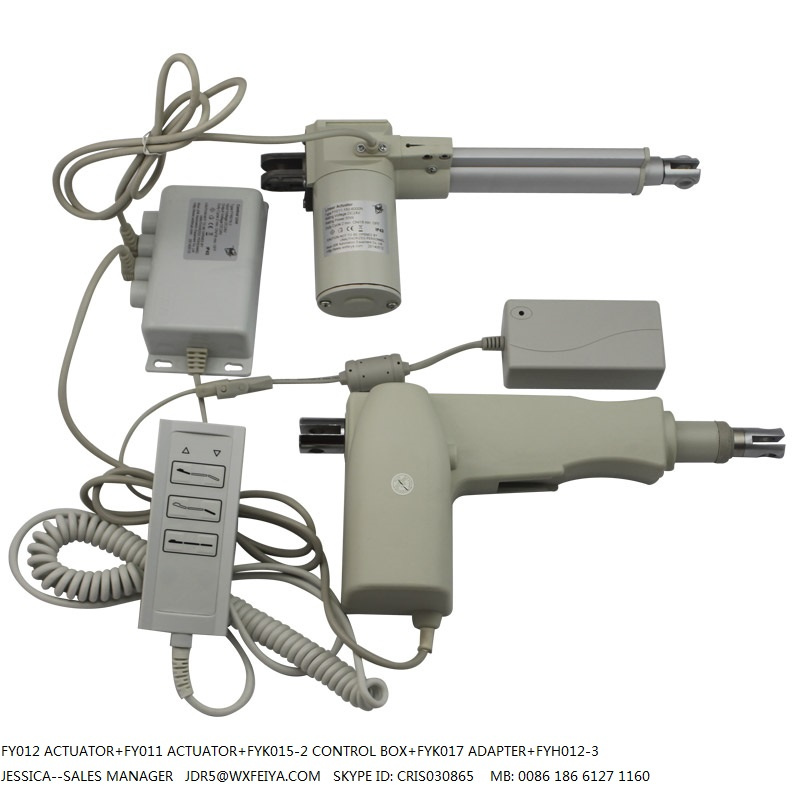

| Control Box Used: | Control 1 Linear Actuator: FYK011-1, FYK012-1, FYK015-1, FYK016-1, FYK017A |
| | Control 2 Linear Actuators: FYK011-2, FYK012-2, FYK015-2, FYK016-2 |
| | Control 3 Linear Actuators: FYK011-3, FYK012-3, FYK016-3 |
| | Control 4 Linear Actuators: FYK012-4, FYK016-4 |
| | Control 5 Linear Actuators: FYK012-5, FYK016-5 |
| | Control 6 Linear Actuators: FYK016-6 |
| Handset Used: | All FYH Series Handset, Pls contact us for detail pictures. |
High quality of electric linear actuator to worldwide customers. We are professional manufacturer in Electric Linear Actuator and Electric Linear Motor.
Electric linear actuator is widely used in Adjustable beds, Medical beds, Wheel chairs, Patient hoists, Table height adjustments, Industry mechanical instruments, furniture, home beds, office tables, massage equipment, sporting equipments and so on and so on.
Specification of OurElectric linear actuator:
Max. Thrust: 4000N, 6000N, 8000N
Voltage:24VDC or 12VDC, Motor Drive
Standard stroke: 100 / 150 / 200 / 250 / 300 / 350 / 400 mm, special stroke areavailable according to customer' requirement.
Duty cycle:10%
Ambient temperature -26°C to +65°C
Standard protection class:IP 43
Built-in integral limit switch, not adjustable after leaving factory
Low noise design, dB<48(A); The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded.
Overload protection
CE Certificated
Availability in Black, White and Gray housing
