| Prod Model: |
PBT-15A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Amplification Type: |
Active |
| Speaker Material: |
Plastic |
| Usage: |
Portable Player |
| Structure: |
Closed Enclosure |
| SNR: |
91-100dB |
Product Description

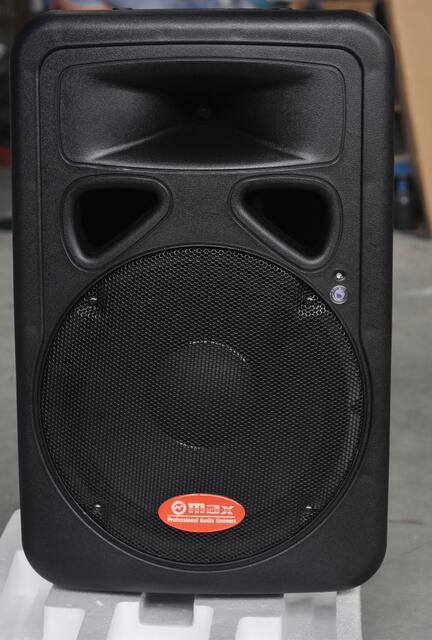

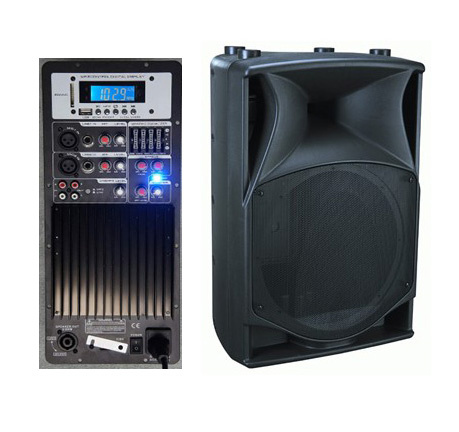

Active 15" PA speaker box/Plastic speaker/cabinet specification:
System type: Active 15ins, 2-way
Sensitivity (dB 1W at 1m): 99dB
System impedance: 4 or 8ohm
Frequency response: ± 3dB, 45 to 18kHz
LF driver:
LF driver size: 380mm/15-inch, 4 or 8ohm
LF driver magnet size: 60oz
LF voice coil size: 76.2mm/3-inch
HF section:
HF voice coil size: 44mm/1.75-inch, 8ohm
HF exit size: (mm/inches): 25mm/1 inch
HF type: Compression driver
HF diaphragm material: Titanium
Crossover section:
Crossover frequency/filter: 2.3kHz, 24dB per octave Linkwitz-Riley
HF driver protection: Independent LF and HF limiters
Amplifier power:
Continuous RMS: 200W
Power on indicator: LED red/blue
Especial functions: SD/USB input, LCD screen, radio, mic input, remote control, speaker output
Established in 2008, Ningbo ASM PRO & Car Audio Speakers manufacturer, has become one of the largest companies specialized in Subwoofer, Car speakers, Ceiling speakers, Boom box, professional sound systems, and other audio accessories.
As an audio equipment manufacturer with an area of 1500sq. M., 6 production lines(2 lines for car audio systems, 2 lines for professional audio systems, 2 lines for relevant audio accessories), over 100 employees, and the certificate of ISO9001: 2000 system, we still keeps specialized in R&D, sales, and OEM/ODM services. 80-95% of our products export to overseas markets, such as the United States, Europe, Middle-east, and South America etc.
The past 10 years was a glorious time for ASM, but ASM will certainly makes greater achievements in the future international market competition. ASM promises to offer his best services to his customers forever.
Welcome for your order.
